3.112 FAQ-654 How to fit multiple datasets?

Last Update: 7/27/2018

Do you have multiple datasets that you would like to fit simultaneously? With Origin, you can fit each dataset separately and output results in separate reports or in a consolidated report. Alternately, you can perform global fitting with shared parameters; or perform a concatenated fit which combines replicate data into a single dataset prior to fitting.

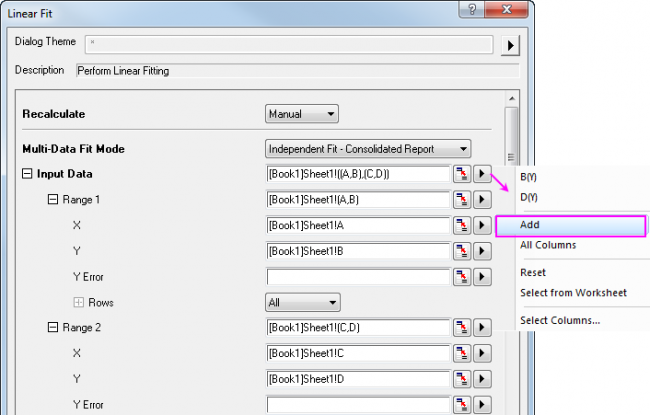

First you can click the triangle button next to Input Data to add multiple datasets to fitting dialog.


Multi-Data Fit Mode control is availble for switching between Concatenate/Independent fitting for multiple datasets. There are three options for the multiple datasets fit.

  • Independent-Consolidated Report
    The input datasets are fitted separately. The reports are consolidated into one sheet.
  • Independent-Separate Report
    The input datasets are fitted separately. The reports are output to different worksheets.
  • Concatenate
    All input datasets are concatenated and fitted as one curve.
  • Global Fit (Available only in Nonlinear Curve Fit)
    Simultaneous perform curve fitting on multiple datasets. Because datasets remain distinct, they may or may not "share" parameter values during the fit process. When a parameter is shared, a single parameter value is calculated for all datasets; When a parameter is not shared, a separate parameter value is calculated for each dataset.


A further alternative is to use Mathematics:Average Multiple Curves to produce a single new dependent dataset and fit this dataset. The result will be one set of parameters.


The table below discuss the different cases of fitting for multiple datasets

Analysis: Fit Linear Analysis: Fit Linear with X Error Analysis: Polynomial Fit Analysis: Nonlinear Curve Fit Gadget: Quick Fit
Fit separately & at once Multi-Data Fit Mode Multi-Data Fit Mode Multi-Data Fit Mode Multi-Data Fit Mode New Output for All Layers/Curves
Fit to Average of all datasets Mathematics: Average Multiple Curves Mathematics: Average Multiple Curves Mathematics: Average Multiple Curves Mathematics: Average Multiple Curves Mathematics: Average Multiple Curves
One Fit to all datasets by combing all into a single dataset Multi-Data Fit Mode(Concatenate) Multi-Data Fit Mode(Concatenate) Multi-Data Fit Mode(Concatenate) Multi-Data Fit Mode(Concatenate) NO
One Fit to all datasets with shared parameter NO NO NO Multi-Data Fit Mode(Global Fit) NO

Keywords: multiple data, fitting, linear fit, nonlinear fit, linear fit with x error, polynomial fit, quick fit, concatenate fit, global fit, independent fit, consolidated report, average curve
