File Exchange > Stats >    Heat Map with Dendrogram

How to install and run
Author:
OriginLab Technical Support
Date Added:
7/24/2015
Last Update:
6/17/2026
Downloads (90 Days):
3289
Total Ratings:
112
File Size:
233 KB
Average Rating:
File Name:
HeatMapDen...am.opx
File Version:
2.31
Minimum Versions:
2025b (10.25)
License:
Free
Type:
App
Summary:

Perform hierarchical cluster analysis along columns and rows, and plot heat map with dendrogram (PRO Only)

Screen Shot and Video:
Description:

PURPOSE:
This tool can be used to:
1> Impute missing values, standardize data and perform log2 transform
2> Perform hierarchical cluster analysis along columns and rows
3> Plot heat map with dendrogram

INSTALLATION:

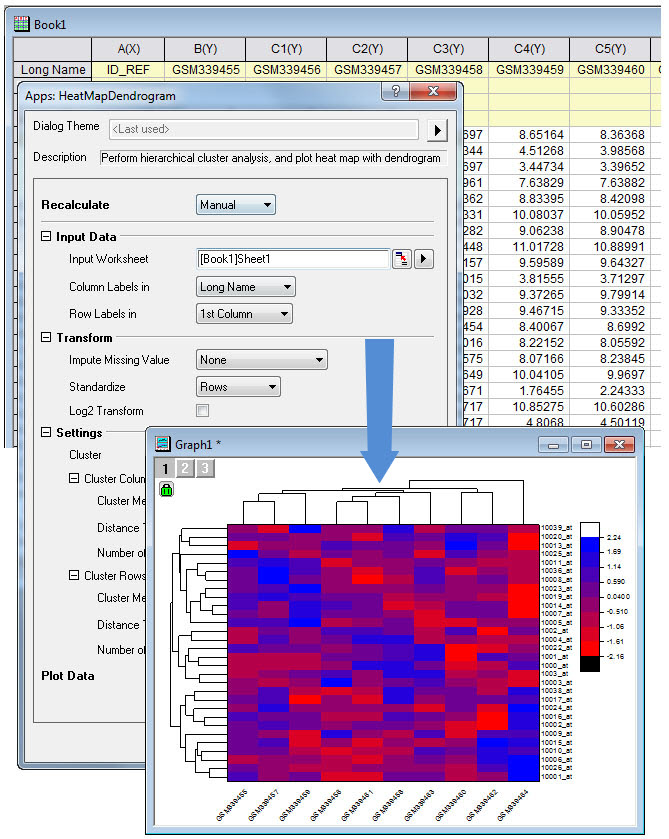

Download the file HeatMapDendrogram.opx, and then drag-and-drop onto the Origin workspace. An icon will appear in the Apps Gallery window.

Note: This tool requires OriginPro. In Origin 2020 and higher versions, right click on the branch of the dendrogram, you can choose Swap Subtrees in the context menu.

OPERATION:
With a worksheet active, click the icon to open the dialog.

The Settings group provides options for hierarchical cluster analysis along columns and rows. The dialog can also allow user to transform data before analysis.

Click the help button in the dialog to open the help file which includes an example and explanation of the dialog settings.

Updates:

v2.31 6/12/2026 Fixed a bug.
v2.29 12/1/2025 Fixed a bug.
v2.28 11/11/2025 Updated localization.
v2.26 7/3/2025 Updated localization.
v2.25 6/6/2025 Used new template and supported gap between cluster and side color.
v2.1 11/27/2024 Fixed a bug in Origin 2025.
v2.0 10/17/2019 Supported new graph type in Origin 2020.
v1.1 8/16/2018 Updated Chinese version's dialog.
