6.9 Exporting Worksheets and Matrices


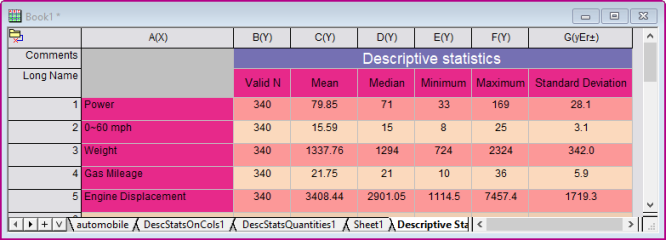

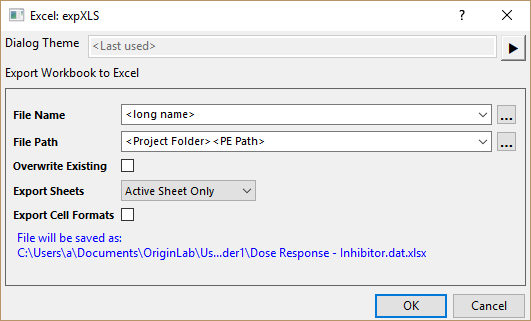

Origin worksheet data can be exported as the following three formats: ASCII, NI TDM (TDM, TDMS), Sound (WAV). And Origin worksheet can be exported as one-page PDF file, multi-page PDF file or image file.

Origin matrix data can be exported as the following two formats: ASCII and Image.

Origin Object File Type X-Function
Worksheet ASCII expASC
NI TDM (TDM, TDMS) expNITDM
Sound (WAV) expWAV
As Multipage PDF File expPDFw
As Image File expWks
As PDF File expWks
Export Graphs expGraph
Matrix ASCII expMatASC
Image expImage

Exporting worksheet data as ASCII file

The ASCII export is limited to data-only worksheets. Complex documents containing embedded information, such as report sheets, worksheets with embedded or linked graphs (including sparklines), cannot be fully exported to ASCII files. If the worksheet data to be exported has embedded images and graphs, those images and graphs will be ignored during exporting.

To export worksheet data as ASCII file:

  1. With the worksheet active, select Origin main menu File: Export: ASCII... to bring up the expASC dialog box.
  2. Specify the options for file type, path, separator, header, etc. in the dialog and click the OK button.

Key options for exporting worksheet data as ASCII file:

  • Support DAT, TXT and CSV file types. If CSV is selected, quotes are inserted, as needed, to protect cell contents.
  • Support export of selected data only. Note that selections may be non-contiguous.
  • Support a user-specified data separators (not available for the CSV file type).
  • Support export of header information.
  • Support full numeric precision and missing values.

Beginning with Origin 2018 SR0, hidden worksheet columns are not exported, by default. If you wish to include hidden columns when exporting, you can change the value of the system variable @UHC. Open the Script Window (Window: Script Window) and type the following:

@UHC = 1; // export hidden columns

This changes the export behavior within the current Origin session only. To make this change permanent, see FAQ-708 How do I permanently change the value of an "@" system variable?

Since Origin 2018b, the ending empty columns can be excluded when export the worksheet data, by check the Ignore Ending Empty Columns check box under the Options branch. Then, the export will ignore all empty columns after the last column with data, meta data not considered, and column with all missing values are considered empty.

Exporting worksheet data as National Instruments TDM file

Export worksheet data as National Instrument TDM file. This exportation is limited to data-only worksheets.

To export worksheet data as National Instruments TDM file:

  1. With the worksheet active, select File: Export: NI TDM (TDM, TDMS)... from the Origin main menu to bring up the expNITDM dialog box.
  2. Specify the file name and other options in the dialog. Then click the OK button.

Exporting worksheet data as Microsoft PCM wave file

To export worksheet data as Microsoft PCM wave file:

  1. With the worksheet active, select File: Export: Sound (WAV)... from the Origin main menu to bring up the expWAV dialog box.
  2. Specify the parameters in the dialog and click the OK button.

Key options for exporting worksheet data as wave file:

  • Support two channel modes: Mono and Stereo.
  • Support left channel and right channel when channel mode is Stereo.
  • Support partial exportation.

To specify the sampling intervals in the exported WAV file, you need to:

  1. Highlight the desired column, right click to bring up the context menu.
  2. Select Set Sampling Intervals to set the sampling intervals for this column.
  3. Export the worksheet data, and the sampling interval is stored in the WAV file.

To specify the quantization bit length, you need to:

  1. Highlight the column and select Format:Columns from top menu.
  2. Under the Options branch, set the Format as Numeric.
  3. Change the Data Type according to the following table to get the desired bit length:
Data Type Bit Length
Long(4) 32-bit
Short(2) 16-bit
Byte(1) 8-bit

Exporting worksheets as Multipage PDF file

Worksheets, including those that contain images or embedded/linked graphs, can be exported as PDF files.

Notes: You can export the worksheet or result sheet as either a one-page or multi-page PDF file.

Export worksheet as a multi-page PDF file:

  1. With the worksheet active, select File: Export: As Multipage PDF File... from the Origin main menu to bring up the Export Worksheet As Multipage PDF File dialog box.
  2. Specify the exporting worksheet(s), file name, path and other settings. And then click the OK button.
Key options for exporting worksheet as multi-page PDF file:
  • Support multi-worksheet exportation. Each worksheet will be exported as one PDF file.
  • Support user-defined PDF settings, such as color translation, line mode, fill mode, data compression, fonts, cover page, etc..
  • Support user-defined page settings, such as grids, header, footer, background color, frame, margin, etc..

Exporting worksheet as image file

Those worksheets containing images or embedded/linked graphs but not Origin report sheets, can be exported as an image file. The image types include: AI, BMP, CGM, DXF, EMF, EPS, GIF, JPG, PCX, PDF, PNG, PSD, TGA, TIF, WMF.

To export worksheet as image file:

  1. With the worksheet active, select File: Export: As Image File... from the Origin main menu to bring up the expWks dialog box.
  2. Specify the exporting worksheet(s), file name, path and other settings. And then click the OK button.

Key options for exporting worksheet as image file:

  • Support multiple worksheets exportation. Each worksheet is exported as one image.
  • Provide export settings such as export area, image size, etc..

Exporting worksheet as PDF File

To export worksheet as a PDF file:

  1. With the worksheet active, select File: Export: As PDF File... from the Origin main menu to bring up the expWks dialog box. Image Type is set as Portable Document Format (*.pdf).
  2. Specify the exporting worksheet(s), file name, path and other settings. And then click the OK button.

Exporting worksheet graphs using Export Graphs

To export workbook-contained graphs (floating, cell-inserted, graphs added as sheets) as image files:

  1. Choose File: Export: Export Graphs. This opens the Export Graphs dialog box.
  2. Use Select Graph(s) to choose which graphs to export or choose Specified and use the browse button to the right of the Graph Page box to choose graphs for export. Note that to export embedded graphs, including graphs added to books as sheets, you can choose All in Active Folder (include Embedded).
  3. Set other options as needed, including your export path and click OK.


A couple of things to note:

  • You cannot export graphs inserted into worksheet cells as image files (i.e. if you cannot double-click on a graph and pop open an editable graph, then the graph is inserted as an image).
  • File Name(s) for graphs added to the workbook as sheets will refer to the sheet name. Note that your sheets may not have a <long name>.

Exporting matrix data as ASCII file

The data stored in a matrix object can be exported as an ASCII file.

To export matrix data as ASCII file:

  1. With the matrix active, select File: Export: ASCII... from the Origin main menu to bring up the expMatASC dialog box.
  2. Specify the options for file type, path, separator, etc. in the dialog and click the OK button.

Key options for exporting matrix data as ASCII file:

  • Support DAT, TXT and CSV file types. If CSV is selected, quotes are inserted, as needed, to protect cell contents.
  • Support user-specified data separators (not available for the CSV file type).
  • Support full numeric precision, missing values and XY coordinates.

Exporting matrix object as image file

The matrix object of any data type can be exported as an image file. The data type might be converted to another data type according to the settings. The image types are including BMP, GIF, JPG, PCX, PNG, PSD, TGA and TIF.

To export matrix object as image file:

  1. With the matrix active, select File: Export: Image... from the Origin main menu to bring up the expImage dialog box.
  2. Specify the image type, name, DPI resolution, color depth, etc.. And then click the OK button.
