6.11 Import Filter Manager

Video Image.png See more related video:Import Filter

The Import Filters Manager, available in the Tools menu, provides an overview of all import filters. In this dialog, you can see filter names, categories, supported file types, and whether Origin supports drag-and-drop import for each file type. To modify filter settings with the iwfilter dialog, select a row and click Edit.

Introduction to Import Filters Manager-1.png

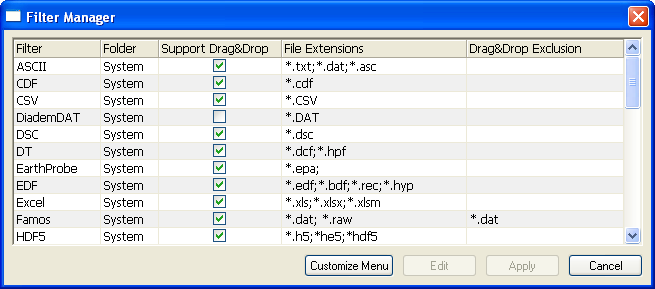

Import Filter Manager Dialog Box

The descriptions of the controls are given as follows:

Columns

Filter Filter names.
Support Drag & Drop Check to support Drag & Drop import mode.
File Extensions Supported file types for the filter.
Folder Filter location (category), system or user-defined filters.
Drag&Drop Exclusion List the file types or files which don't support Drag&Drop.

Buttons

Customize Menu

Open the Import Menu Customization dialog.

Edit

Open the iwfilter dialog to edit filters.

For detailed information about iwfilter, please read the iwfilter dialog box description below.

Apply

Apply the changes.

Cancel

Cancel and close the dialog.

iwfilter Dialog Box

Use this X-Function to make or edit an import filter:

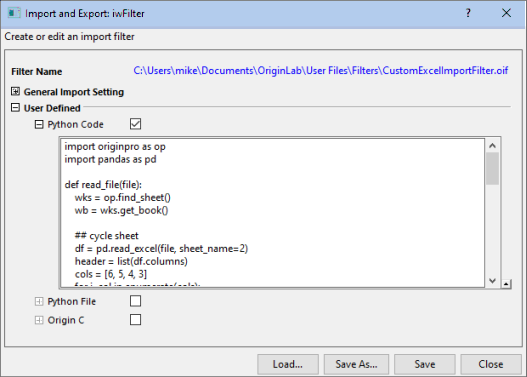

Iwfilter dialogbox.png

Filter Name Show the name and path of the filter which is being edited. It is not editable.
X-Function Name Specify the name of the X-Function for which the filter is used.

General Import Setting Group

File Name Filter Specify supported file types for the filter using wildcards. For example, *.dat imports all files with a .dat extension.
Drag&Drop Exclusion Specify file types that do not support drag-and-drop.
Filter Description Describe the filter's usage or contents.
Page Type Select the type of page to be imported to.
  • Worksheet
    Import file into a worksheet.
  • Matrix
    Import file into a matrix.
  • None
    Import file into a worksheet or matrix, depending on the file structure.
Show Filter in File: Open List Indicate whether to show filtered file extensions in the Files of type dropdown list when using the Open... dialog.
Open XF Dialog Specify whether to open the X-Function dialog in the process of importing.
Labtalk Script after Import The LabTalk script entered here is executed after importing. For example, you can enter plotxy iy:=(1,2) to plot a graph after importing a data file.

Special Import Setting Group

The contents of this group vary depending on the X-Function. Please refer to the Options treenode of the specific X-Function's Help document.

Buttons

At the bottom of the panel are four buttons:

Load...

Open an existing filter and load all its settings.

Save As...

Save the filter with another name.

Save

Save the filter with its current name.

This button is not available when you are editing a system filter.

Close

Close the dialog box.
