2.1.3 Child Windows from Templates

When you create a new workbook, graph or matrixbook, Origin uses a template to create the new window. Predefined properties that were saved with the template are used to set various window format and data handling behaviors of the window. Data are not saved with a template file.

Creating a new window using the Standard toolbar buttons

The easiest and most obvious way to create a new workbook, graph or matrixbook window is to click on one of the Standard toolbar buttons.

Standard toolbar origin templates.png

These buttons open a window based on one of the Origin templates: ORIGIN.OTWU (worksheet), ORIGIN.OTPU (graph) or ORIGIN.OTMU (matrix).

Creating a new workbook with the New Workbook dialog

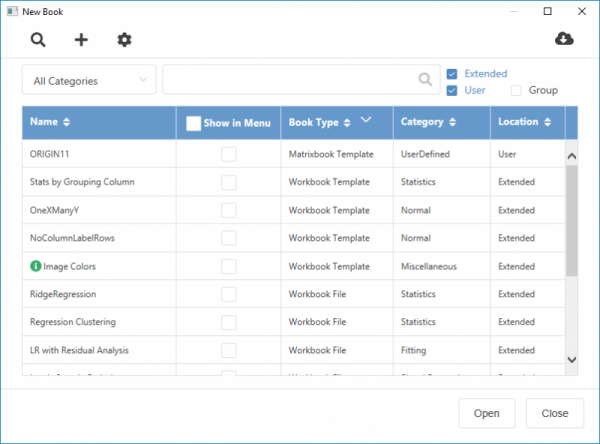

Since Origin 2019, New Workbook dialog will be opened if you select File: New: Workbook main menu.

New Workbook dialog.png

Three tabs in this dialog are

  • System Templates: All built-in system templates(workbook templates, workbook files and analysis templates) have been listed here, including the default template Origin.otwu named as "Blank Workbook". Click one template to select it, and then click OK button to create a new workbook.
  • User Templates:All user templates(analysis tempaltes, workbook tempaltes and workbook files) have been listed here. You can add, modify and remove a user template in this tab. Click one template to select it, and then click OK button to create a new workbook.
  • Construct Worksheet:You can specify a column designation to create a new workbook with the template "Origin.otwu"

Before Origin 2019, you can also open a empty workbook window using the New Worksheet dialog box. This dialog calls the same ORIGIN.OTWU workbook template as the Standard toolbar button, but this dialog box allows "on-the-fly" adding of columns and column designations.

  1. Click File: New: Worksheet, from Origin's main menu.
Creating Child Window 02.png
  • Use the Column Designation combo box to set multiple column plot designations. Select a column designation from the list, or type a custom designation in the box (the dialog provides hints, in blue, explaining the column designation syntax).
  • When the Spreadsheet Cell Notation check box is selected, column short name restriction is on. It will restrict column short names to be enumerated column letters so that A can be used instead of col(A), and A1 instead of col(A)[1] in F(x).
  • When the Add to Active Workbook check box is selected, Origin adds the new worksheet to the active workbook. When Add to Active Workbook is cleared, Origin creates a new workbook with the new worksheet. If the active window is not a workbook, the Add to Active Workbook check box is unavailable.

Creating a new matrixbook with the New Matrix dialog

Similar to the New Matrix toolbar button Button New Matrix.png, the New Matrix dialog opens a window based on the Origin.otm matrixbook template. As with New Workbook, you have the option of doing some on-the-fly customization (e.g. number of rows or columns, add matrix objects, etc.).

  1. Click File: New: Matrix...
  • Show Image Thumbnails

Indicate whether to display image thumbnails in the new matrixsheets.

  • Dimension and XY Mapping

Customize the number of columns (X) and rows (Y), X/Y mapping arrangement, and X/Y labels (Long Name, Units, Comments) for a new matrixsheet.

  • Number of Matrix Objects in sheet

Select or type the number of matrix objects in the sheet. Customize the data type, labels, and formula for each matrix object on the grid table. To apply a value to all cells in the same column, right-click, and then click Apply to all.

Creating Child Window 04.png

Creating a child window from a template

You can use the Load Template dialog to create a new workbook, matrix, or graph from any of the template files in your Origin program folder, User Files Folder or other location:

  1. Click File: New: From Template..., from the main menu.

Note that this dialog box also allows creating a new workbook from an Analysis Template. There is no Analysis Template concept for matrixbooks or graph windows; thus, when Matrixbook or Graph is selected, the Templates and Analysis Templates check boxes are not available (template display cannot be turned off for graphs and matrixbooks).

Creating Child Window 05.png

Example: Creating a workbook from a template

Origin provides workbook template (.OTW) and Analysis Template (.OGW) files for creating workbooks. Depending on your selection, one or both types of template files will appear in the grid table.

  1. In the Load Template dialog, select the Workbook check box, and then select both the Templates and Analysis Templates check boxes.
  2. Specify the Path to the template file.
  3. Select a template file row in the grid table.
  4. Click OK to create your new workbook. (Optionally, click Set Default to set the selected template as the default.)
Note: The Load Template dialog box is a general purpose dialog for opening and managing all template files, including Analysis Templates. There are two dialog boxes that are specific to managing graph template files:
  • The System Templates dialog box that can be used to plot to Origin's built-in graph templates.

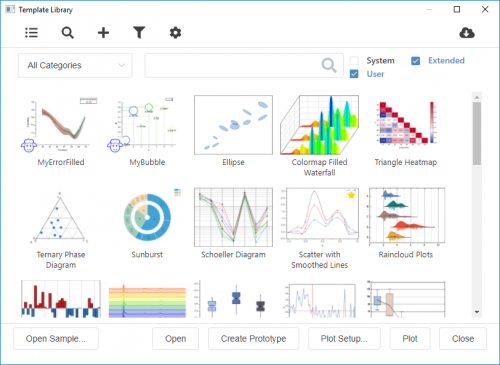

  • The Template Library that can be used to plot to your customized graph templates.

For an explanation of graph system templates, customized templates, and cloneable templates, see Graph Template Basics.
