27.7.8 Customizing Graph Size in Report Sheet

Origin provide a tool to customize Graph size and arrangement in Report Sheet.

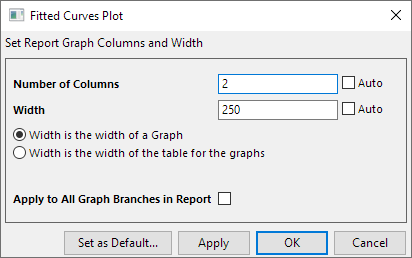

Report Graph Size dialog.png

To open this dialog:

  • Click the Change Graph Size and Arrangement button Popup Change Graph Size.png in the Mini Toolbar of the graph in the report sheet.
  • Click on the down arrow after the branch title of the graph section and select Graph Size in the context menu.
  • Right-click on blank space of graph section and select Graph Size in the context menu.
Number of Columns Set the number of columns in the table for the graphs.
Width Set the width of the graphs.
Width is the width of a Graph When uncheck Auto check-box of Width, this option will be shown. Select this option, the Width value is for each graph in the table.
Width is the width of the table for the graphs When uncheck Auto check-box of Width, this option will be shown. Select this option, the Width value is for the whole table for the graphs.
Apply to All Graph Branches in Report When there are multiple graph branches in the report sheet, you can use check this option to set all graphs/ graphs table to the same width vale in different branches.
Set as Default...(button) Click this button to set the customization in this dialog to default setting, then the graph size and arrangement in new report sheet will follow this new default setting.
