2.19.1 LabTalk-Supported Functions

String Functions

Note: All of the following functions are available only in the Origin 8 SR6 or later version!
Name Brief Description
Char(number)$ Takes an integer 1-255, returns the ASCII character.  examples:
  • char(65)$ returns A.
  • char(col(B))$ returns ASCII characters corresponding to integer values in col(B).
Code(str$) Takes a string, returns ASCII code for the first character. examples:
  • str$ = "abc"; code(str$) returns 97.
  • code(col(D)) returns integers corresponding to the ASCII code for the first character in the string in col(D).
Compare(str1$, str2$ [,Case]) Takes two strings, returns 1 (identical) or 0 (not identical).  Option Case controls case sensitivity: 1 = true (default), 0 = false.  examples:
  • str1$ = "ABC"; str2$ = "abc"; compare(str1$,str2$,0) returns 1.
  • compare(col(F), col(G),1) returns "0" when string or case does not match, or "1" when string and case do match.
Exact(str1$, str2$) Takes two strings, returns 1 (identical, including case) or 0 (not identical). examples:
  • str1$ = "ABC"; str2$ = "abc"; exact(str1$,str2$) returns 0.
  • exact(col(F), col(G)) returns "0" if not an exact string match or "1" if exact match (incl. case).
Find(str1$, str2$ [,StartPos]) Searches str1$ for str2$, returns the position from the first character in str1$ (found) or -1 (not found).   Option StartPos controls start search position (default = 1). Case sensitive. No wildcards. examples:
  • str1$ = "abcde"; str2$ = "bc"; find(str1$,str2$) returns 2.
  • find(col(G),col(J)) searches the col(G) string for the col(J) string, starting from the first character; if found, returns the position of the col(J) string, in the col(G) string.
IsEmpty(str$) Similar to MS Excel's ISBLANK function. Used to determine whether a worksheet cell is empty or not. Argument str can be a cell address or a column of values. example:
  • isempty(col(A)[2]$)=; // return 0 if cell row 2, col 1 contains a value; or 1 if empty.
IsFormula(str$) Determine whether a worksheet cell contains cell formula or not. example:
  • isformula(A2)=; // return 1 if cell row 2, col 1 contains cell formula; otherwise return 0.
Left(str$, n)$ Takes a string str$, returns the leftmost n characters.  examples:
  • str$ = "abcde"; Left(str$,3)$ returns abc.
  • left(col(G),3)$ returns the leftmost 3 characters in the col(G) string.
Len(str$) Takes a string str$, returns the number of characters. examples:
  • str$ = "abc ABC"; Len(str$) returns 7.
  • len(col(G)) returns the number of characters in the col(G) string.
Lower(str$)$ Takes a string str$, converts it to lowercase. examples:
  • str1$ = "ABCDE"; str2$ = Lower(str1$)$ returns abcde.
  • lower(col(F))$ returns the strings in col(F) in lower case.
MakeCSV(str1$[, quote, output_delim, input_delim$])$ Takes a delimited string, converts it to CSV.  Option quote to enclose output: 0 (default) = no quotes, 1 = single quotes, 2 = double quotes. Option output_delim: 0 = comma, 1 = semicolon. Option input_delim$ specifies source string delimiter (not needed if white space). examples:
  • str1$ = "This is a test value"; MakeCSV(str1$, 1, 0)$ returns 'This','is','a','test','value'.
  • makecsv(col(N),0,0)$ takes a space-separated string in col(N) and returns a string of comma-separated values.
Match(within$,find$[,Case])

(2015 SR0)

This function compares the string find$ with another string within$ to see whether their contents match with each other. It returns 1 (True, match) or 0 (False, not match). Note that wildcard characters "*" and "?" are supported in the find$ string variable. Optionally you can use case sensitive check, the option Case controls case sensitivity: 0 (default) = false, 1 = true. examples:
  • str1$ = "From: test@Originlab.com"; str2$ = "F*com"; Match(str1$,str2$); returns 1.
MatchBegin(within$,find$[,StartPos,Case]) Search string within$, return an integer corresponding to the start position of find$ or -1 (not found).  Supports "*"' and "?" wildcards. Option StartPos specifies the position of the character at which to start the search: 1 (default) = search from 1st character. Option Case controls case sensitivity: 0 (default) = false, 1 = true. examples:
  • str1$ = "From: test@Originlab.com"; str2$ = "From*@"; MatchBegin(str1$,str2$,1); returns 1.
  • matchbegin(col(a)," ") returns the starting position of the of the first white space in col(a) or if none found, returns -1.
MatchEnd(within$, find$[, StartPos, Case]) Search string within$, return an integer corresponding to the end position of find$ or -1 (not found).  Supports "*" and "?" wildcards. Option StartPos specifies the position of the character at which to start the search: 1 (default) = search from 1st character. Option Case controls case sensitivity: 0 (default) = false, 1 = true. examples:
  • str1$ = "From: test@Originlab.com"; str2$ = "From*@"; MatchEnd(str1$,str2$,1); returns 11.
  • MatchEnd(col(A),col(B)) returns the ending position of the col(b) string in col(a) or if no match, returns -1.
Mid(str$, StartPos [, n])$ Takes a string str$, returns n characters from StartPos or if n not specified, returns everything from StartPos.   examples:
  • str$ = "aabcdef"; Mid(str$,2,3)$ returns abc.
  • str$ = "aabcdef"; Mid(str$,2)$ returns abcdef.
  • mid(col(a),1,3)$ returns the first three characters of string in col(a).
NumberValue(str$ [, Decimal$, Group$]) Takes a string or vector of strings and returns as numeric. Option Decimal used to interpret string decimal separator. Option Group used to interpret group separator. Enclose string and options in quotes.   examples:
  • numbervalue("1,000.05")=; // returns 1000.05 (US regional settings)
  • numbervalue("5.000,0", ",", ".")=; // returns 5000 (US regional settings)
Replace(str1$, StartPos, n, replace$)$ Replace n characters in str1$, starting from StartPos, with string replace$.  String replace$ may differ in length from n. examples:
  • Replace(abcdefghijklmn,3,5,123456)$ returns ab123456hijklmn.
  • replace(col(a),1,4,"Replacement string ")$ replaces the first four characters in col(a) with string "Replacement string " (including spaces).
Right(str$, n)$ Takes a string str$, returns the rightmost n characters.  examples:
  • str$ = "abcde"; Right(str$,n)$ returns cde.
  • right(col(d),8) returns the rightmost 8 characters in the string in col(d).
Search(within$, find$[, StartPos]) Returns position of string find$ within string within$, or if not found returns -1.  Not case sensitive. No wildcards. Option StartPos controls where to start search (default = 1). examples:
  • within$ = "abcde"; find$ = "BC"; Search(within$,find$) returns 2.
  • search(col(c),"sample") returns the position of the word "sample" in the string in col(c).
Substitute(within$,sub$,find$ [, n])$ Search string within$ for string find$, replace with sub$.  Option to substitute only the nth found instance. examples:
  • Substitute(abcdefabcdef,12,bcd,0)$ returns a12efa12ef.
  • substitute(col(c),"experiment: ","expt.",1) searches string in col(a) and substitutes "experiment: " for "expt.", replacing only the first instance found.
Text(d[,fmt$])$

(9.1 SR0)

Converts a double to string.  Option fmt$ formats output and will take these values; if not specified, uses column's format settings. Use empty string "" to use @SD digits. Use "*" to use Origin's global setting. examples:
  • Text(2.01232,"*3")$ returns 2.01.
  • Text(Date(7/10/2014),D1)$ returns Thursday, July 10, 2014.
  • text(date(col(b)),D1)$ takes a column of date data and returns a string in the format of "Wednesday, March 05, 2014"
Token(str$,iToken[, iDelimiter])$ Takes string str$, returns substring corresponding to index iToken.  Option iDelimiter is ASCII value of delimiter: 0 (default) = any white space; 32 = single space; 124 = "|". Most symbol chars such as '_' (ASCII 95), '|'(ASCII 124) can be directly used as iDelimiter. examples:
  • str1$="This is my string"; Token(str1$,3)$ returns my.
  • token(col(c),2) returns the second token (as delimited by white space) in the string in col(c).
  • token(col(b), 3, ':') returns the third token as delimited by colon in the string in col(b).

Note: some symbol chars might not be directly used by iDelimiter but their ASCII values always apply.

Trim(str$[, n])$ Takes string str$ and removes spaces.  Parameter n controls how space is removed: 0 (default) = leading + trailing, 1 = remove all. examples:
  • str1$ = " abc ABC "; Trim(str1$,0)$ returns abc ABC.
  • trim(col(a),0) returns the string in col(c) with leading and trailing spaces controlled.
Upper(str$)$ Takes string str$, returns as uppercase.  examples:
  • str1$ = "abcde"; Upper(str1$)$ returns ABCDE.
  • upper(col(c))$ returns the string in col(c) in uppercase letters.
Value(str$) Takes string number str$, returns it as double.  examples:
  • str$ = "+.50"; Value(str$) returns 0.5. Note: see the atof() function.
  • value(col(e)) takes a string number in col(e) and returns it as a numeric of type double.

A note on the "$" notation and string functions

Note: Use of the "$" when working with strings can be confusing:

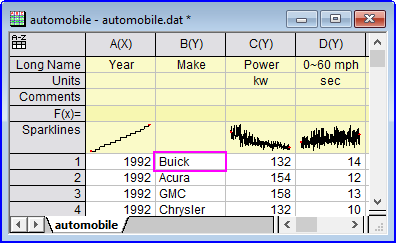

Buick cell value.png
aa$=col(b)[1];
aa$=;
// returns
col(b)[1]
aa$=col(b)[1]$;
aa$=;
// returns
Buick
aa$=upper(col(b)[1]$);
aa$=;
// returns
upper(col(b)[1]$)
aa$=upper(col(b)[1]$)$;
aa$=;
// returns
BUICK

Math Functions

Name Brief Description
abs(x) Returns the absolute value of x.   example:
  • abs(-2.5) returns 2.5; abs(0/0) returns -- (missing value);
  • abs(col(b)) returns absolute value of every element in col(b).
ceil(x[, sig])

(2019 SR0)

Returns a value by adjusting the given value x away from 0 and to the multiple of sig nearest to x.   example:
  • ceil(2.5, 2) returns 4;
  • ceil(-2.5, 2) returns -2.
Combina(n,k)

(2019 SR0)

Given n elements, return the number of combinations of k elements with repetitions.   example:
  • combina(4,2) returns 10.
Combine(n1,n2) Given n1 elements, return the number of combinations of n2 elements.   example:
  • combine(4,2) returns 6.
  • combine(col(a),2 returns the number of combinations of 2 elements for the value in col(a).
Distance(px1, py1, px2, py2) Takes the XY coordinates of two points, returns the shortest distance.  examples:
  • distance(0,0,0,1) returns 1.
  • distance(col(g),col(h),col(i),col(j)) could also return 1.
Distance3D(px1, py1, pz1, px2, py2, pz2) Takes the XYZ coordinates of two points, returns the shortest 3D distance.   examples:
  • distance3d(0,0,1,0,0,2) returns 1.
  • distance3d(col(a),col(b),col(c),col(d),col(e),col(f)) could also return 1.
exp(x) Returns e raised to the x power.   Note: x > 667 returns missing value. examples:
  • exp(0) returns 1.
  • exp(col(a)) returns e raised to the value in col(a).
expm1(x) Returns the value of exp(x)-1 accurately for the small values of x. examples:
  • expm1(0.00574) returns 0.0057565053651536.
fact(n) Returns the factorial of a non-negative integer.  Note: n > 170 returns missing value; see the Log_gamma function. examples:
  • fact(3) returns 6.
  • fact(col(a)) returns factorial of value in col(a).
factdouble(n) Returns the double factorial of a non-negative integer.

If n = odd, sequence is 1*3*5...(n-2)*n; if n = even, sequence is 2*4*6...(n-2)*n; if n = 0, evaluates to 1. If n > 299, returns missing value. examples:

  • factdouble(6) returns 48;
  • factdouble(col(a)) returns the double factorial of value in col(a).
floor(x[, sig])

(2019 SR0)

Returns a value by adjusting the given value x towards 0 and to the multiple of significance nearest to x.   example:
  • floor(2.5, 2) = ; returns 2;
  • floor(-2.5, -2) = ; returns -2.
gcd(n1, n2[, ...])

(2019 SR0)

Returns the greatest common divisor of a group of given integers n1, n2, n3, etc.   example:
  • gcd(360, 15) returns 15;
frac(x) Returns the fractional part of a double.

example:

  • frac(3.1415) = ; returns 0.1415.
HaversineDistance(lon1,lat1,lon2,lat2,r[,degree])

(2017 SR0)

Takes the longitudes and latitudes of two points on a sphere with radius r, returns the great-circle distances between them. Option degree determines whether to use degree or radian as the unit of longitudes and latitudes (default is degree).  example:
  • HaversineDistance(120, 30, 0, -60, 5000) returns 11388.7402734106;
int(x) Takes a double x and returns the truncated integer.  examples:
  • int(7.9) returns 7.
  • int(col(a)) returns the truncated integer in col(a).
ln(x) Return the natural logarithm of x.
ln1p(x) Return the natural logarithm of x when x is very close to 1.
log(x) Return the base 10 logarithm of x.
mod(n, m) Returns the integer modulus of integer n divided by integer m (quotient rounds toward 0).   examples:
  • mod(16,7) returns 2.
  • mod(col(a),col(b)) returns the integer modulus of the value in col(a) divided by the value in col(b).
mod2(n,m) Returns the integer modulus of integer n divided by integer m (quotient rounds toward minus infinity). Quotient of \frac{n}{m}, which is used to calculate modulus, rounds toward -\infty. When the input(s) are negative, the return may differ from mod (it calculates quotient of \frac{n}{m} rounds toward 0). examples:
  • mod(5,-3) returns -1
  • mod(col(a),col(b)) returns the integer mod2 of the value in col(a) divided by the value in col(b).
nint(x) Takes a double x and rounds up/down to the nearest integer.  The nint(x) function returns the same result as round(x, 0).
permut(n, k)

(2019 SR0)

Returns the number of permutations for a specified k elements from a given set of n elements.  examples:
  • permut(4, 2) returns 12
prec(x, n) Takes a value or a dataset, returns it with n significant figures.  examples:
  • x = 1234567; prec(x, 3) returns 1230000.
  • prec(col(b), 3) assigns the values in col(b) to the target column, to 3 significant figures.
rmod(x, y) Returns the real modulus of double x divided by double y (quotient rounds toward 0).   Quotient of \frac{x}{y} rounds toward 0. examples:
  • rmod(4.5, 2) returns 0.5.
  • rmod(col(a),3) returns the rmod of col(a) divided by 3.
rmod2(x, y) Returns the real modulus of double x divided by double y (quotient rounds toward minus infinity).  Quotient of \frac{x}{y} rounds toward -\infty. examples:
  • rmod2(-4.5, 2) returns 1.5.
  • rmod(col(a),3) returns the rmod2 of col(a) divided by 3.
round(x, n) Takes a value or dataset, returns the value or dataset to n decimal places.  Note: Origin 9.1 introduced a new rounding algorithm. System variable @RNA toggles between old and new methods (old behavior is @RNA=0; new behavior is @RNA=1 (default)). examples:
  • round(1.156, 1) returns 1.2.
  • round(col(a),2) returns the values in col(a), rounded to 2 decimal places.
sign(x) Takes a real number x and returns its sign.  If x > 0, returns 1; If x < 0, returns -1; If x = 0, returns 0.
sqrt(x) Takes a double x and returns the square root.
Derivative(vd[,n]) Takes a vector vd, returns the derivative of the data list.  No smoothing is performed. Option n is derivative order (default = 1).
DerivativeXY(vx, vy [, n]) Takes two vectors vx and vy, returns the derivative of the curve.  Option n is derivative order (default = 1).
Integral(integrand,lowerlimit,upperlimit[, arg1, arg2, ...]) Perform one dimension integration value, and returns the integral value.

\int_{LowerLimit}^{UpperLimit} integrand(t, arg1, arg2, ...)dt

Integrate(vd) Integrate the area under a curve.  Uses the Trapezoid Rule.
IntegrateXY(vx, vy) Integrate the area under curve (vx, vy).  Vector vx contains x coordinates of curve; vy contains y coordinates.
Interp(x,vX,vY[,method,bound,smooth,extrap])

(2015 SR0)

Takes x coordinates vx and y coordinates vy and interpolates/extrapolates a y coordinate at a given coordinate x. Option method = 0 (linear, default), 1 (cubic spline), 2 (cubic B-spline), 3 (Akima spline). When method = 1, bound can equal 0 (natural) or 1 (not-a-knot). When method = 2, smooth = non-negative value for smoothness. Option extrap can be applied when X values are outside reference range: 0 (default) = extrapolate Y using last two points; 1 = set all Y as missing values; 2 = use the Y value of the closest input X.
permutationa(n, k)

(2019 SR0)

Returns the number of permutations (with repetitions) for a specified k elements from a given set of n elements. examples:
  • permutationa(4, 2) returns 16

Special Math Functions

Name Brief Description
beta(a, b) Beta Function with parameters a and b

beta(a,b)=\int_{0}^{1}t^{a-1}(1-t)^{b-1}

incbeta(x, a, b) Incomplete Beta Function with parameters x, a, b.

incbeta(x,a,b)=\int_{0}^{x} t^{a-1}(1-t)^{b-1}dt

incf(x, m, n) The incomplete F-table function.  Parameter x is the upper limit of integration; parameter m is the degrees of freedom of the numerator variance; parameter n is the degrees of freedom of the denominator variance.
incgamma(a,x) Compute Incomplete Gamma function at x, with parameter a

incgamma\left( a, x\right)=P\left( a, x\right)=\frac{1}{\Gamma \left( a\right)}\int _0^x t^{a-1}e^{-t}\,dt

where \Gamma (a) is the value of Gamma function at a. a > 0 and x ≥ 0.

inverf(x) Computes the inverse error function at x
j0(x) Zero Order Bessel Function.
j1(x) First Order Bessel Function.
jn(x, n) Bessel function of order n


J_n(x,n)=(x/2)^{n}\sum_{k=0}^{\infty} \frac{(-1)^{k}(x/2)^{2k}}{k!\Gamma(k+n+1)}

where \Gamma is the gammaln(x) function.

y0(x) Zero order Bessel function of second kind.
y1(x) First order Bessel function of second kind.
yn(x, n) nth order Bessel function of second kind.

Y_n(x,n)=\lim_{v \rightarrow n} Y_n(v, n)

where

Y_n(v,n)=\frac{J_{n}(x,v)\cos(v\pi)-J_{n}(x,-v)}{sin(v\pi)}

Trigonometric/Hyperbolic Functions

Note: Angular units (radians, degrees, gradians) depend upon system.math.angularunits property (also set in Tools: Options: Numeric Format).
Name Brief Description
acos(x) Returns the arccosine of x.  If x < -1 or x > 1, missing value ("--") is returned.
acosh(x) Returns the inverse hyperbolic cosine of x.  If x is < 1, missing value ("--") is returned.
acot(x) Returns the arccotangent of x.  Input x can be any value. Values are returned in the first or second quadrants.
acoth(x) Returns the inverse hyperbolic cotangent of |x| > 1.
acsc(x) Returns the arccosecant of |x|. If |x| is < 1, returns missing value ("--"). Values are returned in the first or fourth quadrants.
acsch(x) Returns the inverse hyperbolic cosecant of x.  If x = 0 or x > ~3E153, returns missing value ("--").
angle(x, y) Returns the angle (radians), measured between the positive X axis and the line joining a point (x,y) and the origin (0,0).
Angleint1(px1, py1, px2, py2 [, unit, direction]) Takes two pairs of x,y coordinates, returns the angle between the line defined by the two points and the X axis.  Option unit: 0 = radians default) or 1 (degrees); Option direction: 0 (default) constrains the returned angular value to the first (+x,+y) and fourth (+x,-y) quadrants; or 1, returns values from 0–2pi radians or 0–360 degrees. examples:
  • angleint1(1,1,3,3,1) returns 45.
  • angleint1(col(a),col(b),col(c),col(d),1,1) returns the angle in degrees (0 - 360) between the line defined by two pairs of xy coordinates and the X axis.
Angleint2(px1, py1, px2, py2, px3, py3, px4, py4 [, unit, direction]) Returns the angle between two lines, one with endpoints (px1, py1) and (px2, py2), the other with endpoints (px3, py3) and (px4, py4).  If option unit = 0 (default), returns radians; if unit = 1 returns degrees. Option direction specifies direction of return value. If option direction = 0 (default), constrains the returned angular value to the first (+x,+y) and fourth (+x,-y) quadrants; if direction = 1, returns values from 0–2pi radians or 0–360 degrees. examples:
  • angleint2(0,0,1,0,0,1,0,0,1,1) returns 90.
  • angleint2(col(a),col(b),col(c),col(d),col(e),col(f),col(g),col(h),1,1) returns the angle (degrees, 0 - 360) between two lines defined by endpoints in col(a) - col(h).
asec(x) Returns the arcsecant of x.  If |x| is < 1, returns missing value ("--"). Values are returned in the first or second quadrant.
asech(x) Returns the inverse hyperbolic secant of x. 0 < x ≤ 1. Other values of x return a missing value ("--").
asin(x) Returns the arcsine of x. -1 ≤ x ≤ 1. Other values of x return a missing value ("--").
asinh(x) Returns the inverse hyperbolic sine of x (any real number).
atan(x) Returns the arctangent of x (any real number).
atan2(y,x) Takes coordinates x,y (doubles), returns the angle between the positive X axis and the point (x,y). A variation of the atan(x) function. Returns value between -π and π. Angle is (+) for counter-clockwise angles (y > 0) and (-) for clockwise angles (y < 0).
atanh(x) Returns the inverse hyperbolic tangent of x. -1 < x < 1. Other values of x return a missing value ("--").
cos(x) Returns the cosine of x
cosh(x) Returns the hyperbolic cosine of x
cot(x) Returns the cotangent of x
coth(x) Returns the hyperbolic cotangent of x.  Value x is any non-zero number. Note that numbers of absolute value > 710 (approx.) return a missing value ("--").
csc(x) Returns the cosecant of x.  If x = 0, returns missing value ("--").
csch(x) Returns the hyperbolic cosecant of x.  Value x is any non-zero number. Note: when x > 710 (approx.), returns a missing value ("--").
Degrees(angle) Takes angle in radians and returns degrees.
Radians(angle) Takes angle in degrees and returns radians.
secant(x) Returns the secant of x.  Note: Do not confuse with the sec() function which returns the seconds value of a date.
sech(x) Returns the hyperbolic secant of x.  Note that numbers of absolute value > 710 (approx.) return a missing value ("--").
sin(x) Returns the sine of x
sinh(x) Returns the hyperbolic sine of x
tan(x) Returns the tangent of x
tanh(x) Returns the hyperbolic tangent of x

Date and Time Functions

Note: Beginning with Origin 2019, there are three date-time systems in Origin. The default system remains the long-time, adjusted Julian Date system as explained in Dates and Times in Origin. The examples in the table below assume the long-time, default date-time system and when you see "Julian-date value", this refers to Origin's adjusted date value. These functions should work with the alternate systems ...

date2str(today(), "MM/dd/yyyy")$ = 09/27/2018 // default date-time system, @DS=0
date2str(today(), "MM/dd/yyyy")$ = 09/27/2018 // "2018" system, @DS=2018

... but keep in mind that the numeric values that equate to a given calendar date will differ between systems:

date(9/27/2018) = 2458388 // default date-time system, @DS=0
date(9/27/2018) = 269 // "2018" system, @DS=2018

For information on Origin's alternate date-time schemes, see Alternate Date-Time Systems in Origin.

Name Brief Description
Date(MM/dd/yy[, format$]) and Date(yy,mm,dd) Takes a date-time string and returns Julian-date value.  If format$ is not specified, string is interpreted using system short date format. Can take values 1 = default (MM/dd/yyyy) , 2 (dd/MM/yyyy) or 3 (yyyy/MM/dd) to control format for date portion of first argument, without specifying format$ string. examples:
  • date(24-09-2009,"dd-MM-yyyy") returns 2455098.
  • date(3/5/14) returns 2456721 (US) but date(5/3/14) returns 2456721 (UK).
  • date(2/1/1986 13:13, 2) returns 2446432.5506944 but date(2/1/1986 13:13, 1) returns 2446462.5506944.
  • date(col(a)) returns a Julian-date value for the date-time string in col(a).

or

Takes doubles yy as year, mm as month, dd as date and returns the Julian-date value.

Date2str(d,format$)$ Takes a Julian-date value and returns a date string.  examples:
  • date2str(2456573.123, "dd/MM/yyyy HH:mm")$ returns 08/10/2013 02:57).
  • date2str(col(b), "dd/MM/yyyy HH:mm")$ returns a date string in the format "dd/MM/yyyy HH:mm".
DatePart(datepart$, d [, n])

(2016 SR1)

Takes a Julian-date value (double) d and returns a portion of the date specified by datepart$, as a double. Option n specifies start of week for datepart$ = w or ww.  examples:
  • datepart(yyyy, 2457360.5107885) returns 2015.
  • datepart(y, Today())=; returns the day number of the current year (e.g. if today() = 2457363 = 12/7/2015 = 341).
  • Datepart(s, col(A))=; returns the seconds portion of the Julian-day values in column A (e.g. datepart(s, 2457360.5107885) returns 32).
  • datepart(w, 2457360.5107885, 1)=; returns 6 but datepart(w, 2457360.5107885)=; returns 5.
Day(d[,n]) Takes a Julian-date value, returns the day number.  If option n = 1, returns 1 to 31 (month); if n = 2, returns 1 to 366 (year). examples:
  • (Day(2454827.5982639, 2) returns 362.
  • day(col(b),1) takes a Julian-date value and returns the day of the month.
Hour(d) Takes a Julian-date value, returns the hour as an integer.  Returns 0 to 23 (0 = 12:00 A.M., 23 = 11:00 P.M.). examples:
  • Hour(0.6997854) returns 16.
  • hour(col(b)) returns the hour from Julian-date value in col(b).
Minute(d) Takes a Julian-date value, returns the minutes as an integer (0 to 59).   examples:
  • Minute(2454827.5982639) returns 21.
  • minute(col(b)) returns the minute from the Julian-date value in col(b).
Month(d) Takes a Julian-date value, returns the month as an integer (0 to 12).   examples:
  • month(2454821) returns 12.
  • month(col(b) returns the month of the Julian-date value in col(b).
MonthName(d[,n])$ Takes a Julian-date value, returns the month name.   Month format specified by option n: 1 = single character; 3(default) = 3 characters; 0 = full month name; -1 = 3 character English regardless of language settings. examples:
  • MonthName(2454827.5982639, 0)$ returns December.
  • monthname(col(b),0)$ returns the full month name for Julian-date values in col(b).
Now() Returns the current date-time as a Julian-date value.  examples:
  • time2str(now()-date(col(a)),"HH:mm")$ returns a time string (HH:mm) elapsed between current time and the date string in col(a).
Quarter(d) Takes a Julian-date value, returns a quarter of the year.  examples:
  • Quarter(2454829.5745718) returns 4.
  • quarter(col(b)) returns the quarter of the Julian-date value in col(b).
Second(d[,n]) Takes a Julian-date value or real number, returns the seconds as a real value in the range 0 to 59.9999. Option n = 0 displays more than 3 decimal digits but the precision of Julian date values is limited to 0.0001 seconds when rounded at the fourth decimal digit.  examples:
  • second(2454827.5982639) returns 30.001.
  • second(2454827.5982639, 0) returns 30.000942349434.
  • second(A) returns the seconds of Julian dates in col(a).
Time(HH,mm,ss) and Time(HH:mm:ss[,Format$]) Takes either HH,mm,ss or custom date-time string (HH:mm:ss = default) and returns the Julian-date value. Optional Format$ argument specifies custom string format. examples:
  • time(20:50:25) returns 0.8683449; time("2 20,50,25", "DDD hh,mm,ss") returns 2.8683449.
  • time(col(a)) returns Julian-date values for time data formatted as HH:mm:ss in col(a).
Time2str(d,format$)$ Takes a Julian-date value, returns a time string of a specified format.   examples:
  • time2str(0.1875, "HH:mm")$ returns 04:30.
  • time2str(col(b),"DDD:HH")$ returns a time string formatted as DDD:HH.
Today() Returns the current date as a Julian-date value.
WeekDay(d[,n]) Takes a Julian-date value, returns the day of the week.  Option n specifies week start and end values: 0 (default) = Sunday (0-6), 1 = Sunday (1-7), 2 = Monday (0-6), or 3 = Monday (1-7). examples:
  • weekday(2454825, 1) returns 5.
  • weekday(col(b)) takes Julian-date values in col(b) and returns the day of the week as a number.
WeekDayName(d[,n1,n2])$ Takes a Julian-date value (including time) or number defined by n2, returns the weekday.  Option n1 controls output string length: -1 = 3 char cap; 0 = full name, 1st cap; 1 = 1 char cap; 3(default)= 3 char, 1st cap. Option n2 controls week start and end values: 0 = 0(Sun) - 6(Sat); 1 = 1(Sun) - 7 (Sat); 2 = 0(Mon) - 6(Sun); 3(default) = 1(Mon) - 7(Sat). examples:
  • WeekDayName(2454825,-1,0)$ returns THU.
  • weekdayname(col(b),3,0)$ returns the day of the week name, formatted as 3 char, 1st letter cap.
WeekNum(d[,n]) Takes a Julian-date value, returns the calendar week number of the year (1 to 53).  Option to specify week start (Sunday vs Monday). examples:
  • weeknum(date(1/11/2009)) returns 3.
  • weeknum(date(col(c))) takes a column of date data formatted as "MM/dd/yyyy" (col(c)), interprets it as a Julian-date value using the date() function and then returns a week number using the weeknum() function.
Year(d) Takes a Julian-date value, returns the year as an integer(0100-9999).  examples:
  • year(2454821) returns 2008.
  • year(date(col(c))) takes a column of date data formatted as "MM/dd/yyyy" (col(c)), interprets it as a Julian-date value using the date() function and then returns the four-digit year.
YearName(d[,n])$ Takes a Julian-date value, returns year as a string.   Form of string is specified by option n: 0 = 2 digits, 1(default) = 2 digits preceded by an apostrophe, or 2 = 4 digits. examples:
  • YearName(2454827.5982639, 1)$ returns '08.
  • yearName(date(col(c)),0)$ takes a column of date data formatted as "MM/dd/yyyy" (col(c)), interprets it as a Julian-date value using the date() function and then returns the two-digit year.

Signal Processing Functions

Name Brief Description
fftamp(cx [,side])

(2015 SR1)

Takes a complex vector cx (usually FFT complex result), returns the amplitude. Option side defines the output spectrum (1 = one-sided, 2 = two sided and shift). examples:
  • fftamp(fftc(col(B)), 2) returns the amplitude of the FFT complex result(two-sided) of input signal in column B.
  • col(C) = col(B)-mean(col(B)); fftamp(fftc(col(C))) returns the amplitude result with DC offset removed (one-sided).
fftc(cx)

(2015 SR1)

Takes a vector cx, returns the complex FFT result. Note that the data type of output column needs to be set as complex (16) in advance. examples:
  • fftc(col(B)) returns the FFT complex result of input signal in column B
  • fftc(rSignal) returns the FFT complex result of input signal in range variable rSignal
fftfreq(time, n[, side , shift])

(2015 SR1)

Takes the sampling interval time and signal size n, returns the frequencies for the FFT result. Option side defines the output spectrum (1 = one-sided, 2 = two sided), shift defines whether to shift for two-sided. ( 0 = no shift, 1 = shift).examples:
  • fftfreq(0.001, 100) returns a dataset that starts from 0 to 500 with interval 10 (one-sided, no shift)
  • fftfreq(0.01, 100, 2, 1) returns the two-sided and shifted frequency for sampling interval 0.01.
fftmag(cx [,side])

(2015 SR1)

Takes a complex vector cx (usually FFT complex result), returns the magnitude. Option side defines the output spectrum (1 = one-sided, 2 = two sided and shift).examples:
  • fftmag(fftc(col(B)), 2) returns the magnitude of the FFT complex result(two-sided) of input signal in column B.
  • col(C) = col(B)-mean(col(B)); fftmag(fftc(col(C))) returns the magnitude result with DC offset removed (one-sided).
fftphase(cx[, side, unwrap, unit])

(2015 SR1)

Takes a complex vector cx (usually FFT complex result), returns the phase. Option side defines the output spectrum (1 = one-sided, 2 = two sided and shift), unwrap defines whether to unwrap phase angle (0 = wrap, 1 = unwrap), unit defines the unit (0 = radians, 1 = degrees).examples:
  • fftphase(fftc(col(B))) returns the phase of the FFT complex result (one-sided, unwrapped, in degrees) of input signal in column B
  • fftphase(fftc(col(B)), 2, 0, 0) returns the phase of the FFT complex result (two-sided, wrapped, in radians) of input signal in column B
fftshift(cx)

(2015 SR1)

Takes a complex vector cx (usually FFT complex result or frequency), returns a shifted vector. Note that the data type of output column needs to be set as complex (16) in advance.examples:
  • fftshift(fftc(col(B))) returns a shifted complex vector
ifftshift(cx)

(2015 SR1)

Takes a complex vector cx (usually shifted FFT result), returns an unshifted vector. Note that the data type of output column needs to be set as complex (16) in advance.examples:
  • ifftshift(col(B)) returns an unshifted vector, in which column B contains a complex vector with shift.
invfft(cx)

(2015 SR1)

Takes a complex vector cx (usually FFT complex result), returns the inverse FFT result. Note that the data type of output column needs to be set as complex (16) in advance.examples:
  • invfft(ifftshift(col(B))) returns the inverse FFT result for shifted FFT complex result in column B.
windata(type, n)

(2015 SR1)

Takes integers of type(window type) and n(window size), returns the window signal as a vector of size n.example:
  • windata(2, 50) returns the triangular window signal with vector size 50

Statistical Functions

Name Brief Description
averageif(vd, con$)

(2015 SR0)

Takes a vector vd and a conditional con$ and returns the mean of values satisfying con$. example:
  • col(A) = data(1,32); con$ = col(A) > 5 && col(A) < 10; averageif(col(A), con$)=; returns 7.5.
Correl(vx, vy)

(2015 SR0)

Takes datasets vx and vy, returns the correlation coefficient. example:
  • for(ii=1;ii<=30;ii++) col(1)[ii] = ii; col(2)=ln(col(1)); correl(col(A),col(B))=; returns 0.92064574677971.
Count(vd[,n]) Takes a vector vd, returns the number of elements.  Option n specifies element: 0 (default) = all; 1 = numeric; 2 = missing. example:
  • count(col(a),2) might return 22 for number of missing values.
Countif(vd,con$)

(2015 SR0)

Takes a vector vd, returns the count of values satisfying condition con$. Condition con$ should be enclosed by double-quotes (" ").
  • countif(col(b),"col(b)>0")=;
  • countif(col(A),"col(A)<10 && col(A)>5")=;
cov(vx, vy[, avex, avey]) Takes datasets vx and vy and respective means avex and avey, returns the covariance.  example:
  • for(ii=1;ii<=30;ii++) col(1)[ii] = ii; col(2)=ln(col(1)); cov(col(A),col(B))=; returns 6.8926313172818.
Forecast(x,vx,vy)

(2019 SR0)

Takes x coordinates vx and y coordinates vy and performs linear regression to calculate or predict y coordinate at given coordinate x.
Intercept(vx,vy)

(2019 SR0)

Takes two vectors, vx (independent) and vy (dependent), returns the intercept of the linear regression.
Max(vd) Takes a vector vd, returns the maximum value.  example:
  • max(col(A)) returns max value in col(A).
  •  max(1,2,3,4,9) returns 9.
Maxifs(vd,con$)

(2019 SR0)

Takes vector vd, returns the maximum values satisfying condition con. Example
  • maxifs(col(A), "col(A)>5") returns the maximum in the sub-set of col(A) larger than 5.
Mean(vd) Takes a vector vd, returns the average.  example:
  • mean(col(A)) returns the average value of col(A).
Median(vd[,method]) Takes a vector vd, returns the median.  Option method specifies the interpolation method: 0 (default) = empirical distribution with averaging; 1 = nearest neighbor; 2 = empirical distribution; 3 = weighted average right; 4 = weighted average left; 5 = Tukey hinge). example:
  • median(col(A),2) returns the median (as determined using method = 2). For more on interpolation methods, see Interpolation of Quantiles.
Min(vd) Takes a vector vd, returns the minimum value.
Minifs(vd,con$)

(2019 SR0)

Takes vector vd, returns the minimum values satisfying condition con. Example
  • minifs(col(A), "col(A)>5") returns the minimum in the sub-set of col(A) larger than 5.
rms(vd) Takes a vector vd, returns the root mean square.
Slope(vx,vy)

(2019 SR0)

Takes two vectors, vx (independent) and vy (dependent), returns the slope of the linear regression.
Ss(vd [,ref]) Takes a vector vd, returns the sum of squares.  Sum of squares is calculated after subtracting some reference value ref from each value in vd. Option ref defaults to the mean of vd but ref can be a constant, a dataset or a function. example:
  • ss(vd) returns the mean-subtracted sum of squares.
  • ss(vd,4) returns the sum of squares, calculated after subtracting 4 from each member of vd.
  • ss(vd1,vd2) returns the sum of squares, calculated after subtracting each member of vd2 from the corresponding member of vd1.
  • AA = 1; BB = 2; ss(vd, AA+BB*x) returns the sum of squares, calculated after subtracting the line described by 1+2x from vd.
StdDev(vd) Takes a vector vd, returns the sample standard deviation. example:
  • StdDev(col(A)) returns sample standard deviation.
StdDevP(vd) Takes a vector vd, returns the population standard deviation. example:
  • StdDevP(col(A)) returns population standard deviation.
sumif(vd,con$)

(2015 SR0)

Takes a vector vd, returns sum of values satisfying condition con$.
Total(vd) Takes a vector vd, returns the sum of elements. example:
  • total(col(a)) returns the sum of all data points in column A.
ave(vd, size) Takes a vector vd, returns a range of averages of each group of size. If elements of vd is not an even multiple of size, then the returned average will represent only mod(vdSize,size) elements. example:
  • ave(col(a),5) breaks col(a) into groups of size 5 and calculates an average for each group.
diff(vd[,n]) Takes a vector vd, returns a range of differences between adjacent elements. The first element in the returned range is vd(i+1)-vdi, and so forth. Returns N-1, N, or N+1 elements, depending on value of optional parameter n:
  • 0 = (default), returns N-1 elements;
  • 1 = pad with 0 at dataset end, return N elements;
  • 2 = pad wth 0 at dataset begin, return N elements;
  • 3 = pad with 0 at dataset begin, return N+1 elements where element N+1 is obtained by totalling N elements.
sum(vd)
or
sum(WorksheetName, col1, col2)
Takes a vector vd, returns a dataset which holds the values of the cumulative sum (from 1 to i, i=1,2,...,N). Its i+1th element is the sum of the first i elements. The last element of the returned range is the sum of all elements in the dataset.
or
Takes a worksheet name WorksheetName and two column indices col1 and col2, returns a dataset, which holds the values of the sum across rows in col1 and col2.
Confidence(alpha, std, size) Takes significance level alpha, population standard deviation std and sample size, returns the confidence interval for the population mean. example:
  • confidence(0.05, 1.5, 100) returns 0.29399459768101.
histogram(vd, inc, min, max) Takes a vector vd, bin width = inc, vd min and vd max, and generates data bins. Data points that fall on the upper edge of a bin are placed into the next higher bin.
Kurt(vd) Takes a vector vd, returns the kurtosis. example:
  • dataset ds = {1, 2, 3, 2, 3, 4, 5, 6, 4, 8}; kurt(ds) returns 0.39502164502164.
Percentile(vx, vy) Takes a vector vx, returns the percentile values at each percent value specified in vy. example:
  • DATA1_A = normal(1000); DATA1_B = {1, 5, 25, 50, 75, 95, 99}; DATA1_C = percentile(DATA1_A, DATA1_B); returns a dataset DATA1_C that contains the percentiles of a normal distribution at 1%, 5%...99%.
QCD2(n) Takes a sample size n, returns the Quality Control D2 Factor. example:
  • QCD2(4) returns 2.05875.
QCD3(n) Takes a sample size n, returns the Quality Control D3 Factor. Factor D3 is the 3-sigma lower control limit in the X bar R chart. example:
  • QCD3(10) returns 0.223.
QCD4(n) Takes a sample size n, returns the Quality Control D4 Factor. Factor D4 is the 3-sigma upper control limit in the X bar R chart. example:
  • QCD4(10) returns 1.777.
Skew(vd) Takes a vector vd, returns the skewness (distribution asymmetry). example:
  • skew(col(a)) returns the skewness of the dataset in column A.
Emovavg(vd,n[,method]) Takes a vector vd and an integer n = time period, returns a vector of exponential moving averages. Option method specifies where calculation begins: 0 (default) = from point n; 1 = from 1st point. example:
  • for(ii=1;ii<=30;ii++) col(1)[ii] = ii; col(3)=emovavg(col(1),10, 1); //method II fills column 3 with values, calculated using starting point = 1.
Mmovavg(vd,n) Takes a vector vd, an integer n = time period, and returns a vector of modified moving averages. example:
  • for(ii=1;ii<=30;ii++) col(1)[ii] = ii; col(2)=mmovavg(col(1),10); fills column 2 with a modified moving average value at each point, starting with row 10.
Movavg(vd,back,forward) Takes a vector vd and returns the moving average of adjacent ranges [i-back, i+forward], for a point i (i = the current row number). example:
  • for(ii=1;ii<=10;ii++) col(1)[ii] = ii; col(2)=movavg(col(1),0, 2); fills col(2) with adjacent average values at each point (Note that col(2)[9] = (col(1)[9]+col(1)[10])/2 and col(1)[10] = col(2)[10]).
Movcoef(v1,v2,back,forward) Takes two vectors v1 and v2 and returns a vector of moving correlation coefficients of adjacent ranges [i-back, i+forward], for a point i (i = the current row number). example:
  • wcol(4) = MovCoef(wcol(2), wcol(3), 20, 0);
    fills the 4th column with moving correlation coefficients of col(2) and col(3), within the window [i-20. i]
Movrms(vd,back[,forward])

(2015 SR2)

Takes a vector vd and returns the root mean square(RMS) of adjacent ranges [i-back, i+forward], for a point i (i = the current row number). example:
  • col(B)=movrms(col(A),0, 2); fills col(B) with RMS at each point for data within the window [i, i+2]).
Movslope(vx,vy[,n]) Takes two vectors, vx (independent) and vy (dependent), returns a vector of moving slope at each point. Optional n specifies window width (should be > 1). If n is even, 1 will be added. When n is not specified, the function returns a vector of one value which is the linear fit slope of the input. example:
  • col(C)=movslope(col(A),col(B),5); fills col(C) with slope at each point (first and last two cells are missing values).
Tmovavg(vd,n) Takes a vector vd and an integer n = time period, returns a vector of triangular moving averages. example:
  • for(ii=1;ii<=30;ii++) col(1)[ii] = ii; col(2)=tmovavg(col(1),9); fills col(2) with triangular moving average values at each point, starting at point = 9.
Wmovavg(vd,vw) Takes a vector vd (data to smooth) and vector vw (indexed weight factor), returns a vector of weighted moving averages. example:
  • for(ii=1;ii<=30;ii++) col(1)[ii] = ii; //data vector
    for(ii=1;ii<=10;ii++) col(2)[ii] = ii/10; //weight vector
    col(3)=wmovavg(col(1),col(2));

    fills col(3) with the weighted moving average at each point, starting at point = 10.

Distribution Functions

Cumulative Distribution Functions (CDF)

Name Brief Description
betacdf(x,a,b[,tail]) Computes beta cumulative distribution function at x, with parameters a and b. a and b must all be positive, and x must lie on the interval [0,1]. tail determines the returned probability is the lower tailed or upper tailed.
binocdf(k,n,p) Computes the lower tail, upper tail and point probabilities in given value k, associated with a Binomial distribution using the corresponding parameters in n, p.

\begin{aligned}binocdf(k, n, p)&=P(X\le k)=\sum_{i=0}^k P(X=i)\\&=\sum_{i=0}^k {n \choose k}p^i(1-p)^{n-i}\end{aligned}

bivarnormcdf(x,y,corre) Computes the lower tail probability for the bivariate Normal distribution.

P(X\leq x,Y\leq y)\\=\frac 1{2\pi \sqrt{1-\rho ^2}}\int_{-\infty }^y\int_{-\infty }^x\exp (\frac{x^2-2\rho XY+Y^2}{2(1-\rho ^2)})dXdY

chi2cdf(x,df[,tail]) Computes the lower/upper tail probability for the chi-square distribution with real degrees of freedom df.
fcdf(f,ndf,fdf[,tail]) Computes the F cumulative distribution function at f, with degrees of freedom of the numerator variance ndf and denominator variance fdf. tail determines the returned probability is the lower tailed or upper tailed.
gamcdf(g,a,b[,tail]) Computes the lower/upper tail probability for gamma variate g with real degrees of freedom, using shape parameter a and scale parameter b. tail determines the returned probability is the lower tailed or upper tailed.
hygecdf(k,m,n,l) Computes the lower tail probabilities in a given value, associated with a hypergeometric distribution using the corresponding parameters.

\begin{aligned}hygecdf(k, m, n, l)&=P(X\leq k)=\sum_{i=0}^kP(X=i)\\&=\sum_{i=0}^k\frac {{m \choose i}{n-m \choose l-i}  }{{n \choose l} }\end{aligned}

where n is the population size, m the number of success states in the population, and l the number of samples drawn.

logncdf(x,mu,sigma[,tail])

(2015 SR0)

Computes the probabilities of the specified tail type tail in a given value x, associated with a Lognormal distribution using the corresponding parameters mu and sigma. Lower tail probability will return if tail is not specified.
ncbetacdf(x,a,b,lambda) Computes the cdf with the lower tail of the non-central beta distribution.

\begin{aligned}ncbetacdf(x, a, b, lambda)&=P(B\leq \beta )\\&=\sum_{j=0}^\infty e^{-\lambda /2}\frac{(\lambda /2)^j}{j!}P_b(B\leq \beta )\end{aligned}
where

 P_b(B\leq \beta )=\frac{\Gamma (a+b)}{\Gamma (a)\Gamma (b)}\int_0^\beta B^{a-1}(1-B)^{b-1}dB
which is the central beta probability function or incomplete beta function.
ncchi2cdf(x,f,lambda) Computes the probability associated with the lower tail of the non-central chi-square distribution.

ncchi2cdf(x, f, lambda)\\=P(X\le x: \nu;\lambda)\\=\sum_{j=0}^\infty {e^{-\frac{\lambda}{2}}\frac{{(\lambda/2)}^j}{j!}P(X\le x:\nu+2j;0)}
where P(X\le x:\nu+2j;0) is a central \chi^2 with \nu+ 2j degrees of freedom.

ncfcdf(f,df1,df2,lambda) Computes the probability associated with the lower tail of the non-central digamma or variance-ratio distribution.

ncfcdf(f, df1, df2, lambda)=P(\digamma \leq f)=\int_\lambda ^f P(\digamma )d\digamma,

Where

\begin{aligned}P(\digamma )&=\sum_{j=0}^\infty e^{-\lambda /2}\frac{(\lambda /2)^j}{j!}\cdot\frac{(\nu _1+2j)^{(\nu _1+2j)/2}\nu _2^{\nu _2/2}}{B((\nu _1+2j)/2,\nu _2/2)}\\&\cdot u^{(\nu _1+2j-2)/2}\left[ \nu _2+(\nu _1+2j)u\right] ^{-(\nu _1+2j+\nu _2)/2}\end{aligned}

and B\left( \cdot ,\cdot \right) is the beta function.

nctcdf(t,df,delta[,maxiter]) Computes the lower tail probability for the non-central Student's t-distribution.

\begin{aligned}nctcdf&(t, \nu, \delta, maxiter)=P(T\leq t)\\&=C_\nu \int_0^\infty (\frac 1{\sqrt{2\pi }}\int_{-\infty }^{\alpha u-\delta }e^{-x^2}dx)u^{v-1}e^{-u^2/2}du \end{aligned}
with

C_\nu =\frac 1{\Gamma (\frac 12\nu )2^{(\nu -2)/2}},\ \alpha =\frac t{\sqrt{\nu }},\ \nu >0

normcdf(x[,tail]) Cmputes the probabilities of the specified tail type tail in a given value x, associated with a normal cumulative distribution.
poisscdf(k,lambda) Computes the lower tail probabilities in given value k, associated with a Poisson distribution using the corresponding parameters in lambda.

P(X\leq k)=\sum_{i=0}^kP(X=i)=\sum_{i=0}^ke^{-\lambda }\frac{\lambda ^k}{k!}

srangecdf(q,v,group) Computes the probability associated with the lower tail of the distribution of the Studentized range statistic.

\begin{aligned}P(q)&=C\int_0^{+\infty }x^{\nu -1}e^{-\nu x^2/2}\{r\int_{-\infty }^{+\infty }\Phi (y)\\&\cdot\left[\Phi (y)-\Phi (y-qx)\right]^{r-1}dy\}dx\end{aligned}

where C=\frac{\nu ^{\nu /2}}{\Gamma (\nu /2)2^{\nu /2-1}}, \Phi (y)=\int_{-\infty }^y\frac 1{\sqrt{2\pi }}e^{-t^2/2}dt

tcdf(t,df[,tail]) Computes the probabilities of the specified tail type tail, associated with a cumulative distribution function of Student's t-distribution with the degree of freedom df.
wblcdf(x,a,b) Computes the lower tail Weibull cumulative distribution function for value x using the parameters a and b.

\begin{aligned}P(X<x|a,b)&=\int_0^xba^{-b}t^{b-1}e^{-(\frac ta)^b}dt\\&=1-e^{-(\frac xa)^b}I_{(0,+\infty )}(x)\end{aligned}

where I_{(0,+\infty )}(x) is the interval on which the Weibull CDF is not zero.

Probability Density Functions (PDF)

Name Brief Description
betapdf(x,a,b) Returns the probability density function of the beta distribution with parameters a and b.

f(B:a,b)=\frac{\Gamma (a+b)}{\Gamma (a)\Gamma (b)}B^{a-1}(1-B)^{b-1}

with 0\leq B\leq 1;a,b>0

binopdf(x,nt,p)

(2015 SR0)

Returns the probability density function of the binomial distribution with parameters nt and p.

f(x|nt, p) = \left( \begin{matrix} nt \\ x \end{matrix}\right)
p^x (1-p)^{nt-x},

where 0 \leq p \leq 1 and x=0,1,2,...,nt.

cauchypdf(x,a,b)

(8.6 SR0)

Cauchy probability density function (aka Lorentz distribution).

f(x| a, b) = \frac{1}{\pi b \left[1 + \left(\frac{x - a}{b}\right)^2\right]}
 = { 1 \over \pi } \left[ { b \over (x - a)^2 + b^2  } \right]

exppdf(x,lambda)

(8.6 SR0)

Returns the probability density function of the exponential distribution with rate parameter lambda, evaluated at the value x.

f(x|\lambda)=\lambda e^{{-x}{\lambda}}, x \geq 0

gampdf(x,a,b)

(8.6 SR0)

Returns the Gamma probability density with parameters a and b.

f(x|a,b)=\frac 1{b^a\Gamma (a)}x^{a-1}e^{\frac{-x}b}

To obtain the scale and shape parameters a and b from a Gamma distributed dataset, you can use estimation function gamfit.

ks2density(x,y,vx,vy,wx,wy)

(2015 SR0)

Returns the 2D kernel density at point (x, y) with respect to a function established by dataset (vx, vy) with scale (wx, wy).

z= \frac{1}{n} \sum_{i=1}^{n} \frac{1}{ 2\pi w_x w_y }  \exp \left(-\frac{(x-\text{vx}_i)^2}{2w_x ^2} - \frac{(y-\text{vy}_i)^2}{2w_y^2} \right)

where n is the number of elements in vector vx or vy, index i indicates the ith element in vx or vy and optimal scales (wx, wy) are determined by estimation function kernel2width.

ksdensity(x,vx,w)

(2015 SR0)

Returns the kernel density at x for a given vector vx with a bandwidth w.

f(x|\text{vx},w)=\frac{1}{n}\sum_{i=1}^n \frac{1}{\sqrt{2\pi}w}e^{\frac{-(x-\text{vx}_i)^2}{2w^2}}

where n is the size of vector vx, index i indicates the ith element in vector vx and the optimal bandwidth w can be determined by the estimation function kernelwidth.

lappdf(x,mu,b)

(8.6 SR0)

Laplace probability density function.

\begin{aligned}f(x|a,b)& = \frac{1}{2b} \exp \left( -\frac{|x-a|}{b} \right) \,\!\\&  = \frac{1}{2b}
    \left\{\begin{matrix}
      \exp \left( -\frac{a-x}{b} \right) & \mbox{if }x < a
      \\[8pt]
      \exp \left( -\frac{x-a}{b} \right) & \mbox{if }x \geq a
    \end{matrix}\right.\end{aligned}

lognpdf(x,mu,sigma)

(8.6 SR0)

Returns values at X of the lognormal probability density function with distribution parameters mu and sigma.

f(x|\mu ,\sigma )=\frac 1{x\sigma \sqrt{2\pi }}e^{\frac{-(\ln x-\mu )}{2\sigma ^2}}

normpdf(x,mu,sigma)

(8.6 SR0)

Computes the probability density function at each of the values in X using the normal distribution with mean mu and standard deviation sigma.

f(x|\mu ,\sigma )=\frac 1{x\sigma \sqrt{2\pi }}e^{\frac{-(x-\mu )^2}{2\sigma ^2}}

poisspdf(x,lambda)

(8.6 SR0)

Computes the Poisson probability density function at each of the values in X using mean parameters in lambda.

f(x|\lambda )=\frac{\lambda ^x}{x!}e^{-\lambda }I_{(0,1,...)}(x)

wblpdf(x,a,b)

(8.6 SR0)

Returns the probability density function of the Weibull distribution with parameters a and b.

P(x {\vert}a,b)=ba^{-b}x^{b-1}e^{-(\frac xa)^b}

To obtain the scale and shape parameters a and b from a Weibull distributed dataset, you can use estimation function wblfit.

Inverse Cumulative Distribution Functions (INV)

Name Brief Description
betainv(p,a,b) Returns the inverse of the cumulative distribution function for a specified beta distribution.
chi2inv(p,df) Computes the inverse of the chi-square cumulative density function for the corresponding probabilities in X with parameters specified by nu.


P(X\leq x_p)=p=\frac 1{2^{\nu /2}\Gamma (\nu /2)}\int_0^{x_p}X^{\nu /2-1}e^{X/2}dX

finv(p,df1,df2) Computes the inverse of F cumulative density function at p, with parameters df1 and df2.

f_p=finv(p, df1, df2) \begin{aligned}P(F\leq f_p)=
& \frac{\nu _1^{\nu_1/2}\nu _2^{\nu _2/2}\Gamma ((\nu _1+\nu _2)/2)}{\Gamma (\nu _1/2)\Gamma (\nu _2/2)}\\ & \cdot \int_0^{f_p}F^{(\nu _1-2)/2}(\nu _1F+\nu _2)^{-(\nu _1+\nu _2)/2}dF\end{aligned}

where \nu_1,\nu_2 > 0 ;   0 \le f_p < \infty

gaminv(p,a,b) Computes the inverse of Gamma cumulative density function at p , with parameters a and b.

P(G\leq g_p)=\frac 1{\beta ^\alpha \Gamma (\alpha )}\int_0^{g_p}G^{\alpha -1}e^{-G/\beta }dG

where 0\leq g_p<\infty ;\alpha ,\beta >0

logninv(p,mu,sigma)

(2015 SR0)

Computes the deviate,x, associated with the given lower tail probability,p, of the Lognormal distribution with parameters mu and sigma.

p=\int_{0}^{x_p}\frac{1}{t\sqrt{2\pi}\sigma}e^{-\frac{\left(ln(t)-\mu\right)^2}{2\sigma^2}}dt

where 0 <x_p

norminv(p) Computes the deviate, x, associated with the given lower tail probability, p, of the standardized normal distribution.

 p=\frac 1{\sqrt{2\pi }}\int_{-\infty }^{x_p}e^{-u^2/2}du

where -\infty <x_p<\infty

srangeinv(p,v,ir) Computes the deviate, x, associated with the lower tail probability of the distribution of the Studentized range statistic.

q=\frac{\max (x_i)-\min (x_i)}{ \hat{\sigma _e} }

tinv(p,df) Computes the deviate associated with the lower tail probability of Student's t-distribution with real degrees of freedom.

P(T\leq t_p)=\frac{\Gamma ((\nu +1)/2)}{\sqrt{\pi \nu }\Gamma (\nu /2)}\int_{-\infty }^{t_p}[1+\frac{T^2}\nu ]^{-(\nu +1)/2}dT ,  \nu \geq 1

wblinv(p,a,b) Computes the inverse Weibull cumulative distribution function for the given probability using the parameters a and b.

x_p=[aln(\frac 1{1-p}]^{(\frac 1b)}I_{[0,1]}(p)

Data Generation Functions

Two functions in this category, rnd()/ran() and grnd(), return a value. All the other functions in this category return a range.

Note: The seeding algorithm for Origin's methods of random number generation was changed for version 2016. For more information, see documentation for the system variable @ran.
Name Brief Description
Data(x1,x2,inc) Takes two values x1 and x2 and creates a dataset, ranging from x1 to x2, with an increment inc. If x1 = x2, function returns inc number of points with values = x1. Default for inc = 1. examples: col(A) = data(0,100,5) fills column A with numbers from 0 to 100, by increment = 5.
  • col(A) = data(10, 10, 5) fills the first five rows of column A with the number 10.
  • col(A) = data(1,100) fills column A with numbers from 1 to 100, by increment = 1.
grnd() Returns a value from a normally (Gaussian) distributed sample, with zero mean and unit standard deviation. The initial value and sequence of values are the same for each Origin session. No argument is needed. Commonly, the function is used to return a random value from a normal distribution of known mean and standard deviation, using the following expression: grnd()*sd+m. example:
  • aa=grnd()*0.30855+0.45701 might return 0.33882089669989.
normal(npts[,seed]) Returns a range of npts. Values are random numbers with normal distribution (zero mean, unit standard deviation). If seed is omitted, a different seed is used each time the function is called. Can be used to fill a column with normally distributed random values, given a mean and standard deviation: normal(npts)*sd+m. example:
  • col(1) = normal(100)*2+5 fills column 1 with 100 random values with mean = 5 and sd = 2.
pattern(vd, onerepeat, seqrepeat) and pattern(x1,x2,inc,onerepeat,seqrepeat) Returns the generated patterned numeric or text data. pattern(vd, onerepeat, seqrepeat) will take input string series vd and repeat each element in vd onerepeat times and then repeat the whole string series seqrepeat times. pattern(x1,x2,inc,onerepeat,seqrepeat) will create a dataset range from x1 to x2 with increment inc, each element in the dataset will be repeated onerepeat times and then the whole dataset will be repeated seqrepeat times. Note that the elements in string series can be separated by pipe (|), comma(,), or space, or a range variable. example:
  • col(a)=pattern("Origin Lab", 2, 2); fills column A with "Origin Origin Lab Lab Origin Origin Lab Lab".
  • col(b)=pattern(1,3,1,2,2); fill column B with "1 1 2 2 3 3 1 1 2 2 3 3".
Poisson(n, mean [,seed]) Returns n random integers having a Poisson distribution with mean. Optional seed provides a seed for the number generator. example:
  • col(1)=Poisson(100,5,1) fills column 1 with 100 random values having a Poisson distribution with mean of 5.
ran([seed]) and rnd([seed]) Returns a value between 0 and 1 from a uniformly distributed sample. If option seed is positive, sets the seed and returns 0. If seed is ≤ 0 or if no argument is provided, returns the next number in the random number sequence.
uniform(npts [,seed]) and uniform(npts, vd) Returns a range of npts. Option seed can be a value, data range, delimited string ("|", "," or space) or string array. If seed is a value, returns uniformly distributed random numbers. If seed is a data range or string array, returned values are randomly chosen from the data range or string(s). If seed is omitted, a different seed is used each time the function is called. This function also accepts a vector vd as an argument.

Lookup & Dataset Info Functions

Name Brief Description
Findmasks(vd) Takes a vector vd containing masked data, returns a vector of the indexes of masked points. example:
  • dataset aa=findmasks(col(b)); col(d)=aa fills column D with the row indices of masked data in column B.
Firstpoint(vd) Takes a vector vd(dataset), return the first value of dataset vd. example:
  • aa = firstpoint(col(A)); get the first value of column A and assign it to variable aa.
Index(d,vd[,n]) Takes a vector vd of strictly monotonic data, returns the index of data point d. If option n = 0 (default) finds the value that is equal or closest to the value of d; n = 1 looks for ≤ d; n = 2 looks for ≥ d. If vd is not strictly monotonic or contains text, returns -2. example:
  • index(170,col(1)); returns the index of the value in column 1 that is equal or closest to 170.
Lastpoint(vd) Takes a vector vd(dataset), return the last value of dataset vd. example:
  • aa = lastpoint(col(A)); get the last value of column A and assign it to variable aa.
List(val,vd) Takes a vector vd, returns the dataset index number for first occurrence of val. If val is not found, the function returns 0. example:
  • list(3, col(A)) searches column A and returns the (row) index number where the value 3 first occurs.
lookup(str$, vs, vref[, option, Case]) and lookup(str$, vs, vref[, option, Case])$

(2015 SR0)

Searches for string str$ in vector vs and returns the value in vector vref (numeric or string) with the same index. Precision of match is determined by option. When Case = 0(default), the function is not case sensitive. example:
  • string str1$ = Lookup("FSA", col(A), col(B))$; searches for string FSA in column A and assigns the value in the cell in column B that has the same index number as string FSA, to str1$.
table(vd, vref, d[, option]) and table(vd, vref$, d[, option])$

(2015 SR0)

Searches for value d in vector vd, returns value in vref with the same index number. The return value can be numeric or string, depending on vref. Parameter option modifies search for parameter d: -1 (default) = function performs linear interpolation on vd vs vref and returns the interpolated value; 0 = finds nearest value that is ≤ d; 1 = finds nearest value that is ≥ d; 2 = finds nearest or equal value.
unique(vs[, sort, occurrence])

(2018b)

Takes a vector vs and returns the unique values. Parameter sort decides whether to sort the returned unique values: 1 (default) = sort ascendingly; 0 = without sorting; 2 = sort descendingly. occurrence specifies how to reduce the duplicated values: 0 (default) = remain the first duplicated value; 1 = remain the last duplicated value.
Xindex(x,vd[,option]) Takes a vector vd (Y dataset), returns the row index number of the value in the X dataset associated with vd, that is closest to value x. option determines which index is returned: 0 (default) = equal or closest from the left; 1 = equal or closest from the right; 2 = equal or closest, left or right. Requirements: (1) vd must be a designated Y column; (2) name of vd must correspond to an actual Y dataset; (3) the X dataset must be sorted in ascending order. example:
  • xindex(5,book1_g,1) returns the row index number for the x value that is equal or to the right of, (≥) 5.
Xvalue(n,vd) Takes a vector vd (Y or Z dataset), returns the corresponding X value at row number n. example:
  • xvalue(20,book4_c) returns the x value associated with column C at 20th row in column C of Book4.
Errof(vd) Takes a vector vd (dataset), returns the dataset (xEr/yEr) containing the error values of vd. example:
  • %a=errof(book1_b)might return book1_c.
hasx(vd) Takes a dataset vd and if vd is plotted against an x dataset in the active (graph) layer, returns 1; if not, returns 0. example:
  • aa=hasx(book1_b) returns 1 if the active graph layer contains a plot of column B.
IsMasked(n,vd) Takes a vector vd and if n = 0, returns the number of masked points. If n = data point index number, returns 1 if masked, 0 if not masked. example:
  • ismasked(0,book1_b) returns 77 if there are 77 masked points in dataset book1_b.
  • ismasked(8,book1_b) returns 0 if point n8 is not masked, or 1 if it is masked.
Xof(vd) Takes a vector name vd which is a Y dataset with an associated X dataset and returns a string containing the name of the X dataset. example:
  • %a = xof(book1_b); book1_c = %a; // e.g. after substitution : book1_c = book1_a puts the name of the X dataset associated with the Y dataset in column B and fills column C with the X values.

Data Manipulation Functions

Name Brief Description
asc(str$) Takes an input string and returns the ASCII code (decimal) for the first character in the string. This function does the same thing as the code function. example:
  • aa = asc($100); aa = returns 36.
corr(vx,vy,k[, n]) Takes two datasets vx and vy, a lag size k and returns the correlation between the two datasets. Option n is the number of points. Lag parameter k can be scalar or vector. When k is a vector, function returns a vector; when a scalar, returns a scalar. example:
  • corr(col(1),col(2),data(1,10),50) returns the cross-correlation of the first 50 points of col(1) with col(2), using a lag size from 1 to 10.
peaks(vd, width, minht) Takes a vector vd, returns dataset of indices of peaks found using width and minht. width is number of points to each side of the test point. minht is in Y axis units. A peak at index i is minht greater than the data value at (i-width) or (i+width). example:
  • peaks(col(B), 3, 0.1) returns dataset of peak indices.
sort(vd) Takes a dataset, sorts it in ascending order and returns it. example:
  • %a=sort(book4_c); book4_d=%a takes the data in col(C), sorts it and fills col(D) with the result.
treplace(vd,val1,val2[, cnd]) Replaces a dataset value with another when conditions cnd are met. Takes a dataset vd, compares each value to val1 with respect to option cnd and either replaces with val2 (or -val2) when comparison is true; or when false retains value or replaces with missing value ("--").

NAG Special Functions

Airy

Name Brief Description
airy_ai(x) Evaluates an approximation to the Airy function, Ai(x).
airy_ai_deriv(x) Evaluates an approximation to the derivative of the Airy function Ai(x).
airy_bi(x) Evaluates an approximation to the Airy function Bi(x).
airy_bi_deriv(x) Evaluates an approximation to the derivative of the Airy function Bi(x).

Bessel

Name Brief Description
bessel_i0(x) Bessel i0. Evaluates an approximation to the modified Bessel function of the first kind, I0(x).
bessel_i0_scaled(x) Bessel i0 scaled. Evaluates an approximation to e^{-|x|}I_0(x)
bessel_i1(x) Bessel i1. Evaluates an approximation to the modified Bessel function of the first kind,I_1(x).
bessel_i1_scaled(x) Bessel i1 scaled. Evaluates an approximation to e^{-|x|}I_1(x)
bessel_i_nu(x,n) Bessel i nu. Evaluates an approximation to the modified Bessel function of the first kind I\nu/4 (x)
bessel_i_nu_scaled(x,n) Bessel i nu scaled. Evaluates an approximation to the modified Bessel function of the first kind e^{-x}I_{\frac \nu 4}(x)
bessel_j0(x) Bessel j0. Evaluates the Bessel function of the first kind,J_0(x)
bessel_j1(x) Bessel j1. Evaluates an approximation to the Bessel function of the first kind J_1(x)
bessel_k0(x) Bessel k0. Evaluates an approximation to the modified Bessel function of the second kind,K_0\left( x\right)
bessel_k0_scaled(x) Bessel k0 scaled. Evaluates an approximation to e^xK_0\left( x\right)
Bessel_k1(x) Bessel k1. Evaluates an approximation to the modified Bessel function of the second kind,K_1\left( x\right)
bessel_k1_scaled(x) Bessel k1 scaled. Evaluates an approximation to e^xK_1\left( x\right)
bessel_k_nu(x,n) Bessel k nu. Evaluates an approximation to the modified Bessel function of the second kind K_{\upsilon /4}(x)
bessel_k_nu_scaled(x,n) Bessel k nu scaled. Evaluates an approximation to the modified Bessel function of the second kind e^{-x}K_{\upsilon /4}(x)
bessel_y0(x) Bessel y0. Evaluates the Bessel function of the second kind, Y_0, x > 0. The approximation is based on Chebyshev expansions.
bessel_y1(x) Bessel y1. Evaluates the Bessel function of the second kind, Y_1, x > 0. The approximation is based on Chebyshev expansions.

Error

Name Brief Description
erf(x) The error function (or normal error integral).
erfc(x) Calculates an approximate value for the complement of the error function.
erfcinv(dy) Computes the value of the inverse complementary error function for specified y.
erfcx(x) The scaled complementary error function.
erfinv(dy) The inverse error function.

Gamma

Name Brief Description
gamma(x) Gamma function. Evaluates \Gamma (x)=\int_0^\infty t^{x-1}e^{-t}dt
incomplete_gamma(a,x) Incomplete gamma function.
log_gamma(x) Log gamma function. Evaluates \ln \Gamma (x).x > 0.
real_polygamma(x,k) Polygamma function. Evaluates an approximation to the kth derivative of the psi function \psi (x)

Integral

Name Brief Description
cos_integral(x) NAG cosine integral function. Evaluates C_i\left( x\right) =y+\ln x+\int_0^x\frac{\cos u-1}udu
cumul_normal(x) Evaluates the cumulative Normal distribution function.
cumul_normal_complem(x) Evaluates an approximate value for the complement of the cumulative normal distribution function.
elliptic_integral_rc(x,y) NAG elliptical integral of the first kind. Calculates an approximate value for the integral R_c(x,y)=\frac 12\int_0^\infty \frac{dt}{\sqrt{t+x}(t+y)}
elliptic_integral_rd(x,y,z) NAG symmetrised elliptic integral of the second kind. Calculates an approximate value for the integral R_D(x,y,z)=\frac 32\int_0^\infty \frac{dt}{\sqrt{(t+z)(t+y)(t+z)^3}}
elliptic_integral_rf(x,y,z) NAG symmetrised elliptic integral of the first kind. Calculates an approximation to the integral R_F(x,y,z)=\frac 12\int_0^\infty \frac{dt}{\sqrt{(t+x)(t+y)(t+z)}}
elliptic_integral_rj(x,y,z,r) NAG symmetrised elliptic integral of the third kind. Calculates an approximation to the integral R_J(x,y,z,\rho )=\frac 32\int_0^\infty \frac{dt}{(t+\rho )\sqrt{(t+x)(t+y)(t+z)}}
exp_integral(x) NAG exponential integral function. Evaluates E_1(x)=\int_x^\infty \frac{e^{-u}}udu , x>0
fresnel_c(x) NAG Fresnel integral function C. Evaluates an approximation to the Fresnel Integral C(x)=\int_0^x\cos \left( \frac \pi 2t^2\right)dt.
fresnel_s(x) NAG Fresnel integral function S. Evaluates an approximation to the Fresnel Integral S(x)=\int_0^x\sin \left(\frac \pi 2t^2\right)dt.
sin_integral(x) NAG sine integral function. Evaluates Si(x)=\int_0^x\frac{\sin u}udu

Kelvin

Name Brief Description
kelvin_bei(x) Evaluates an approximation to the Kelvin function bei x.
kelvin_ber(x) Evaluates an approximation to the Kelvin function ber x.
kelvin_kei(x) Evaluates an approximation to the Kelvin function kei x.
kelvin_ker(x) Evaluates an approximation to the Kelvin function ker x.

Miscellaneous

Name Brief Description
jacobian_theta(k,x,q) NAG Jacobian theta function. Computes the value of one of the Jacobian theta functions \theta _0 (x, q), \theta _1 (x, q), \theta _2 (x, q), \theta _3 (x, q) or \theta _4 (x, q) for a real argument x and non-negative q ≤ 1..
lambertW(x,branch,offset) Calculates an approximate value for the real branches of Lambert's W function.

Fitting Functions

Multi-parameter functions in this category are used as built-in functions for Origin's nonlinear fitter. You can view the equation, a sample curve, and the function details for each multi-parameter function by opening the NLFit (Analysis: Fitting: Nonlinear Curve Fit). Then select the function of interest from the Function selection page.

For additional documentation on all the multi-parameter functions available from Origin's nonlinear curve fit, see this PDF on the OriginLab website. This document includes the mathematical description, a sample curve, a discussion of the parameters, and the LabTalk function syntax for each multi-parameter function.

Origin Basic Functions

Name Brief Description
Allometric1(x,a,b) Classical Freundlich Model, has been used in the study of allometry.

y=ax^b

Beta(x,y0,xc,A,w1,w2,w3) Beta peak function for use in chromatography and spectroscopy.

\begin{aligned}y=&y_0+A\left[1+\left(\frac{w_2+w_3-2}{w_2-1}\right)\left(\frac{x-x_c}{w_1}\right)\right]^{w_2-1}\\
&\cdot\left[1-\left(\frac{w_2+w_3-2}{w_3-1}\right)\left(\frac{x-x_c}{w_1}\right)\right]^{w_3-1}\end{aligned}

Boltzmann(x, A1, A2, x0, dx) Boltzmann Function - produce a sigmoidal curve.

y = A_2 + \frac{A_1-A_2}{1 + e^{(x-x_0)/dx}}

dhyperbl(x,P1,P2,P3,P4,P5) Double Rectangular Hyperbola Function.

y=\frac{P_1x}{P_2+x}+\frac{P_3x}{P_{4+}x}+P_5x

ExpAssoc(x,y0,A1,t1,A2,t2) Two-phase exponential association equation.

y = y_0 + A_1(1 - e^{-x/t_1}) + A_2(1 - e^{-x/t_2})

ExpDec1(x,y0,A1,t1) One-phase exponential decay function with time constant parameter.

y=y_0+Ae^{-x/t}

ExpDec2(x,y0,A1,t1,A2,t2) Two-phase exponential decay function with time constant parameters.

y=y_0+A_1e^{-x/t_1}+A_2e^{-x/t_2}

ExpDec3(x,y0,A1,t1,A2,t2,A3,t3) Three-phase exponential decay function with time constant parameters.

y=y_0+A_1e^{-x/t_1}+A_2e^{-x/t_2}+A_3e^{-x/t_3}

ExpGrow1(x,y0,x0,A1,t1) One-phase exponential growth with time offset, x0 should be fixed.

y=y_0+A_1e^{(x-x_0)/t_1}

ExpGrow2(x, y0, x0, A1, t1, A2, t2) Two-phase exponential growth with time offset, x0 should be fixed.

y = y_0 + A_1e^{(x-x_0)/t_1} + A_2e^{(x-x_0)/t_2}

Gauss(x, y0, xc, w, A) Area version of Gaussian Function.

(y0 = offset, xc = center, w = width, A = area)
y=y_0 + \frac{A}{(w\sqrt{\frac{\pi}{2}}))}e^{-2(\frac{x-x_c}{w})^2}

GaussAmp(x,y0,xc,w,A) Amplitude version of Gaussian peak function.

(y0 = offset, xc = center, w = width, A = amplitude)
y=y_0+Ae^{-\frac{\left( x-x_c\right) ^2}{2w^2}}

Hyperbl(x, P1, P2) Hyperbola funciton, also the Michaelis-Menten model in Enzyme Kinetics.

y=\frac{P_1x}{P_2 + x}

Logistic(x, A1, A2, x0, p) Logistic dose response in Pharmacology/Chemistry.

y=A_2+\frac{A_1-A_2}{1+{(\frac{x}{x_0}})^p}

LogNormal(x,y0,xc,w,A) Probability density function of random variable whose logarithm is normally distributed.

y=y_0+\frac A{\sqrt{2\pi }wx}e^{\frac{-\left[ \ln \frac x{x_c}\right] ^2}{2w^2}}

Lorentz(x, y0, xc, w, A) Lorentzian peak function with bell shape and much wider tails than Gaussian function.

(y0 = offset, xc = center, w = FWHM, A = area)
y = y_0 + \frac{2A}{\pi}\left (\frac{w}{4(x-x_c)^2 + w^2}\right)

Poisson(x,y0,r) Poisson probability density function, a discrete probability distribution.

y=y_0+\frac{e^{-r}r^x}{x!}

Pulse(x, y0, x0, A, t1, P, t2) Exponential pulse function(x >= x0 ? y : 0).

\begin{aligned}&y = 0~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~(x < x_0)\\
&y=y_0+A\left( 1-e^{-\frac{x-x_0}{t_1}}\right) ^p e^{-\frac{x-x_0}{t_2}}~~(x\ge x_0)\end{aligned}

Rational0(x,a,b,c) Rational function with 1st order of numerator and 1st order of denominator.

y=\frac{b+cx}{1+ax}

Sine(x,y0,xc,w,A) Sine wave function oscillates around a specified value.

y=y_0+A\sin \left( \pi \frac{x-x_c}w\right)

Voigt(x,y0,xc,A,wG,wL) Convolution of a Gaussian function and a Lorentzian function.

(y0 = offset, xc = center, A =area, wG = Gaussian FWHM, wL = Lorentzian FWHM)
\begin{aligned}y=&y_0+A\frac{2\ln 2}{\pi ^{3/2}}\frac{W_L}{W_G^2}\\
&\int_{-\infty }^\infty \frac{e^{-t^2}}{\left( \sqrt{\ln 2}\frac{W_L}{W_G}\right) ^2+\left( \sqrt{4\ln 2}\frac{x-x_c}{W_G}-t\right) ^2}dt\end{aligned}

Implicit

Name Brief Description
Circle(x,y,xc,yc,r) Implicit circle equation with parameters circle center and radius.

f=\left(x-x_c\right)^2+(y-y_c)^2-r^2

Ellipse(x,y,xc,yc,a,b) Implicit ellipse equation whose major and minor axes coincide with XY axes.

f = \left(\frac{x-x_c}{a}\right)^2 + \left(\frac{y-y_c}{b}\right)^2 - 1

ModDiode(V,I,T,Is,Rs,n,Rsh) Implicit modified diode equation.

f=I_s\left(e^{\frac{q(V-I\cdot R_s)}{nkT}}-1 \right)+\frac{V-I\cdot R_s}{R_{sh}}-I

PlaneMod(x,y,z,theta,phi,d) Modified implicit plane function defined by its normal direction.

f = \sin\left(\theta\right)\cos(\phi)x + \sin(\theta)\sin(\phi)y + \cos(\theta)z + d

SolarCellIV(V,I,T,Is,Rs,n,Rsh,IL) Solar cell I-V curve.

f=I+I_s\left(e^{\frac{q(V+I\cdot R_s)}{nkT}}-1 \right)+\frac{V+I\cdot R_s}{R_{sh}}-I_L

Exponential

Name Brief Description
Asymptotic1(x,a,b,c) Asymptotic Regression Model - 1st parameterization.

y=a-bc^x

BoxLucas1(x,a,b) Box Lucas model, same as one-phase association equation with zero offset.

y=a(1-e^{-bx})

BoxLucas1Mod(x,a,b) a parameterization of Box Lucas Model.

y=a(1-b^x)

BoxLucas2(x,a1,a2) Box Lucas model for two phase.

y=\frac{a_1}{a_1-a_2}(e^{-a_2x}-e^{-a_1x})

Chapman(x,a,b,c) Chapman-Richards function to describe the cumulative growth curve.

y=a(1-e^{-bx})^c

Exp1p1(x,A) One-Parameter Exponential Function.

y=e^{x-A}

Exp1p2(x,A) One-Parameter Exponential Function.

y=e^{-Ax}

Exp1p2Md(x,B) One-Parameter Exponential Function.

y=B^x

Exp1P3(x,A) One-Parameter Exponential Function.

y=Ae^{-Ax}

Exp1P3Md(x,B) One-Parameter Exponential Function.

y=-\ln(B)B^x

Exp1P4(x,A), One-parameter asymptotic exponential function.

y=1-e^{-Ax}

Exp1P4Md(x,B) Another form of one-parameter asymptotic exponential function.

y=1-B^x

Exp2P(x,a,b) Two-Parameter Exponential Function.

y=ab^x

Exp2PMod1(x,a,b), Two-Parameter Exponential Function.

y=ae^{bx}

Exp2PMod2(x,a,b), Two-Parameter Exponential Function.

y=e^{a+bx}

Exp3P1(x,a,b,c), Inverted offset exponential function.

y=ae^{\frac b{x+c}}

Exp3P1Md(x,a,b,c), Another form of inverted offset exponential function.

y=e^{a+\frac b{x+c}}

Exp3P2(x,a,b,c), Exponential function whose exponent is a 2nd order polynomial.

y=e^{a+bx+cx^2}

ExpAssoc(x,y0,A1,t1,A2,t2) Two-phase exponential association equation.

y = y_0 + A_1(1 - e^{-x/t_1}) + A_2(1 - e^{-x/t_2})

ExpAssoc1(x,TD,Yb,A,Tau)

(2017 SR0)

One-phase exponential association equation.

y = Yb + A\left(1 - e^{-\frac {(x-TD)}{Tau}}\right)

ExpAssoc2(x,TD1,TD2,Yb,A1,A2,Tau1,Tau2)

(2017 SR0)

Biphasic exponential association equation.

y=\left\{\begin{matrix}
Yb+A_{1}\left ( 1-e^{-\frac {(x-TD_{1})}{Tau_{1}}} \right ) \quad \quad \quad \quad \quad \quad\quad\quad \quad \quad x<TD_{2}\\
Yb+A_{1}\left ( 1-e^{-\frac {(x-TD_{1})}{Tau_{1}}}\right )+A_{2}\left ( 1-e^{-\frac {(x-TD_{2})}{Tau_{2}}}\right )  x\geq TD_{2}
\end{matrix}\right.

ExpAssocDelay1(x,TD,Yb,A,Tau)

(2017 SR0)

One-phase exponential association equation with plateau before exponential begins.

y=\left\{\begin{matrix}
Yb \qquad \qquad\qquad \qquad  \quad \quad x<TD\\
Yb+A\left ( 1-e^{-\frac {(x-TD)}{Tau}}\right ) \quad x\geq TD
\end{matrix}\right.

ExpAssocDelay2(x,TD1,TD2,Yb,A1,A2,Tau1,Tau2)

(2017 SR0)

Biphasic exponential association equation with plateau before exponential begins.

y=\left\{\begin{matrix}
Yb \qquad \qquad\qquad \qquad \qquad\qquad \qquad\qquad \quad \quad \quad\quad x<TD_{1}\\
Yb+A_{1}\left ( 1-e^{-\frac {(x-TD_{1})}{Tau_{1}}} \right ) \quad \quad \quad \quad \quad \quad\quad TD_{1}\leq x<TD_{2}\\
Yb+A_{1}\left ( 1-e^{-\frac {(x-TD_{1})}{Tau_{1}}}\right )+A_{2}\left ( 1-e^{-\frac {(x-TD_{2})}{Tau_{2}}}\right )  x\geq TD_{2}
\end{matrix}\right.

Exponential(x,y0,A,R0) Exponential growth function with rate constant parameter.

y=y_0+Ae^{R_0x}

ExpDec1(x,y0,A1,t1) One-phase exponential decay function with time constant parameter.

y=y_0+Ae^{-x/t}

ExpDec2(x,y0,A1,t1,A2,t2) Two-phase exponential decay function with time constant parameters.

y=y_0+A_1e^{-x/t_1}+A_2e^{-x/t_2}

ExpDec3(x,y0,A1,t1,A2,t2,A3,t3) Three-phase exponential decay function with time constant parameters.

y=y_0+A_1e^{-x/t_1}+A_2e^{-x/t_2}+A_3e^{-x/t_3}

ExpDecay1(x,y0,x0,A1,t1) One-phase exponential decay function with time offset, x0 should be fixed.

y=y_0+A_1e^{-(x-x_0)/t_1}

ExpDecay2(x, y0, x0, A1, t1, A2, t2) Two-phase exponential decay function with time offset, x0 should be fixed.

y = y_0 + A_1e^{-(x-x_0)/t_1} + A_2e^{-(x-x_0)/t_2}

ExpDecay3(x,y0,x0,A1,t1,A2,t2,A3,t3) Three-phase exponential decay function with time offset, x0 should be fixed.

\begin{aligned}y=&y_0+A_1e^{-(x-x_0)/t_1}+A_2e^{-(x-x_0)/t_2}+\\
&A_3e^{-(x-x_0)/t_3}\end{aligned}

ExpGro1(x,y0,A1,t1) One-phase exponential growth function with time constant parameter.

y=y_0+A_1e^{x/t_1}

ExpGro2(x,y0,A1,t1,A2,t2) Two-phase exponential growth function with time constant parameters.

y=y_0+A_1e^{x/t_1}+A_2e^{x/t_2}

ExpGro3(x,y0,A1,t1,A2,t2,A3,t3) Three-phase exponential growth function with time constant parameters.

y=y_0+A_1e^{x/t_1}+A_2e^{x/t_2}+A_3e^{x/t_3}

ExpGrow1(x,y0,x0,A1,t1) One-phase exponential growth with time offset, x0 should be fixed.

y=y_0+A_1e^{(x-x_0)/t_1}

ExpGrow2(x, y0, x0, A1, t1, A2, t2) Two-phase exponential growth with time offset, x0 should be fixed.

y = y_0 + A_1e^{(x-x_0)/t_1} + A_2e^{(x-x_0)/t_2}

ExpGrow3Dec2(x,y0,xc,Ag1,tg1,Ag2,tg2,Ag3,tg3,Ad1,td1,Ad2,td2)

(2015 SR0)

Exponential function with three growth and two decay phases.


y=\left\{\begin{matrix}
y_{0}+A_{d1}+A_{d2}\qquad \qquad \qquad \qquad \qquad \qquad \qquad \\+A_{g1}\left ( e^{-x_{c}/t_{g1}}-e^{-x/t_{g1}} \right )\qquad\qquad\qquad\qquad\qquad\\+A_{g2}\left ( e^{-x_{c}/t_{g2}}-e^{-x/t_{g2}} \right )\qquad \qquad \qquad \qquad \qquad \\+A_{g3}\left ( e^{-x_{c}/t_{g3}}-e^{-x/t_{g3}} \right )\qquad \qquad \qquad  \quad x\leq x_{c}\\
y_{0}+A_{d1}e^{-\left ( x-x_{c} \right )/t_{d1}}+A_{d2}e^{-\left ( x-x_{c} \right )/t_{d2}}\qquad x>x_{c}
\end{matrix}\right.

ExpGrowDec(x,y0,xc,Ag,tg,Ad,td)

(2015 SR0)

Exponential function with one growth and one decay phases.

y=\left\{\begin{matrix}
y_{0}+A_{d}+A_{g}\left ( e^{-x_{c}/t_{g}}-e^{-x/t_{g}} \right ) \quad x\leq x_{c}\\
y_{0}+A_{d}e^{-\left ( x-x_{c} \right )/t_{d}}\qquad \qquad\qquad \quad x>x_{c}
\end{matrix}\right.

ExpLinear(x,p1,p2,p3,p4) Exponential Linear Combiantion.

y=p_1e^{-x/p_2}+p_3+p_4x

Langevin(x,y0,xc,C) Langevin function used in paramagnetism with three parameters.

\begin{aligned}&y=y_0+C\left( \coth \left( x-x_c\right) -\frac 1{x-x_c}\right) \\
&\coth z=\frac{e^z+e^{-z}}{e^z-e^{-z}}\end{aligned}

LangevinMod(x,y0,xc,C,s)

(2015 SR0)

Scale modified Langevin function.

y=y_0+C\left( \coth \left ( \frac{x - x_c}{s}\right ) -\frac {s}{x-x_c}\right)

cothz=\frac{e^z+e^{-z}}{e^z-e^{-z}}

PIPlatt(x,Pm,alpha)

(2017 SR0)

Model of photosynthesis vs. irradiance curve by Platt

y = P_{m}\cdot tanh(alpha\cdot x/P_{m})

PIPlatt2(x,Ps,alpha,beta)

(2017 SR0)

Model of photosynthesis vs. irradiance curve with photoinhibition by Platt

y = P_{s}\left (1-e^{-\frac {alpha \cdot x}{P_{s}}}\right )e^{-\frac {beta\cdot x}{P_{s}}}

PIWebb(x,Pm,alpha)

(2017 SR0)

Model of photosynthesis vs. irradiance curve by Webb

y = P_{m}\left (1-e^{-\frac {alpha \cdot x}{P_{m}}}\right )

MnMolecular(x,A,xc,k), Monomolecular growth model.

y=A\left( 1-e^{-k\left( x-xc\right) }\right)

MnMolecular1(x,A1,A2,k) Another form of Monomolecular growth model.

y=A_1-A_2e^{-kx}

Shah(x,a,b,c,r) Exponential decay function combined with a linear function.

 y=a+bx+cr^x

Stirling(x,a,b,k) Exponential growth function with slope at zero for parameter.

 y=a+b\left( \frac{e^{kx}-1}k\right)

YldFert(x,a,b,r) Yield-fertilizer model in Agriculture and Learning curve in psychology.

y=a+br^x

YldFert1(x,a,b,k) Yield-fertilizer model in Agriculture and Learning curve in psychology.

 y=a+be^{-kx}

Growth/Sigmoidal

Name Brief Description
BiDoseResp(x,A1,A2,LOGx01,LOGx02,h1,h2,p) Biphasic Dose Response Function.

\begin{aligned}y=&A_1+(A_2-A_1)\bigg[\frac{p}{1+10^{(LOGx01-x)h1}}+\\
&\frac{1-p}{1+10^{(LOGx02-x)h2}}\bigg]\end{aligned}

BiHill(x,Pm,Ka,Ki,Ha,Hi)

(2015 SR0)

Biphasic Hill Equation.

y=\frac{P_{m}}{[1+(\frac{K_{a}}{x})^{H_{a}}][1+(\frac{x}{K_{i}})^{H_{i}}]}

BoltzIV(x,vhalf,dx,gmax,vrev) Transformed Boltzmann function for IV data.

 y=\frac{(x-vrev)\cdot gmax }{1+e^{(x-vhalf)/dx}}

Boltzmann(x, A1, A2, x0, dx) Boltzmann Function - produce a sigmoidal curve.

y = A_2 + (A_1-A_2)/(1 + e^{(x-x0)/dx})

DoseResp(x,A1,A2,LOGx0,p) Dose-response curve with variable Hill slope given by parameter 'p'.

y=A_1+\frac{A_2-A_1}{1+10^{\left( Logx0-x\right) p}}

DoubleBoltzmann(x,y0,A,frac,x01,x02,k1,k2) Double Boltzmann Function, sum of two Boltzmann functions.

y=y_0+A\left[\frac{p}{1+e^{\frac{x-x_{01}}{k_1}}}+\frac{1-p}{1+e^{\frac{x-x_{02}}{k_2}}}\right]

Hill(x,Vmax,k,n) Hill function to determine ligand concentration and maximum number of binding sites.

y=V_{\max }\frac{x^n}{k^n+x^n}

Hill1(x,START,END,k,n) Modified Hill function with offset.

y=V_{\max }\frac{x^n}{k^n+x^n}

Logistic(x, A1, A2, x0, p) Logistic dose response in Pharmacology/Chemistry.

y=A_2+\frac{A_1-A_2}{1+{(\frac{x}{x_0}})^p}

Logistic5(x,Amin,Amax,x0,h,s) Five parameters logistic function.

y = A_{\min} + \frac{A_{\max} - A_{\min}}{\left(1 + \left(\frac{x}{x_0}\right)^{-h}\right)^s}

MichaelisMenten(x,Vmax,Km) Michaelis Menten function to describe relation of concentration of substrate and enzyme velocity.

y=\frac{V_{max}x}{K_m+x}

SGompertz(x,a,xc,k) Gompertz Growth Model for Popuplation Studies, Animal Growth.

y=ae^{-\exp (-k(x-x_c))}

Slogistic1(x,a,xc,k) Sigmoidal Logistic function, type 1.

 y=\frac a{1+e^{-k\left( x-x_c\right) }}

SLogistic2(x,y0,a,Wmax) Sigmoidal Logistic function, type 2.

y=\frac a{1+\frac{a-y_0}{y_0}e^{-4W_{\max }x/a}}

SLogistic3(x,a,b,k) Sigmoidal Logistic function, type 3.

 y=\frac a{1+be^{-kx}}

SRichards1(x,a,xc,d,k) Sigmoidal Richards function, type 1.

 y=\left[ a^{1-d}-e^{-k\left( x-x_c\right) }\right] ^{1/\left( 1-d\right) },d<1

y=\left[ a^{1-d}+e^{-k\left( x-x_c\right) }\right] ^{1/\left( 1-d\right) },d>1

SRichards2(x,a,xc,d,k) Sigmoidal Richards function, type 2.

 y=a\left[ 1+\left( d-1\right) e^{-k\left( x-x_c\right) }\right] ^{1/\left( 1-d\right) },d\neq 1

SWeibull1(x,A,xc,d,k) Sigmoidal Weibull funciton, type 1.

 y=A(1-e^{-\left( k\left( x-x_c\right) \right) ^d})

SWeibull2(x,a,b,d,k) Sigmoidal Weibull function, type 2.

 y=A-\left( A-B\right) e^{-\left( kx\right) ^d}

Hyperbola

Name Brief Description
Dhyperbl(x,P1,P2,P3,P4,P5) Double Rectangular Hyperbola Function.

y=\frac{P_1x}{P_2+x}+\frac{P_3x}{P_{4+}x}+P_5x

Hyperbl(x, P1, P2) Hyperbola funciton, also the Michaelis-Menten model in Enzyme Kinetics.

y=\frac{P_1x}{P_2 + x}

HyperbolaGen(x,a,b,c,d) Generalized Hyperbola function.

y=a-\frac b{\left( 1+cx\right) ^{1/d}}

HyperbolaMod(x,T1,T2) Modified hyperbola function.

y=\frac x{\theta _1x+\theta _2}

RectHyperbola(x,a,b) Rectangular Hyperbola Function.

y=a\frac{bx}{1+bx}

Logarithm

Name Brief Description
Bradley(x,a,b) Double logarithmic reciprocal function.

y=a\ln(-b\ln(x))

Log2P1(x,a,b), Two-parameter Logarithm function.

y=b\ln(x-a)

Log2P2(x,a,b) Logarithmic transform function.

y=\ln(a+bx)

Log3P1(x,a,b,c) Linear logarithmic transform function.

y=a-b\ln\left( x+c\right)

Logarithm(x,A) One-parameter logarithm.

y=\ln(x-A)

Peak Functions

Name Brief Description
Asym2Sig(x,y0,xc,A,w1,w2,w3) Asymmetric double Sigmoidal function.

y=y_0+A\frac 1{1+e^{-\frac{x-x_c+w_1/2}{w_2}}}\left(1-\frac 1{1+e^{-\frac{x-x_c-w_1/2}{w_3}}}\right)

Beta(x,y0,xc,A,w1,w2,w3) Beta peak function for use in chromatography and spectroscopy.

\begin{aligned}y=&y_0+A\left[1+\left(\frac{w_2+w_3-2}{w_2-1}\right)\left(\frac{x-x_c}{w_1}\right)\right]^{w_2-1}\\&\cdot\left[1-\left(\frac{w_2+w_3-2}{w_3-1}\right)\left(\frac{x-x_c}{w_1}\right)\right]^{w_3-1}\end{aligned}

Bigaussian(x,y0,xc,H,w1,w2) Bi-Gaussian peak function used to fit asymmetric peak.

\begin{aligned}y&=y_0+He^{-0.5\left(\frac{x-x_c}{w_1}\right)^2}~~~~~~(x < x_c ) \,\\
y&=y_0+He^{-0.5\left(\frac{x-x_c}{w_2}\right)^2}~~~~~~(x \geq x_c)\end{aligned}

CCE(x,y0,xc1,A,w,k2,xc2,B,k3,xc3) Chesler-Cram Peak Function for use in chromatography.

\begin{aligned}y=&y_0+A\bigg[e^{-\frac{\left(x-x_{c1}\right)^2}{2w}}+B(1-0.5(1-\tanh (k_2(x-\\
&x_{c2}))))e^{-0.5k_3(|x-x_{c3}|+(x-x_{c3}))}\bigg]\end{aligned}

ECS(x,y0,xc,A,w,a3,a4) Edgeworth-Cramer Peak Function for use in chromatography.

\begin{aligned}y=&y_0+\frac A{w\sqrt{2\pi }}e^{-0.5z^2}\bigg( 1+\frac{a_3}{3!}z\left(z^2-3\right)+\frac{a_4}{4!}(z^4-\\
&6z^3+3)+\frac{10a_3^2}{6!}\left(z^6-15z^4+45z^2-15\right)\bigg)\\
z=&\frac{x-x_c}w\end{aligned}

Extreme(x,y0,xc,w,A) Particular case of extreme function, Gumbel probability density function.

\begin{aligned}&y=y_0+Ae^{-e^{-z}-z+1}\\
&z=\frac{x-x_c}w
\end{aligned}

Gauss(x, y0, xc, w, A) Area version of Gaussian Function.

(y0 = offset, xc = center, w = width, A = area)
y=y_0 + \frac{A}{\left(w\sqrt{\frac{\pi}{2}}\right)}e^{-2\left(\frac{x-x_c}{w}\right)^2}

GaussAmp(x,y0,xc,w,A) Amplitude version of Gaussian peak function.

(y0 = offset, xc = center, w = width, A = amplitude)
y=y_0+Ae^{-\frac{\left( x-x_c\right) ^2}{2w^2}}

Gaussian(x,y0,xc,A,w) FWHM version of Gaussian Function.

(y0 = base, xc = center, A = area, w = FWHM)
y = y_0 + \frac {Ae^{\frac {-4ln(2)(x-x_c)^2}{w^2}}}{w \sqrt{\frac{\pi}{4ln(2)}}}

GaussMod(x,y0,A,xc,w,t0) Exponentially modified Gaussian (EMG) peak function for use in Chromatography.

\begin{aligned}&f(x)=y_0+\frac A{t_0}e^{\frac 12\left(\frac w{t_0}\right)^2-\frac{x-x_c}{t_0}}\int_{-\infty }^z\frac 1{\sqrt{2\pi }}e^{-\frac{y^2}2}dy\\
&z=\frac{x-x_c}w-\frac w{t_0} \end{aligned}

GCAS(x,y0,xc,A,w,a3,a4) Gram-Charlier peak function for use in chromatography.

\begin{aligned}&f\left( z\right)  =y_0+\frac A{w\sqrt{2\pi }}e^{\frac{-z^2}2}\left( 1+\left|\sum_{i=3}^4\frac{a_i}{i!}H_i\left( z\right)\right| \right)\\
&z=\frac{x-x_c}w, H_3=z^3-3z, H_4=z^4-6z^3+3\end{aligned}

Giddings(x,y0,xc,w,A) Giddings peak function for use in Chromatography.

y=y_0+\frac Aw\sqrt{\frac{x_c}x}I_1\left( \frac{2\sqrt{x_cx}}w\right) e^{\frac{-x-x_c}w}

InvsPoly(x,y0,xc,w,A,A1,A2,A3) Inverse polynomial peak function with center.

\begin{aligned}y=&y_0+\\
&\frac A{1+A_1\left( 2\frac{x-x_c}w\right) ^2+A_2\left( 2\frac{x-x_c}w\right) ^4+A_3\left( 2\frac{x-x_c}w\right) ^6}\end{aligned}

Laplace(x,y0,a,b) Laplace probability density function.

y=y_0+\frac 1{2b}e^{-\frac{|x-a|}b}

Logistpk(x,y0,xc,w,A) Logistic peak function, also called Hubbert function.

y=y_0+\frac{4Ae^{-\frac{x-xc}w}}{\left( 1+e^{-\frac{x-xc}w}\right) ^2}

LogNormal(x,y0,xc,w,A) Probability density function of random variable whose logarithm is normally distributed.

y=y_0+\frac A{\sqrt{2\pi }wx}e^{\frac{-\left[ \ln \frac x{xc}\right] ^2}{2w^2}}

Lorentz(x, y0, xc, w, A) Lorentzian peak function with bell shape and much wider tails than Gaussian function.

(y0 = offset, xc = center, w = FWHM, A = area)
y = y_0 + \frac{2A}{\pi}\left (\frac{w}{4(x-xc)^2 + w^2}\right)

PearsonIV(x,y0,A,m,v,alpha,lam) Pearson Type IV distribution for negative discriminant, suited to model pull distributions.

\begin{aligned}&y=y_0+Ak\left[1+\left(\frac{x-\lambda\!}{\alpha\!}\right)\right]^{-m}e^{-v\tan^{-1}\left(\frac{x-\lambda\!}{\alpha\!}\right) } \\
&k=\frac{2^{2m-2}|\Gamma\!\left(m+iv/2\right)|^2}{\pi\!\alpha\!\Gamma\!\left(2m-1\right)}, m>\frac{1}{2}\end{aligned}

PearsonVII(x,y0,xc,A,w,m) Pearson Type VII peak function is a Lorentz function raised to a power.

\begin{aligned}&y=y_0+A\frac{2\Gamma (\mu)\sqrt{2^{\frac{1}{\mu}}-1}}{\sqrt{\pi }\Gamma \left( \mu-\frac 12\right) w}\bigg[ 1+4\frac{2^{\frac{1}{\mu}}-1}{w^2}\left( x-x_c\right) ^2\bigg] ^{-\mu}\\
&m=\mu\end{aligned}

PsdVoigt1(x,y0,xc,A,w,mu) Pseudo-Voigt function, linear combination of Gaussian function and Lorentzian function.

(y0 = offset, xc = center, A = area, w = FWHM, mu = profile shape factor)
\begin{aligned}y=&y_0+A\bigg[ m_u\frac 2\pi \frac w{4\left( x-x_c\right) ^2+w^2}\\
&+\left( 1-m_u\right) \frac{\sqrt{4\ln 2}}{\sqrt{\pi}w}e^{-\frac{4\ln 2}{w^2}\left( x-x_c\right) ^2}\bigg]\end{aligned}

PsdVoigt2(x,y0,xc,A,wG,wL,mu) Pseudo-Voigt function, linear combination of Gaussian and Lorentzian with different FWHM.

(y0 = offset, xc = center, A =area, wG=Gaussian FWHM, wL=Lorentzian FWHM, mu = profile shape factor)
\begin{aligned}y=&y_0+A\bigg[ m_u\frac 2\pi \frac{w_L}{4\left( x-x_c\right) ^2+w_L^2}+\\
&\left( 1-m_u\right) \frac{\sqrt{4\ln2}}{\sqrt{\pi}w_G}e^{-\frac{4\ln 2}{w_G^2}\left( x-x_c\right) ^2}\bigg] \end{aligned}

Voigt(x,y0,xc,A,wG,wL) Convolution of a Gaussian function (wG for FWHM) and a Lorentzian function.

\begin{aligned}y=&y_0+A\frac{2\ln 2}{\pi ^{3/2}}\frac{W_L}{W_G^2}\\
&\cdot\int_{-\infty }^\infty \frac{e^{-t^2}}{\left( \sqrt{\ln 2}\frac{W_L}{W_G}\right) ^2+\left( \sqrt{4\ln 2}\frac{x-x_c}{W_G}-t\right) ^2}dt\end{aligned}

Weibull3(x,y0,xc,A,w1,w2) Amplitude version of Weibull peak function.

\begin{aligned}S&=\frac{x-x_c}{w_1}+\left( \frac{w_2-1}{w_2}\right) ^{\frac 1{w_2}}\\
y&=y_0+A\left( \frac{w_2-1}{w_2}\right) ^{\frac{1-w_2}{w_2}}\left[ S\right] ^{w_2-1}e^{-\left[ S\right] ^{w_2}+\left( \frac{w_2-1}{w_2}\right) }\end{aligned}

Piecewise

Name Brief Description
PWL2(x,a1,k1,xi1,k2) Piecewise linear function with two segments.

\begin{aligned}&y=a_1+k_1x~~~~~~~~~~~~~~\left(x<x_i\right)\\
&y=y_i+k_2\left(x-x_i\right)~~~~~\left(x\ge x_i\right)\\
&y_i=a_1+k_1x_i   \end{aligned}

PWL3(x,a1,k1,xi1,k2,xi2,k3) Piecewise linear function with three segments.

\begin{aligned}&y=a_1+k_1x~~~~~~~~~~~~~~~~\left(x<x_{i_1}\right)\\
&y=y_{i_1}+k_2\left(x-x_{i_1}\right)~~~~~(x_{i_1}\le x<x_{i_2})\\
&y=y_{i_2}+k_3\left(x-x_{i_2}\right)~~~~~(x\ge x_{i_2})\\
&y_{i_1}=a_1+k_1x_{i_1},~ y_{i_2}=y_{i_1}+k_2\left(x_{i_2}-x_{i_1}\right)  \end{aligned}

Polynomial

Name Brief Description
Constant(x,y0) Constant base line function.

y=y_0

Cubic(x,A,B,C,D) Third order polynomial.

y = A + Bx + Cx^2 + Dx^3

Line(x,A,B) Line function with slope and intercept.

y = A + Bx

LineMod(x,a,b) Line function with x-intercept and slope for parameters.

y = a\left(x-b\right)

Parabola(x,A,B,C) Second order polynomial.

y = A + Bx + Cx^2

Poly(x, a0, a1, a2, a3, a4, a5, a6, a7, a8, a9) 9th order polynomial.

y=a_0+a_1x+a_2x^2+...+a_9x^9

Poly4(x,A0,A1,A2,A3,A4) 4th order Polynomial function.

y = A_0+A_1x+A_2x^2+A_3x^3+A_4x^4

Poly5(x,A0,A1,A2,A3,A4,A5) 5th order polynomial function.

y = A_0+A_1x+A_2x^2+A_3x^3+A_4x^4+A_5x^5

Power

Name Brief Description
Allometric1(x,a,b) Classical Freundlich Model, has been used in the study of allometry.

y=ax^b

Allometric2(x,a,b,c) An extension of Classical Freundlich Model.

y=a+bx^c

Belehradek(x,a,b,c) X shifted power function.

y=a(x-b)^c

BlNeld(x,a,b,c,f) Bleasdale-Nelder function for yield-density model.

y=\left(a+bx^f\right)^{-1/c}

BlNeldSmp(x,a,b,c) Simplified Bleasdale-Nelder Model.

y=(a+bx)^{-1/c}

FarazdaghiHarris(x,a,b,c) Farazdaghi-Harris Model for use in yield-density study.

y=(a+bx)^{-1/c}

FreundlichEXT(x,a,b,c) Extended Freundlich adsorption isotherm equation.

y=ax^{bx^{-c}}

Gunary(x,a,b,c) Gunary adsorption isotherm equation.

y=\frac x{a+bx+c\sqrt{x}}

LangmuirEXT1(x,a,b,c), Extended Langmuir adsorption isotherm equation.

y=\frac{abx^{1-c}}{1+bx^{1-c}}

LangmuirEXT2(x,a,b,c) Another form of extended Langmuir adsorption isotherm equation.

y=\frac 1{a+bx^{c-1}}

Pareto(x,A) Pareto cumulative distribution function with one parameter, a power law probability distribution.

y=1-\frac 1{x^A}

Pow2P1(x,a,b), Scaled Pareto function.

y=a\left( 1-x^{-b}\right)

Pow2P2(x,a,b), two-parameter power function.

y=a\left( 1+x\right) ^b

Pow2P3(x,a,b) Pareto transform function.

y=1-\frac 1{\left( 1+ax\right) ^b}

Power(x,A) One-parameter Power function.

y=x^A

Power0(x,y0,xc,A,P) Symmetric Power function with offset.

y=y_0+A|x-x_c|^p

Power1(x,xc,A,P) Symmetric Power function.

y=A|x-x_c|^p

Power2(x,xc,A,pl,pu) Asymmetric Power function.

\begin{aligned}&y=A|x-x_c|^{pl},x<x_c\\
&y=A|x-x_c|^{pu},x>x_c\end{aligned}

Rational

Name Brief Description
BET(x,a,b) Brunauer-Emmett-Teller (BET) adsorption equation.

y=\frac{abx}{1+(b-2)x-(b-1)x^2}

BETMod(x,a,b) Modified BET Model.

y=\frac x{a+bx-(a+b)x^2}

Holliday(x,a,b,c) Holliday Model - a Yield-density model for use in agriculture.

y=\left( a+bx+cx^2\right) ^{-1}

Holliday1(x,a,b,c) extended Holliday Model.

y=\frac a{1+bx+cx^2}

Nelder(x,a,b0,b1,b2) Nelder Model - a Yeild-fertilizer model in agriculture.

y=\frac{x+a}{b_0+b_1(x+a)+b_2\left( x+a\right) ^2}

Rational0(x,a,b,c) Rational function with 1st order of numerator and 1st order of denominator.

y=\frac{b+cx}{1+ax}

Rational1(x,a,b,c) Another form of Rational0 function with constant coefficient in numerator normalized.

y=\frac{1+cx}{a+bx}

Rational2(x,a,b,c) Another form of Rational0 function with coefficient of x in denominator normalized.

y=\frac{b+cx}{a+x}

Rational3(x,a,b,c) Another form of Rational0 function with coefficient of x in numerator normalized.

y=\frac{b+x}{a+cx}

Rational4(x,a,b,c) Another form of Rational0 function with sum of constant and a rational function.

y=c+\frac b{x+a}

Rational5(x,a,b,c,d) Rational function with 1st order of numerator and 2nd order of denominator.

y=\frac{a+bx}{1+cx+dx^2}

Reciprocal(x,a,b) two parameter linear reciprocal function.

y=\frac 1{a+bx}

Reciprocal0(x,A) One-parameter (slope) linear reciprocal function.

 y=\frac 1{1+Ax}

Reciprocal1(x,A) One-parameter (intercept) linear reciprocal function.

y=\frac 1{x+A}

ReciprocalMod(x,a,b) Another form of Reciprocal function with constant coefficient in denominator normalized.

 y=\frac a{1+bx}

Waveform

Name Brief Description
SawtoothWave(x,x0,y0,A,T) Sawtooth wave, a periodic function consisting of extreme case asymmetric triangle waves.

\begin{aligned}&y=y_0+\frac{A}{T}\left(x-x_0-nT \right),\\
&x_0+nT\le x < x_0+\left(n+1\right)T,\ n\in Z\end{aligned}

Sine(x,y0,xc,w,A) Sine wave function oscillates around a specified value.

y=y_0+A\sin \left( \pi \frac{x-x_c}w\right)

SineDamp(x,y0,xc,w,t0,A) Damped sine wave, a sinusoidal function whose amplitude decays as time increases.

\begin{aligned}&y=y_0+Ae^{\frac{-x}{t_0}}\sin \left( \pi \frac{x-x_c}w\right) \\
&A>0,~ t_0>0,~ w>0\end{aligned}

SineSqr(x,y0,xc,w,A) sine square function.

y=y_0+A\sin ^2\left( \pi \frac{x-x_c}w\right)

SquareWave(x,a,b,x0,T) Square wave function which is a periodic wave changing between two levels transitionally.

y=\begin{cases}
a,\ \ x_0+nT<x<x_0+\left(n+\frac{1}{2} \right )T,\ n\in Z\\
b,\ \ x_0+\left(n+\frac{1}{2} \right )T <x<x_0+\left(n+1 \right )T,\ n\in Z
\end{cases}

SquareWaveMod( a, b, x0, duty, T)

(2016 SR0)

Modified square wave function with duty cycle which is a periodic wave changing between two levels transitionally.

y=\begin{cases}
a,\ \ x_0+nT<x<x_0+\left(n+ duty \right )T, \ n\in Z, 0<duty<1\\
b,\ \ x_0+\left(n+duty \right )T <x<x_0+\left(n+1 \right )T,\ n\in Z, 0<duty<1
\end{cases}

Step(x,A,B,x1) Piecewise constant function with two segments.

y=
\begin{cases}
A,\ \ \ \ x<x_1 \\
B,\ \ \ \ x\ge x_1
\end{cases}

Surface Fitting

Name Brief Description
Chebyshev2D(x,y,z0,A1,A2,B1,B2,C1) Chebyshev Series Polynomials.

\begin{aligned}z=&z_0+A_1T_1\left( x\right) +B_1T_1\left( y\right) +A_2T_2\left( x\right) +\\
&CT_1\left( x\right) T_1\left( y\right) +B_2T2\left( y\right)~~~\end{aligned}

\begin{aligned}&T_n\left( x\right) =\cos \left( na\cos \left( x\right) \right) \\
&T_n\left( y\right) =\cos \left( na\cos \left( y\right) \right) \\
&-1\leq x\leq 1, ~-1\leq y\leq 1\end{aligned}

Cosine(x,y,z0,A1,A2,B1,B2,C1) Cosine Series Polynomials.

\begin{aligned}z=&z_0+A_1\cos \left( x\right) +B_1\cos \left( y\right) +A_2\cos \left( 2x\right) +\\
&C_1\cos \left( x\right) \cos \left( y\right)+B_2\cos \left( 2y\right) \\
0\leq& x\leq \pi, ~~0\leq y\leq \pi\end{aligned}

DoseResp2D(x,y,z0,B,C,D,E,F) Non-Linear Logistic Dose Response Function.

z=z_0+\frac B{\left[ 1+\left( \frac xC\right) ^{-D}\right] \left[ 1+\left( \frac yE\right) ^{-F}\right] }

Exponential2D(x,y,z0,B,C,D) 2D exponential decay function.

z=z_0+B\exp \left( -\frac xC-\frac yD\right)

Extreme2D(x,y,z0,B,C,D,E,F) Non-Linear Extreme Value Functions.

\begin{aligned}z=&z_0+By+Cy^2+D\exp \Bigg[ 1-\exp \left( \frac{E-x}F\right) -\\
&\frac{x-E}F\Bigg] \end{aligned}

ExtremeCum(x,y,z0,B,C,D,E,F,G,H) Non-Linear Extreme Value Cumulative Function.

\begin{aligned}z=&z_0+B\exp \left\{ -\exp\left\{ \frac{C-x}D\right\}\right\}+\\
&E\exp \left\{ -\exp\left\{ \frac{F-y}G\right\} \right\}+ \\
&H\exp \left\{ -\exp\left\{ \frac{C-x}D\right\} -\exp\left\{ \frac{F-y}G\right\} \right\} \end{aligned}

Fourier2D(x,y,z0,a,b,c,d,w1,w2) Sum of sine and cosine functions of two variables.

\begin{aligned}z=&z_0+a\cos \left( \frac x{w_1}\right) +b\sin \left( \frac x{w_1}\right) +c\cos \left( \frac y{w_2}\right) +\\
&d\sin \left( \frac y{w_2}\right)\end{aligned}

Gauss2D(x,y,z0,A,xc,w1,yc,w2) The Gaussian surface.

z=z_0+A\exp \left\{ -\frac 12\left( \frac{x-x_c}{w_1}\right) ^2-\frac 12\left( \frac{y-y_c}{w_2}\right) ^2\right\}

GaussCum(x,y,z0,B,C,D,E,F) 2D Gaussian cumulative function.

\begin{aligned}z=&z_0+0.25B\left[1+{erf}\left\{\frac{x-C}{\sqrt{2}D}\right\}\right]\bigg[1+\\
&{erf}\left\{\frac{y-E}{\sqrt{2}F}\right\}\bigg]\end{aligned}

Gaussian2D(x,y,z0,A,xc,w1,yc,w2,theta) The gaussian surface rotated.

\begin{aligned}z=&z_0+A\exp \bigg\{-\frac 12\\
&\cdot\bigg(\frac{x\cos(\theta)+y\sin(\theta)-x_c\cos(\theta)+y_c\sin(\theta)}{w_1}\bigg)^2-\\
&\frac 12\bigg(\frac{-x\sin(\theta)+y\cos(\theta)+x_c\sin(\theta)-y_c\cos(\theta)}{w_2}\bigg)^2\bigg\}\end{aligned}

LogisticCum(x,y,z0,B,C,D,E,F) Non-linear Sigmoid (Logistic Cumulative) Function.

z=z_0+\frac B{\left[ 1+\exp \left\{ \frac{C-x}D\right\} \right] \big[ 1+\exp \big\{ \frac{E-y}F\big\} \big] }

LogNormal2D(x,y,z0,B,C,D,E,F,G,H) 2D Log Normal function.

\begin{aligned}z=&z_0+B\exp \left\{ -\frac{\left( \ln \frac xC\right) ^2}{2D^2}\right\} +E\exp \left\{ -\frac{\left( \ln \frac yF\right) ^2}{2G^2}\right\}+\\
&H\exp \left\{ -\frac{\left( \ln \frac xC\right) ^2}{2D^2}-\frac{\left( \ln \frac yF\right)^2 }{2G^2}\right\}\end{aligned}

Lorentz2D(x,y,z0,A,xc,w1,yc,w2) Non-linear Sigmoid (Logistic Cumulative) Function.

z=z_0+\frac A{\left[ 1+\left( \frac{x-x_c}{w_1}\right) ^2\right] \left[ 1+\left( \frac{y-y_c}{w_2}\right) ^2\right] }

Parabola2D(x,y,z0,a,b,c,d) 2D Parabola function without xy term.

z=z_0+ax+by+cx^2+dy^2

Plane(x,y,z0,a,b) The Plane Surface.

z=z_0+ax+by

Poly2D(x,y,z0,a,b,c,d,f) 2D quadratic polynomial.

z=z_0+ax+by+cx^2+dy^2+fxy

Polynomial2D(x,y,z0,A1,A2,A3,A4,A5,B1,B2,B3,B4,B5) 2D 5th order polynomial without cross terms.

\begin{aligned}z=&z_0+A_1x+A_2x^2+A_3x^3+A_4x^4+A_5x^5+B_1y+\\
&B_2y^2+B_3y^3+B_4y^4+B_5y^5\end{aligned}

Power2D(x,y,z0,B,C,D,E,F) 2D power function.

z=z_0+Bx^C+Dy^E+Fx^Cy^E

Rational2D(x,y,z0,A01,B01,B02,B03,A1,A2,A3,B1,B2) 2D rational function with 3rd order for numerator and 3rd order for denominator.

z=\frac{z_0+A_{01}x+B_{01}y+B_{02}y^2+B_{03}y^3}{1+A_1x+A_2x^2+A_3x^3+B_1y+B_2y^2}

RationalTaylor(x,y,z0,A01,B01,B02,C02,A1,A2,B1,B2,C2) 2D Taylor series rational function.

z=\frac{z_0+A_{01}x+B_{01}y+B_{02}y^2+C_{02}xy}{1+A_1x+B_1y+A_2x^2+B_2y^2+C_2xy}

Voigt2D(x,y,z0,A,xc,w1,yc,w2,mu) The Voigt surface.

\begin{aligned}z=&z_0+A\Bigg[\frac{\mu\!}{\left[1+\left(\frac{x-x_c}{w_1}\right)^2\right]\left[1+\left(\frac{y-y_c}{w_2}\right)^2\right]}
+\\
&(1-\mu\!)\exp\left(-\frac{1}{2}\left(\frac{x-x_c}{w_1}\right)^2-\frac{1}{2}\left(\frac{y-y_c}{w_2}\right)^2\right)\Bigg]\end{aligned}

Voigt2DMod(x,y,z0,A,xc,w1,yc,w2,mu)

(2016 SR0)

The voigt surface with volume as parameter.

\begin{aligned}z=&z0+A\Bigg[\frac{mu}{(1+((x-xc)/w1)^2)*(1+((y-yc)/w2)^2)}
+\\
&(1-mu)*exp(-\frac{1}{2}*(\frac{x-xc}{w1})^2-\frac{1}{2}*(\frac{y-yc}{w2})^2)\Bigg]\end{aligned}

PFW

Name Brief Description
Asym2Sig(x,y0,xc,A,w1,w2,w3) Asymmetric double Sigmoidal function.

y=y_0+A\frac 1{1+e^{-\frac{x-x_c+w_1/2}{w_2}}}(1-\frac 1{1+e^{-\frac{x-x_c-w_1/2}{w_3}}})

Bigaussian(x,y0,xc,H,w1,w2) Bi-Gaussian peak function used to fit asymmetric peak.

\begin{aligned}y&=y_0+He^{-0.5\left(\frac{x-x_c}{w_1}\right)^2}~~~~~~(x < x_c ) \,\\
y&=y_0+He^{-0.5\left(\frac{x-x_c}{w_2}\right)^2}~~~~~~(x \geq x_c)\end{aligned}

BWF(x,y0,xc,H,w,q) Breit-Wigner-Fano (BWF) line shape.

 y=y_0+\frac{H\left( 1+\frac{x-x_c}{qw}\right) ^2}{1+\left( \frac{x-x_c}w\right) ^2}

CCE(x,y0,xc1,A,w,k2,xc2,B,k3,xc3) Chesler-Cram Peak Function for use in chromatography.

y=y_0+A[e^{-\frac{(x-x_{c1})^2}{2w}}+

B(1-0.5(1-\tanh (k_2(x-x_{c2}))))e^{-0.5k_3(|x-x_{c3}|+(x-x_{c3}))}]

ConsGaussian(x,y0, xc, A, w1, w2) Constrained Gaussian function.

 y=y_0+\frac{Ae^{-\frac{0.5\left( x-x_c\right) ^2}{\left( w_1+w_2x_c\right)^2 }}}{\left( w_1+w_2x_c\right) \sqrt{2\pi }}

DoniachSunjic(x,y0, xc, H, w, a) Doniach Sunjic function.

 y=y_0+\frac{H\cos \left( \frac{a\pi }2+\left( 1-a\right) \arctan \left( \frac{x-x_c}w\right) \right) }{\sqrt{\left( w^2+\left( x-x_c\right) ^2\right) ^{\left( 1-a\right) }}}

ECS(x,y0,xc,A,w,a3,a4) Edgeworth-Cramer Peak Function for use in chromatography.

\begin{aligned}y=&y_0+\frac A{w\sqrt{2\pi }}e^{-0.5z^2}\bigg( 1+\frac{a_3}{3!}z\left(z^2-3\right)+\frac{a_4}{4!}(z^4-\\&6z^3+3)+\frac{10a_3^2}{6!}\left(z^6-15z^4+45z^2-15\right)\bigg)\\
z=&\frac{x-x_c}w\end{aligned}

FraserSuzuki(x,y0,xc,A,sig) Fraser-Suzuki asymmetric function.

 y=y_0+\frac{Ae^{-\frac{\left( x-x_c\right) ^2}{2sigL}}}{sig\sqrt{2\pi }} \left( x<0\right)

 y=y_0+\frac{Ae^{-\frac{\left( x-x_c\right) ^2}{2sigR}}}{sig\sqrt{2\pi }} \left( x\geq 0\right)

Where

sigL=sig\left( 1-A\right) ,sigR=sig\left( 1+A\right)

Gauss(x, y0, xc, w, A) Area version of Gaussian Function.

(y0 = offset, xc = center, w = width, A = area)
y=y_0 + \frac{A}{(w\sqrt{\frac{\pi}{2}}))}e^{-2(\frac{x-x_c}{w})^2}

GaussAmp(x,y0,xc,w,A) Amplitude version of Gaussian peak function.

(y0 = offset, xc = center, w = width, A = amplitude)
y=y_0+Ae^{-\frac{\left( x-x_c\right) ^2}{2w^2}}

Gaussian(x,y0,xc,A,w) FWHM version of Gaussian Function.

(y0 = base, xc = center, A = area, w = FWHM)
y = y_0 + \frac {Ae^{\frac {-4ln(2)(x-x_c)^2}{w^2}}}{w \sqrt{\frac{\pi}{4ln(2)}}}

Gaussian_LorenCross(x,y0, xc, A, w, s) Gaussian-Lorentzian Cross Product function.

 y=y_0+\frac A{1+\frac{e^{\frac{0.5\left( 1-s\right) \left( x-x_c\right) ^2}ws\left( x-x_c\right) ^2}}{w^2}}

GaussMod(x,y0,A,xc,w,t0) Exponentially modified Gaussian (EMG) peak function for use in Chromatography.

\begin{aligned}&f(x)=y_0+\frac A{t_0}e^{\frac 12\left(\frac w{t_0}\right)^2-\frac{x-x_c}{t_0}}\int_{-\infty }^z\frac 1{\sqrt{2\pi }}e^{-\frac{y^2}2}dy\\
&z=\frac{x-x_c}w-\frac w{t_0} \end{aligned}

GCAS(x,y0,xc,A,w,a3,a4) Gram-Charlier peak function for use in chromatography.

\begin{aligned}&f\left( z\right)  =y_0+\frac A{w\sqrt{2\pi }}e^{\frac{-z^2}2}\left( 1+\left|\sum_{i=3}^4\frac{a_i}{i!}H_i\left( z\right)\right| \right)\\
&z=\frac{x-x_c}w, H_3=z^3-3z, H_4=z^4-6z^3+3\end{aligned}

HVL(x, y0, xc, A, w, d) Haaroff-Van der Linde function.

 y=y_0+\frac{Ae^{-\frac{0.5\left( x-x_c\right) ^2}{w^2}}w}{d\sqrt{2\pi }x_c\left( e^{1-\frac{dx_c}{w^2}}+0.5\left( 1+Erf\left( \frac{x-x_c}{w\sqrt{2}}\right) \right) \right) }

InvsPoly(x,y0,xc,w,A,A1,A2,A3) Inverse polynomial peak function with center.

\begin{aligned}y=&y_0+\\
&\frac A{1+A_1\left( 2\frac{x-x_c}w\right) ^2+A_2\left( 2\frac{x-x_c}w\right) ^4+A_3\left( 2\frac{x-x_c}w\right) ^6}\end{aligned}

LogNormal(x,y0,xc,w,A) Probability density function of random variable whose logarithm is normally distributed.

y=y_0+\frac A{\sqrt{2\pi }wx}e^{\frac{-\left[ \ln \frac x{xc}\right] ^2}{2w^2}}

Lorentz(x, y0, xc, w, A) Lorentzian peak function with bell shape and much wider tails than Gaussian function.

(y0 = offset, xc = center, w = FWHM, A = area)
y = y_0 + \frac{2A}{\pi}\left (\frac{w}{4(x-x_c)^2 + w^2}\right)

PearsonVII(x,y0,xc,A,w,m) Pearson Type VII peak function is a Lorentz function raised to a power.

\begin{aligned}&y=y_0+A\frac{2\Gamma (\mu)\sqrt{2^{\frac{1}{\mu}}-1}}{\sqrt{\pi }\Gamma \left( \mu-\frac 12\right) w}\bigg[ 1+4\frac{2^{\frac{1}{\mu}}-1}{w^2}\left( x-x_c\right) ^2\bigg] ^{-\mu}\\
&m=\mu\end{aligned}

PsdVoigt1(x,y0,xc,A,w,mu) Pseudo-Voigt function, linear combination of Gaussian function and Lorentzian function.

(y0 = offset, xc = center, A = area, w = FWHM, mu = profile shape factor)
\begin{aligned}y=&y_0+A\bigg[ m_u\frac 2\pi \frac w{4\left( x-x_c\right) ^2+w^2}\\
&+\left( 1-m_u\right) \frac{\sqrt{4\ln 2}}{\sqrt{\pi}w}e^{-\frac{4\ln 2}{w^2}\left( x-x_c\right) ^2}\bigg]\end{aligned}

PsdVoigt2(x,y0,xc,A,wG,wL,mu) Pseudo-Voigt function, linear combination of Gaussian and Lorentzian with different FWHM.

(y0 = offset, xc = center, A =area, wG=Gaussian FWHM, wL=Lorentzian FWHM, mu = profile shape factor)
\begin{aligned}y=&y_0+A\bigg[ m_u\frac 2\pi \frac{w_L}{4\left( x-x_c\right) ^2+w_L^2}+\\
&\left( 1-m_u\right) \frac{\sqrt{4\ln 2}}{\sqrt{\pi}w_G}e^{-\frac{4\ln 2}{w_G^2}\left( x-x_c\right) ^2}\bigg] \end{aligned}

Pulse(x,y0,x0,A,t1,P,t2) Exponential pulse function(x >= x0 ? y : 0).

\begin{aligned}&y = 0~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~(x < x_0)\\
&y=y_0+A\left( 1-e^{-\frac{x-x_0}{t_1}}\right) ^p e^{-\frac{x-x_0}{t_2}}~~(x\ge x_0)\end{aligned}

SchulzFlory(x,y0,xc,w,A) Schulz Flory distribution function to describe relative ratios of polymers after a polymerization process.

y = y_0 + Ae^{\frac{x_c-x}{w}}\left(\frac{x}{x_c}\right)^{\frac{x_c}{w}}

Sine(x,xc,w,A,y0) Sine wave function oscillates around a specified value.

y=y_0+A\sin \left( \pi \frac{x-x_c}w\right)

SineDamp(x,y0,xc,w,t0,A) Damped sine wave, a sinusoidal function whose amplitude decays as time increases.

y=y_0+Ae^{\frac{-x}{t_0}}\sin \left( \pi \frac{x-x_c}w\right)

A>0t_0>0w>0

Sinesqr(x,xc,w,A,y0) sine square function.

y=y_0+A\sin ^2\left( \pi \frac{x-x_c}w\right)

Voigt(x,y0,xc,A,wG,wL) Convolution of a Gaussian function (wG for FWHM) and a Lorentzian function.

(y0 = offset, xc = center, A =area, wG = Gaussian FWHM, wL = Lorentzian FWHM)
y=y_0+A\frac{2\ln 2}{\pi ^{3/2}}\frac{W_L}{W_G^2}\int_{-\infty }^\infty \frac{e^{-t^2}}{\left( \sqrt{\ln 2}\frac{W_L}{W_G}\right) ^2+\left( \sqrt{4\ln 2}\frac{x-x_c}{W_G}-t\right) ^2}dt

Weibull3(x,y0,xc,A,w1,w2) Amplitude version of Weibull peak function.

S=\frac{x-x_c}{w_1}+\left( \frac{w_2-1}{w_2}\right) ^{\frac 1{w_2}}

y=y_0+A\left( \frac{w_2-1}{w_2}\right) ^{\frac{1-w_2}{w_2}}\left[ S\right] ^{w_2-1}e^{-\left[ S\right] ^{w_2}+\left( \frac{w_2-1}{w_2}\right) }

Baseline

Name Brief Description
Constant(x,y0) Constant base line function.

y=y_0

Cubic(x,A,B,C,D) Third order polynomial.

y = A + Bx + Cx^2 + Dx^3

ExpDec1(x,y0,A1,t1) One-phase exponential decay function with time constant parameter.

y=y_0+Ae^{-x/t}

ExpDec2(x,y0,A1,t1,A2,t2) Two-phase exponential decay function with time constant parameters.

y=y_0+A_1e^{-x/t_1}+A_2e^{-x/t_2}

ExpGro1(x,y0,A1,t1) One-phase exponential growth function with time constant parameter.

y=y_0+A_1e^{x/t_1}

ExpGrow1(x,y0,x0,A1,t1) One-phase exponential growth with time offset, x0 should be fixed.

y=y_0+A_1e^{(x-x_0)/t_1}

ExpGrow2(x, y0, x0, A1, t1, A2, t2) Two-phase exponential growth with time offset, x0 should be fixed.

y = y_0 + A_1e^{(x-x_0)/t_1} + A_2e^{(x-x_0)/t_2}

Exponential(x,y0,A,R0) Exponential growth function with rate constant parameter.

y=y_0+Ae^{R_0x}

Hyperbl(x, P1, P2) Hyperbola funciton, also the Michaelis-Menten model in Enzyme Kinetics.

y=\frac{P_1x}{P_2 + x}

Line(x,A,B) Line function with slope and intercept.

y = A + Bx

MnMolecular(x,A,xc,k), Monomolecular growth model.

y=A\left( 1-e^{-k\left( x-xc\right) }\right)

Parabola(x,A,B,C) Second order polynomial.

y = A + Bx + Cx^2

Poly4(x,A0,A1,A2,A3,A4) 4th order Polynomial function.

y = A_0+A_1x+A_2x^2+A_3x^3+A_4x^4

Poly5(x,A0,A1,A2,A3,A4,A5) 5th order polynomial function.

y = A_0+A_1x+A_2x^2+A_3x^3+A_4x^4+A_5x^5

Step(x,A,B,x1) Piecewise constant function with two segments.

y=
\begin{cases}
A,\ \ \ \ x<x_1 \\
B,\ \ \ \ x\ge x_1
\end{cases}

Chromatograph

Name Brief Description
CCE(x,y0,xc1,A,w,k2,xc2,B,k3,xc3) Chesler-Cram Peak Function for use in chromatography.

y=y_0+A[e^{-\frac{(x-x_{c1})^2}{2w}}+

B(1-0.5(1-\tanh (k_2(x-x_{c2}))))e^{-0.5k_3(|x-x_{c3}|+(x-x_{c3}))}]

ECS(x,y0,xc,A,w,a3,a4) Edgeworth-Cramer Peak Function for use in chromatography.

\begin{aligned}y=&y_0+\frac A{w\sqrt{2\pi }}e^{-0.5z^2}\bigg( 1+\frac{a_3}{3!}z\left(z^2-3\right)+\frac{a_4}{4!}(z^4-\\&6z^3+3)+\frac{10a_3^2}{6!}\left(z^6-15z^4+45z^2-15\right)\bigg)\\
z=&\frac{x-x_c}w\end{aligned}

Gauss(x, y0, xc, w, A) Area version of Gaussian Function.

(y0 = offset, xc = center, w = width, A = area)
y=y_0 + \frac{A}{(w\sqrt{\frac{\pi}{2}}))}e^{-2(\frac{x-x_c}{w})^2}

GaussMod(x,y0,A,xc,w,t0) Exponentially modified Gaussian (EMG) peak function for use in Chromatography.

\begin{aligned}&f(x)=y_0+\frac A{t_0}e^{\frac 12\left(\frac w{t_0}\right)^2-\frac{x-x_c}{t_0}}\int_{-\infty }^z\frac 1{\sqrt{2\pi }}e^{-\frac{y^2}2}dy\\
&z=\frac{x-x_c}w-\frac w{t_0} \end{aligned}

GCAS(x,y0,xc,A,w,a3,a4) Gram-Charlier peak function for use in chromatography.

\begin{aligned}&f\left( z\right)  =y_0+\frac A{w\sqrt{2\pi }}e^{\frac{-z^2}2}\left( 1+\left|\sum_{i=3}^4\frac{a_i}{i!}H_i\left( z\right)\right| \right)\\
&z=\frac{x-x_c}w, H_3=z^3-3z, H_4=z^4-6z^3+3\end{aligned}

Giddings(x,y0,xc,w,A) Giddings peak function for use in Chromatography.

y=y_0+\frac Aw\sqrt{\frac{x_c}x}I_1\left( \frac{2\sqrt{x_cx}}w\right) e^{\frac{-x-x_c}w}

Electrophysiology

Name Brief Description
BoltzIV(x,vhalf,dx,gmax,vrev) Transformed Boltzmann function for IV data.

 y=\frac{(x-vrev)\cdot gmax }{1+e^{(x-vhalf)/dx}}

Boltzmann(x, A1, A2, x0, dx) Boltzmann Function - produce a sigmoidal curve.

y = A_2 + (A_1-A_2)/(1 + e^{(x-x0)/dx})

DoubleBoltzmann(x,y0,A,frac,x01,x02,k1,k2) Double Boltzmann Function, sum of two Boltzmann functions.

y=y_0+A\left[\frac{p}{1+e^{\frac{x-x_{01}}{k_1}}}+\frac{1-p}{1+e^{\frac{x-x_{02}}{k_2}}}\right]

ExpDec1(x,y0,A1,t1) One-phase exponential decay function with time constant parameter.

y=y_0+Ae^{-x/t}

ExpDec2(x,y0,A1,t1,A2,t2) Two-phase exponential decay function with time constant parameters.

y=y_0+A_1e^{-x/t_1}+A_2e^{-x/t_2}

ExpDec3(x,y0,A1,t1,A2,t2,A3,t3) Three-phase exponential decay function with time constant parameters.

y=y_0+A_1e^{-x/t_1}+A_2e^{-x/t_2}+A_3e^{-x/t_3}

Gauss(x, y0, xc, w, A) Area version of Gaussian Function.

(y0 = offset, xc = center, w = width, A = area)
y=y_0 + \frac{A}{(w\sqrt{\frac{\pi}{2}}))}e^{-2(\frac{x-x_c}{w})^2}

Goldman(x,b,Nao,Nai,Ki,T) Goldman-Hodgkin-Katz equation for use in cell membrane physiology.

\begin{aligned}&E=\frac{RT}F\ln \left( \frac{\left[ K\right] _0+b\left[ Na\right] _0}{\left[ K\right] _i+b\left[ Na\right] _i}\right)\\
&x=\left[ K\right] _0,~ y=E\\
&R=8.314,F=96485,b=P_k/P_{Na}\end{aligned}

Hill(x,Vmax,k,n) Hill function to determine ligand concentration and maximum number of binding sites.

y=V_{\max }\frac{x^n}{k^n+x^n}

Pharmacology

Name Brief Description
BiDoseResp(x,A1,A2,LOGx01,LOGx02,h1,h2,p) Biphasic Dose Response Function.

\begin{aligned}y=&A_1+(A_2-A_1)\bigg[\frac{p}{1+10^{(LOGx01-x)h1}}+\\
&\frac{1-p}{1+10^{(LOGx02-x)h2}}\bigg]\end{aligned}

Biphasic(x,Amin,Amax1,Amax2,x0_1,x0_2,h1,h2) Biphasic sigmoidal dose response (7 parameters logistic equation).

y=A_{\min }+\frac{(A_{\max 1}-A_{\min })}{1+10^{(x-x0\_1)h_1}}+
\frac{(A_{\max 2}-A_{\min })}{1+10^{(x0\_2-x)h_2}}

DoseResp(x,A1,A2,LOGx0,p) Dose-response curve with variable Hill slope given by parameter 'p'.

y=A1+\frac{A2-A1}{1+10^{\left( Logx0-x\right) p}}

MichaelisMenten(x,Vmax,Km) Michaelis Menten function to describe relation of concentration of substrate and enzyme velocity.

y=\frac{V_{max}x}{K_m+x}

OneSiteBind(x,Bmax,k1) One site direct binding. Rectangular hyperbola, connects to isotherm or saturation curve.

y=\frac{B_{\max }x}{K_1+x}

OneSiteComp(x,A1,A2,logx0) One Site Competition curve. Dose-response curve with Hill slope equal to -1.

y=A_2+\frac{A_1-A_2}{1+10^{\left( x-\log x_0\right) }}

TwoSiteBind(x,Bmax1,Bmax2,k1,k2) Two sites binding function.

 y=\frac{B_{\max 1}x}{k_1+x}+\frac{B_{\max 2}x}{k_2+x}

TwoSiteComp(x,A1,A2,logx0_1,logx0_2,fraction) Two sites competition function to describe the competition of a ligand for two types of receptors.

 y=A_2+\frac{\left( A_1-A_2\right) f}{1+10^{\left( x-\log x_{0\_1}\right) }}+\frac{\left( A_1-A_2\right) \left( 1-f\right) }{1+10^{\left( x-\log x_{0\_2}\right) }}

Rheology

Name Brief Description
Bingham(x,y0,A)

(2015 SR0)

Bingham model to describe viscoplastic fluids exhibiting a yield response.

y=y_{0}+Ax

Cross(x,A1,A2,t,m)

(2015 SR0)

Cross model to describe pseudoplastic flow with asymptotic viscosities at zero and infinite shear rates.

y=A_{2}+\frac{A_{1}-A_{2}}{1+(tx)^{m}}

Carreau(x,A1,A2,t,a,n)

(2015 SR0)

Carreau-Yasuda model to describe pseudoplastic flow with asymptotic viscosities at zero and infinite shear rates.

y=A_{2}+(A_{1}-A_{2})[1+(tx)^{a}]^{\frac{n-1}{a}}

Herschel(x,y0,K,n)

(2015 SR0)

Herschel-Bulkley model to describe viscoplastic materials exhibiting a power-law relationship.

y=y_0+Kx^n

VFT(x,A,B,x0)

(2015 SR0)

Vogel-Fulcher-Tammann Equation.

\text{log}_{10}y =A+\frac{B}{x-x_{0}}

MYEGA(x,y0,K,C)

(2015 SR0)

Mauro-Yue-Ellison-Gupta-Allan Equation.

\text{log}_{10}y=\text{log}_{10}y_{0}+\frac{K}{x}{e}^{C/x}

Enzyme Kinetics

Name Brief Description
CompInhib(x,Vmax,Km,Ki,Ic)

(2015 SR0)

Competitive inhibition model for single substrate and single inhibitor.

y=\frac{V_{\text{max}}x}{K_\text{m}(1+\frac{I_\text{c}}{K_\text{i}})+x}
Note that this function is usually used in global fit, Vmax, Km and Ki should be shared, and Ic should be fixed for each dataset. The initial value of Ki can be the mean of Ic.

NoncompInhib(x,Vmax,Km,Ki,Ic)

(2015 SR0)

Noncompetitive inhibition model for single substrate and single inhibitor.

y=\frac{V_{\text{max}}x}{(1+\frac{I_\text{c}}{K_\text{i}})(K_\text{m}+x)}
Note that this function is usually used in global fit, Vmax, Km and Ki should be shared, and Ic should be fixed for each dataset. The initial value of Ki can be the mean of Ic.

UncompInhib(x,Vmax,Km,Kia,Ic)

(2015 SR0)

Uncompetitive inhibition model for single substrate and single inhibitor.

y=\frac{V_{\text{max}}x}{(1+\frac{I_\text{c}}{K_\text{ia}})(\frac{K_\text{m}}{1+\frac{I_\text{c}}{K_\text{ia}}}+x)}
Note that this function is usually used in global fit, Vmax, Km and Kia should be shared, and Ic should be fixed for each dataset. The initial value of Kia can be the mean of Ic.

MixedModelInhib(x,Vmax,Km,Ki,Alpha,Ic)

(2015 SR0)

A general equation including competitive, uncompetitive and noncompetitive inhibition as special cases.

y=\frac{\frac{V_{\text{max}}x}{1+I_c/(Alpha \cdot K_i)}}{x+\frac{K_m(1+I_c/K_i)}{1+I_c/(Alpha \cdot K_i)}}
This fitting function is for global fitting. When using it, Vmax, Km, Ki, and Alpha are shared, while Ic is a fixed constant. The initial value of Ki can be the mean of Ic.

SubstrateInhib(x,Vmax,Km,Ki)

(2015 SR0)

Substrate inhibition model at high concentrations.

y=\frac{V_{max}x}{K_m+x(1+x/K_i)}

MichaelisMenten(x,Vmax,Km) Michaelis Menten function to describe relation of concentration of substrate and enzyme velocity.

y=\frac{V_{max}x}{K_m+x}

Hill(x,Vmax,k,n) Hill function to determine ligand concentration and maximum number of binding sites.

y=V_{\max }\frac{x^n}{k^n+x^n}

Spectroscopy

Name Brief Description
GaussAmp(x,y0,xc,w,A) Amplitude version of Gaussian peak function.

(y0 = offset, xc = center, w = width, A = amplitude)
y=y_0+Ae^{-\frac{\left( x-x_c\right) ^2}{2w^2}}

InvsPoly(x,y0,xc,w,A,A1,A2,A3) Inverse polynomial peak function with center.

\begin{aligned}y=&y_0+\\
&\frac A{1+A_1\left( 2\frac{x-x_c}w\right) ^2+A_2\left( 2\frac{x-x_c}w\right) ^4+A_3\left( 2\frac{x-x_c}w\right) ^6}\end{aligned}

Lorentz(x, y0, xc, w, A) Lorentzian peak function with bell shape and much wider tails than Gaussian function.

(y0 = offset, xc = center, w = FWHM, A = area)
y = y_0 + \frac{2A}{\pi}\left (\frac{w}{4(x-x_c)^2 + w^2}\right)

PearsonVII(x,y0,xc,A,w,m) Pearson Type VII peak function is a Lorentz function raised to a power.

\begin{aligned}&y=y_0+A\frac{2\Gamma (\mu)\sqrt{2^{\frac{1}{\mu}}-1}}{\sqrt{\pi }\Gamma \left( \mu-\frac 12\right) w}\bigg[ 1+4\frac{2^{\frac{1}{\mu}}-1}{w^2}\left( x-x_c\right) ^2\bigg] ^{-\mu}\\
&m=\mu\end{aligned}

PsdVoigt1(x,y0,xc,A,w,mu) Pseudo-Voigt function, linear combination of Gaussian function and Lorentzian function.

(y0 = offset, xc = center, A = area, w = FWHM, mu = profile shape factor)
\begin{aligned}y=&y_0+A\bigg[ m_u\frac 2\pi \frac w{4\left( x-x_c\right) ^2+w^2}+\\
&\left( 1- m_u\right) \frac{\sqrt{4\ln 2}}{\sqrt{\pi}w}e^{-\frac{4\ln 2}{w^2}\left( x-x_c\right) ^2}\bigg] \end{aligned}

PsdVoigt2(x,y0,xc,A,wG,wL,mu) Pseudo-Voigt function, linear combination of Gaussian and Lorentzian with different FWHM.

(y0 = offset, xc = center, A =area, wG=Gaussian FWHM, wL=Lorentzian FWHM, mu = profile shape factor)
\begin{aligned}y=&y_0+A\bigg[ m_u\frac 2\pi \frac{w_L}{4\left( x-x_c\right) ^2+w_L^2}+\\
&\left( 1-m_u\right) \frac{\sqrt{4\ln 2}}{\sqrt{\pi}w_G}e^{-\frac{4\ln 2}{w_G^2}\left( x-x_c\right) ^2}\bigg]\end{aligned}

Voigt(x,y0,xc,A,wG,wL) Convolution of a Gaussian function (wG for FWHM) and a Lorentzian function

\begin{aligned}y=&y_0+A\frac{2\ln 2}{\pi ^{3/2}}\frac{W_L}{W_G^2}\\
&\cdot\int_{-\infty }^\infty \frac{e^{-t^2}}{\left( \sqrt{\ln 2}\frac{W_L}{W_G}\right) ^2+\left( \sqrt{4\ln 2}\frac{x-x_c}{W_G}-t\right) ^2}dt\end{aligned}

Statistics

Name Brief Description
Exponential(x,y0,A,R0) Exponential growth function with rate constant parameter.

y=y_0+Ae^{R_0x}

ExponentialCDF(x,y0,A,mu)

(2016 SR0)

Exponential cumulative distribution function.

y=\begin{cases}
y_0+A\int_{0}^{x}\frac{1}{\mu}e^{-\frac{x}{\mu}}dt \\
=y_0+A\left ( 1-e^{-\frac{x}{\mu}} \right )&x\geq 0\\
y_0&x< 0
\end{cases}

Extreme(x,y0,xc,w,A) Particular case of extreme function, Gumbel probability density function.

\begin{aligned}&y=y_0+Ae^{-e^{-z}-z+1}\\
&z=\frac{x-x_c}w
\end{aligned}

GammaCDF(x,y0,A1,a,b)

(2016 SR0)

Gamma cumulative distribution function.

y=y_0+\frac{A_1}{b^a\Gamma (a)}\int_{0}^{x}t^{a-1}e^{-\frac{t}{b}}dt\; \; \; x>0

Gauss(x, y0, xc, w, A) Area version of Gaussian Function.

(y0 = offset, xc = center, w = width, A = area)
y=y_0 + \frac{A}{\left(w\sqrt{\frac{\pi}{2}}\right)}e^{-2\left(\frac{x-x_c}{w}\right)^2}

GaussAmp(x,y0,xc,w,A) Amplitude version of Gaussian peak function.

(y0 = offset, xc = center, w = width, A = amplitude)
y=y_0+Ae^{-\frac{\left( x-x_c\right) ^2}{2w^2}}

Gumbel(x,a,b) Transformed Gumbel cumulative distribution function.

y=1-e^{-e^{\frac{x-a}b}}

Laplace(x,y0,a,b) Laplace probability density function.

y=y_0+\frac 1{2b}e^{-\frac{|x-a|}b}

Logistic(x, A1, A2, x0, p) Logistic dose response in Pharmacology/Chemistry.

y=A_2+\frac{A_1-A_2}{1+{(\frac{x}{x_0}})^p}

LogNormal(x,y0,xc,w,A) Probability density function of random variable whose logarithm is normally distributed.

y=y_0+\frac A{\sqrt{2\pi }wx}e^{\frac{-\left[ \ln \frac x{x_c}\right] ^2}{2w^2}}

LognormalCDF(x,y0,A,xc,w)

(2016 SR0)

LognormalCDF cumulative distribution function.

y=y_0+A\int_{0}^{x}\frac{1}{\sqrt{2\pi}wt}e^{-\frac{(ln(t)-x_c)^2}{2w^2}}dt

Lorentz(x, y0, xc, w, A) Lorentzian peak function with bell shape and much wider tails than Gaussian function.

(y0 = offset, xc = center, w = FWHM, A = area)
y = y_0 + \frac{2A}{\pi}\left (\frac{w}{4(x-x_c)^2 + w^2}\right)

NormalCDF(x,y0,A,xc,w) Normal cumulative distribution function.

( y0 = offset, A = Amplitude, xc = Mean, w = Standard Deviation)
y=y_0+A\int_{-x}^{x}\frac{1}{\sqrt{2\pi}w}e^{-\frac{(t-x_c)^2}{2w^2}}dt

Pareto(x,A) Pareto cumulative distribution function with one parameter, a power law probability distribution.

y=1-\frac 1{x^A}

Pareto2(x,a,b) Pareto function with two parameters.

y=1-\left( \frac bx\right) ^a

PearsonIV(x,y0,A,m,v,alpha,lam) Pearson Type IV distribution for negative discriminant, suited to model pull distributions.

\begin{aligned}&y=y_0+Ak\left[1+\left(\frac{x-\lambda\!}{\alpha\!}\right)\right]^{-m}e^{-v\tan^{-1}\left(\frac{x-\lambda\!}{\alpha\!}\right) } \\
&k=\frac{2^{2m-2}|\Gamma\!\left(m+iv/2\right)|^2}{\pi\!\alpha\!\Gamma\!\left(2m-1\right)}, m>\frac{1}{2}\end{aligned}

Poisson(x,y0,r) Poisson probability density function, a discrete probability distribution.

y=y_0+\frac{e^{-r}r^x}{x!}

Rayleigh(x,b) Rayleigh cumulative distribution function.

y=1-e^{-\frac{x^2}{2b^2}}

Weibull(x,y0,a,r,u) Weibull probability density function.

 y=y_0+\frac ba\left( \frac{x-c}a\right) ^{b-1}\exp \left\{-\left( \frac{x-c}a\right) ^b\right\}

WeibullCDF(x,y0,A1,a,b)

(2016 SR0)

Weibull cumulative distribution function.

y=\begin{cases}
y_0+A_1\int_{0}^{x}ba^{-b}t^{b-1}e^{-\left (\frac{t}{a}\right)^b}dt\\
=y_0+A_1\left ( 1- e^{-\left (\frac{x}{a}\right)^b}\right )&x>0\\
y_0 & x\leq 0
\end{cases}

Quick Fit

Name Brief Description
Boltzmann(x, A1, A2, x0, dx) Boltzmann Function - produce a sigmoidal curve.

y = A_2 + (A_1-A_2)/(1 + e^{(x-x_0)/dx})

DoseResp(x,A1,A2,LOGx0,p) Dose-response curve with variable Hill slope given by parameter 'p'.

y=A_1+\frac{A_2-A_1}{1+10^{\left( Logx0-x\right) p}}

ExpDecay1(x,y0,x0,A1,t1) One-phase exponential decay function with time offset, x0 should be fixed.

y=y_0+A_1e^{-(x-x_0)/t_1}

ExpGrow1(x,y0,x0,A1,t1) One-phase exponential growth with time offset, x0 should be fixed.

y=y_0+A_1e^{(x-x_0)/t_1}

Gauss(x, y0, xc, w, A) Area version of Gaussian Function.

(y0 = offset, xc = center, w = width, A = area)
y=y_0 + \frac{A}{\left(w\sqrt{\frac{\pi}{2}}\right)}e^{-2\left(\frac{x-xc}{w}\right)^2}

Hill(x,Vmax,k,n) Hill function to determine ligand concentration and maximum number of binding sites.

y=V_{\max }\frac{x^n}{k^n+x^n}

Hyperbl(x, P1, P2) Hyperbola funciton, also the Michaelis-Menten model in Enzyme Kinetics.

y=\frac{P_1x}{P_2 + x}

Logistic(x, A1, A2, x0, p) Logistic dose response in Pharmacology/Chemistry.

y=A_2+\frac{A_1-A_2}{1+\left(\frac{x}{x_0}\right)^p}

Lorentz(x, y0, xc, w, A) Lorentzian peak function with bell shape and much wider tails than Gaussian function.

(y0 = offset, xc = center, w = FWHM, A = area)
y = y_0 + \frac{2A}{\pi}\left (\frac{w}{4(x-x_c)^2 + w^2}\right)

Sine(x,y0,xc,w,A) Sine wave function oscillates around a specified value.

y=y_0+A\sin \left( \pi \frac{x-x_c}w\right)

Voigt(x,y0,xc,A,wG,wL) Convolution of a Gaussian function (wG for FWHM) and a Lorentzian function.

\begin{aligned}y=&y_0+A\frac{2\ln 2}{\pi ^{3/2}}\frac{W_L}{W_G^2}\\
&\cdot\int_{-\infty }^\infty \frac{e^{-t^2}}{\left( \sqrt{\ln 2}\frac{W_L}{W_G}\right) ^2+\left( \sqrt{4\ln 2}\frac{x-x_c}{W_G}-t\right) ^2}dt\end{aligned}

Multiple Variables

Name Brief Description
GaussianLorentz(y0, xc, A1, A2, w1, w2) One independent and two dependent variables, shared parameters.

y_1 = y_0 + \frac{A_1}{w_1\sqrt{\frac{\pi}{2}}}e^{-2\left(\frac{x-x_c}{w_1}\right)^2}

y_2 = y_0 + 2\frac{A_2}{\pi}(\frac{w_2}{4(x-x_c)^2 + w_2^2)}

Helix(x,x0,y0,A,w,p) 3D Helix Function.

x = A\cos(wz+p) + x_{0}

y = A\sin(wz+p) + y_{0}

HillBurk(Vm1, Km1, Vm2, Km2) Combination of Hill and Burk models with two independent and two dependent variables.

v_1=V_{m1}\frac{x_1}{k_{m1}+x_1}

v_2=\frac{1+K_{m2}x_2}{V_{m2}}

Line3(a, b, c, d) 3D Line function with slopes and intercepts.

y = a + bx

z = c + dx

LineExp(x,Vmax,k,n) Combination of Line and Exponential models with one independent and two dependent variables.

y_1 = a_1 + b_1x

y_2 = a_2 + b_2e^{\frac{x}{c}}

Miscellaneous

Name Brief Description
BitAND(n1, n2) Returns bitwise AND operation of two integers.
BitOR(n1, n2) Returns bitwise OR operation of two integers.
BitXOR(n1, n2) Returns bitwise XOR operation of two integers.
If(con, val_true$[,val_false$])$ and If(con, val_true[,val_false])

(2019 SR0)

Evaluate condition expression con and returns val_true if the comparison is TRUE, val_false if FALSE. Example
  • if(A>B,1,0) will return 1 if col(A)>col(B), otherwise return 0.
IfNA(val, val_na$)$

(2019 SR0)

Calculate the given value val and return the specified string val_na if the result is missing, otherwise return the string display of val. Example
  • IfNA(col(A)/col(B),"not found")$, return "not found" if col(A)/col(B) is missing, otherwise return the string display of col(A)/col(B)
Ifs(con1, d1[, con2, d2,]...[, con40, d40]) and Ifs(con1, str1$[, con2, str2$]...[, con40, str40$])$

(2019 SR0)

Evaluate multiple conditions conn and returns the corresponding d/str of the first TRUE condition. Example
  • Ifs(A>0.5,"Large",A<0.3,"Small",1,"Other")$, if values in col(A) is larger than 0.5, return Large, if smaller than 0.3, returns Small, the rest in between will return Other.
ISNA(d) Determines whether the number is a NANUM.
isText(str$)

(2015 SR0)

Determine whether a value is a text. Return 1 for text; return 0 for numeric value or NANUM.
NA() Returns NANUM.
ocolor2rgb(oColor)

(2019 SR0)

Convert an internal color code oColor to RGB value.
switch(expression, val1, res1$[, val2, res2$]...[, val39, res39$][, default$])$ and switch(expression, val1, res1[, val2, res2]...[, val39, res39][, default])

(2019 SR0)

Evaluate value expression with a set of values val,and if there is a matched value valn, return the corresponding resn. Example
  • switch(A,1,"A1",2,"B1",3,"C1","Other")$
xf_get_last_error_code() Get the last error code value of XFunction engine.
xf_get_last_error_message()$ Get the last error string message of XFunction engine.
xor(n1,n2)

(2019 SR0)

Returns XOR operation of two logical values n1 and n2. Example
  • XOR(1>0,7>2) returns 0 because both TRUE
  • XOR(1<0,7<2) returns 0 because both FALSE
  • XOR(1>0,7<2) returns 1 because 1st TRUE and 2nd FALSE

Engineering

Name Brief Description
Base(num,radix[,len])$

(2019 SR0)

Convert a given integer num into a string representation of the specified

radix.

Bin2Dec(str$) Convert a binary number to decimal.
BitLShift(num,shift)

(2019 SR0)

Shift a decimal number num left by the specified number of bits shift.
BitRShift(num,shift)

(2019 SR0)

Shift a decimal number num right by the specified number of bits shift.
Convert(d,str1$,str2$) Convert a number from one measurement system to another.
Decimal(text$,radix) Convert a string representation text in the specified radix into a

decimal number.

Dec2Bin(n)$ Convert a decimal number to binary. The input range is limited to -512 to 511.
Dec2Hex(n[,places])$ Convert a decimal number to hexadecimal and optionally, specify number of characters.
Hex2Dec(str$) Convert a string representation of a hexadecimal number to decimal.

Complex

Name Brief Description
Imabs(c) Get the modulus of a complex number.
Imaginary(c) This function is used to get the imaginary part of a complex number.
Imargument(c) Get the argument (theta) of a complex number.
Imatan(c)

(2016 SR0)

Calculate the inverse tangent of a complex number.
Imatanh(c)

(2016 SR0)

Calculate the inverse hyperbolic tangent of a complex number.
Imconjugate(c) Get the conjugate of a complex number.
Imcos(c) Calculate the cosine value for a complex number.

ImCos(C) = \frac{e^{iC}+e^{-iC}}{2}

where C is a complex, and i = \sqrt{-1}.

Imcosh(c)

(2019 SR0)

Calculate the hyperbolic cosine of a given complex number.
Imcot(c)

(2019 SR0)

Calculate the cotangent of a given complex number.
Imcsc(c)

(2019 SR0)

Calculate the cosecant of a given complex number.
Imcsch(c)

(2019 SR0)

Calculate the hyperbolic cosecant of a given complex number.
Imsec(c)

(2019 SR0)

Calculate the secant of a given complex number.
Imsech(c)

(2019 SR0)

Calculate the hyperbolic secant of a given complex number.
Imsinh(c)

(2019 SR0)

Calculate the hyperbolic sine of a given complex number.
Imtan(c)

(2019 SR0)

Calculate the tangent of a given complex number.
Imdiv(c1,c2) Calculate the complex division.
Imexp(c) Calculate the exponential value for a complex number.

ImExp \left (x+iy \right ) = e^x*(cos(y)+sin(y)*i)

where i=\sqrt{-1}.

Imln(c) Calculate the natural logarithm of the complex number.

ImLn \left(x+iy \right) = Ln(ImAbs(x+iy))+i*atan2(y, x)

where ImAbs computes the modulus of the complex,

Imlog10(c) Calculate the base 10 logarithm of a complex number.

ImLog10 \left( x+iy \right ) = \frac{ImLn(x+iy)}{ImLn(10)}

where ImLn computes the natural logarithm of the complex, and i=\sqrt{-1}.

Imlog2(c) Calculate the base 2 logarithm of a complex number.

ImLog2 \left( x+iy \right ) = \frac{ImLn(x+iy)}{ImLn(2)}

where ImLn computes the natural logarithm of the complex, and i=\sqrt{-1}.

ImPower(c,d) Calculate the given complex to the power of the specified value.
Improduct(c1,c2) Perform the product (multiplication) operation of two complex numbers.

ImProduct(x1+i*y1, x2+i*y2)\\=(x1*x2-y1*y2)+i*(x1*y2+x2*y1)

ImReal(c) Get the real part of the specified complex number.
Imsin(c) Calculate the sine value for a complex number.

ImSin(C) = \frac{e^{iC}-e^{-iC}}{2i}

where C is complex, and i = \sqrt{-1}.

Imsqrt(c) Calculate the square root of a complex number.
ImSub(c1,c2) Perform subtraction between two complex numbers.
ImSum(c1,c2) Get sum of two specified complex numbers.
Real2Complex(real,imag) Convert the specified two reals into a complex number. Note that the data type of output column needs to be set as complex (16) in advance. examples:
  • real2complex(1, 2) returns complex number 1 + 2i
  • real2complex(col(A), col(B)) returns a complex vector, the real part uses values from column A, imaginary part from column B

Financial

Name Brief Description
Effect(nrate,npery) Calculates the effective annual interest rate.
Nominal(erate,npery) Calculates the nominal annual interest rate.
pDuration(rate,pv,fv) Calculates the number of periods required by an investment to reach a desired future value.
RRI(nper, pv, fv) Calculates an equivalent interest rate for the growth of an investment.

Notes on Use

Each function returns either a single value or a range of values (a dataset), depending on the type of function and the arguments supplied. Unless otherwise specified, all functions will return a range if the first argument passed to the function is a range, and all functions will return a value if a value is passed.
