2.10.7 plot_gindexed

1 Menu Information
2 Brief Information
3 Additional Information
4 Command Line Usage
5 X-Function Execution Options
6 Variables
7 Description
8 Examples

Menu Information

Plot > 2D: Bar: Grouped Columns - Indexed Data
Plot > 2D: Scatter: Grouped Scatter - Indexed Data

Brief Information

Create grouped column/bar plot with indexed data

Additional Information

Minimum Origin Version Required: 9.1 SR0

Command Line Usage

1. plot_gindexed iy:=[Book1]Sheet1!(,B,C) group:=[Book1]Sheet1!col(D); //Column B as input Y, column C as Y error, column D as grouping range

2. plot_gindexed iy:=[Book1]Sheet1!((,2),(,3)) group:= [Book1]Sheet1!(4,5) plottype:=1; //Column 2 and 3 as input Y, column 4 as the first grouping range, column 5 as the second grouping range.

X-Function Execution Options

Please refer to the page for additional option switches when accessing the x-function from script

Variables

Display Name	Variable Name	I/O and Type	Default Value	Description
Data Column(s)	iy	Input XYRange	<active>	The input data range. It can be one or more Y columns, optionally with associated Y error columns.
Group Column(s)	list	Input int	0	This variable is not supposed to be changed by users.
	btn	Input int	0	This variable is not supposed to be changed by users.
	group	Input Range	<unassigned>	The data range of the grouped column.
Sort Groups	sort	Input int	1	This variable is not supposed to be changed by users.
Plot Type	plottype	Input int	0	Plot type. Allowed values: 0=column:Column 1=bar:Bar 2=scatter:Scatter
Output Data	rd	Output ReportData	[<input>]<new>	Specify where to output the calculated data.

Description

This X-Function creates a grouped column/bar plot from indexed data. You can specify the input range (possible to include Y error columns) and the grouping range with specified sequences.

Note: in Origin 2017 or ealier versions, this X-Function is not accessible from LabTalk script. To plot grouped column/bar chart from script, you will need to use

worksheet -px

Below are 2 examples:

worksheet -px ? gColumn plot_gindexed iy:=[Book1]Sheet1!(,B,C) group:=[Book1]Sheet1!col(D);

worksheet -px ? gColumn plot_gindexed iy:=1!((,2),(,3)) group:= 1!(4,5) plottype:=1;

Examples

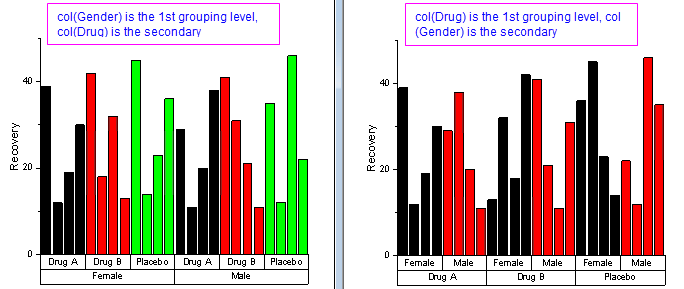

Use the following script to import the Categorical Data.dat file under <Origin EXE Folder>\Samples\Graphing path, and then create two grouped column plots from column B: one with column C as first grouping level and D as the second grouping level, the other with column D as the first grouping level and C as the second.

doc -s;
doc -n;

newbook;
string fn$=system.path.program$ + "Samples\Graphing\Categorical Data.dat";
impASC fname:=fn$;

string bkn$ = %H;
plot_gindexed iy:=1!col(B) group:=1!(C,D);
window -a %(bkn$);
plot_gindexed iy:=1!col(B) group:=1!(D,C);
