17.1.4 Cross Tabulation and Chi-square (Pro Only)


Cross tabulation and Chi-square (also known as contingency table) is a table to reveal the frequency distribution of the variables. Analysis based on the table can determine whether there is a significant relationship, obtain the strength and direction of the relationship, and measure and test the agreement of matched-pairs data. It is widely used to analysis categorical data.

Cross Tabulation 01.png

Goals

There are four main goals for cross tabulation:

  • Frequency analysis
    To display the frequency distribution of the variables in a table format, calculating counts, percentage or even residual for each cell.
  • Test of independence
    To determine whether there is a significant relationship between variables in the contingency table.
  • Measuring association
    To assess the strength and direction of the relationship between the variables in the contingency table.
  • Measuring agreement
    To test or measure to what degree two different rater or two different systems of evaluation are in agreement. For example, it can be used to consider how consistent that the the survey takers give their choice. such as agreeing or disagreeing with a statement

Processing Procedure

Preparing Analysis Data

Cross tabulation and Chi-square analysis can be performed on the raw data or frequency data.

  • Raw data
    There is a column for each variable and each row represents an observation.
  • Frequency data
    There is a column for each variable and a column of frequencies. Each row represents a level in the group.The column of frequencies represents the numbers of observations of the level in the data.
    For example
Sex Frequencies
Female 15
Male 21

To exclude missing values from analysis, we should set the columns as categorical. Otherwise the missing values will be kept as numeric values.

Selecting Marginal and Cell Statistics For Contingency Table

Counts

  • Counts
    The observed frequency for each cell
  • Expected Counts
    The observed frequency for each cell under the assumption that the column and row variable are independent

Percentages

  • Percentages of Row Counts (Row%)
    Percent of each cell count to its row total
  • Percentages of Column Counts (Col%)
    Percent of each cell count to its column total
  • Percentages of Total Counts (Total%)
    Percent of each cell count and margin total to the grand total

Residuals

Origin provides three kind of residuals, Usually the more the value is close to zero, the more likely the column and row variable has no association. Please view interpreting results page for more information

  • Residuals
    The difference between the observed count and the expected count.
  • Standardized Residuals
    Also called Pearson residual.It standardizes the residuals by dividing by the square root of the expected count.
  • Adjusted Residuals
    It is further standardized by taking into account of overall size of the sample. The most useful residual for comparing residual between different cells.

Selecting Methods for Test of Independence

Origin provides two different methods to test whether there is significant relationship between variables in the contingency table.

  • Chi-Square tests
    A commonly used test for hypothesis that the row and column variables are independent.
  • Fisher's Exact test
    Fisher's exact test is available only for a 2*2 table. It is particularly useful when sample sizes are small (even zero in some cells) and the Chi-square test is not appropriate.

Selecting Methods for Measuring Association

Measures for Nominal Variables

Chi-Square Based Measurements
  • Phi
    Phi is a statistic which adjusts the chi-square by taking account of the sample size. Usually it is used for comparing 2*2 tables.
  • Contingency coefficient
    Contingency coefficient is another statistic which adjusts the chi-square by the sample size. Similar to Phi, it also not recommended for comparing between tables of different dimension. But when the tables have the same dimension(same n and same m while n,m>2), it is useful. Comparing to Phi, it is kind of standardized statistic so that user can comparing with the statistic with 1 to measure the association between variables when n > 2 and m > 2
  • Cramer's V
    A statistic which adjusts the chi-square by both the sample size and the dimension of table(n*m). It is commonly used for comparing the association between tables which have different dimensions.

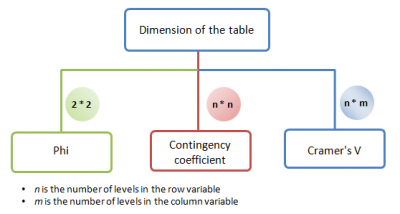

ChiSquare Measures.png
PRE Measurements
  • Lambda
    The most commonly used measurement for proportional reduction in error(PRE), which is by what percentage do we reduce our error when using the independent variable to predict the dependent variable. If the dependent variable is not predictable by the independent variable (Lamda = 0), it is more likely that the the two variable has no association.
  • Uncertainty Coefficient
    Another measure measurement for PRE. But it is more conservative than Lambda

Measures for Ordinal Variables

  • Gamma
    Classic statistic for ordinal variables. No correction for ties
  • Kendall's tau-b and tau-c
    The most commonly used statistics for ordinal variable. It is similar to Gamma but corrected for ties. Kendall's tau-b is used for n*n table while tau-c can be used for n*m table.
  • Somer's D
    Differ from Gamma and Kendall's tau-b and tau-b, Somer's D is an asymmetric statistic. It is appropriate when you want to identify which variable is depend on another. For example, it is useful to detect whether there is association between scores in examination (1,2,3,4,5) and the studying time out of school per week (5~10hr, 10~15hr ect...). The score in examination is the dependent variable and studying time out of school per week is the independent variable

Selecting Methods for Measuring Agreement

  • Kappa
    Kappa is also known as Cohen's Kappa. It is to test whether two rater are agree with each other and to what degree two raters are in agreement when they are call up to evaluate the same object.
  • Bowker's Test
    Also called the McNemar-Bowker test of symmetry. It is known as McNemar test for 2*2 table and Bowker's test for n*n table. It measures the agreement of matched-pairs data that each observation in one rater matches the observation of the other. For example, it tests whether the proportion of normal patient rater 1 evaluates is equal to the proportion of normal patients rater 2 evaluate when they evaluate the same group of patients.

Selecting Other Measures

  • Odds Ratio
    It is available only for a 2*2 table. Odds Ratio measures the ratio of the odds that an event or result will occur to the odds of the event not happening.
  • Relative Risk
    It is available only for a 2*2 table.Relative Risk measures the ratio of the odds of an event occurring in an group to the odds of the event occurring in a comparison group.
  • Cochran-Mantel-Haenszel
    Cochran-Mantel-Haenszel tests are used to assess whether there is any relationship between the row and column variable after controlling for the layer variable. They consist of two type of tests( Conditional Independence Test, Odds Ratios’ Homogeneity Tests) and an estimator of Common Odds Radio.

Performing Cross Tabulation and Chi-square

  • Select Statistics: descriptive statistics: Cross Tabulation and Chi-square
    Or
  • Type crosstab -d in script window.


This section covers the following topics:
