6.3.2 Multiple Layers with Linked Axis


Video Image.png Video Text Image.png Website blog icon circle.png Blog Image 33x33px.png

Summary

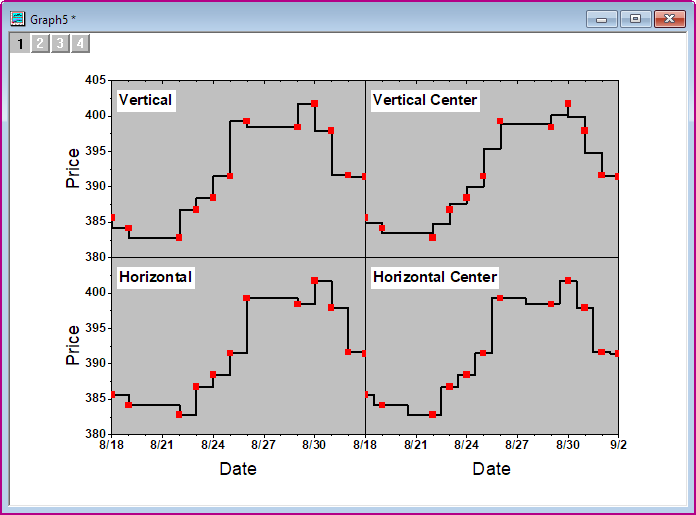

This tutorial will show how to merge four graphs to one graph, which contains multiple layers with linked axis.

Multiple Layers with Linked Axis tutorial 01.png

What you will learn

  • How to make a Line + Symbol plot
  • How to merge graphs
  • How to link axis of layers
  • How to customize axis

Steps

This tutorial is associated with the Tutorial Data project:<Origin EXE Folder>\Samples\Tutorial Data.opj.

  1. Open the Tutorial Data project and browse to folder Multiple Layers with Step Plot in Project Explorer.
  2. Activate the workbook and highlight column Value1 and make a graph by selecting Origin menu Plot > Basic 2D : Line + Symbol.
  3. Activate the graph, right-click the legend and choose Properties from the context menu. In the Object Properties dialog,
    • In the Text tab, put this text in the text field: \b(Vertical) and set Size to 36.

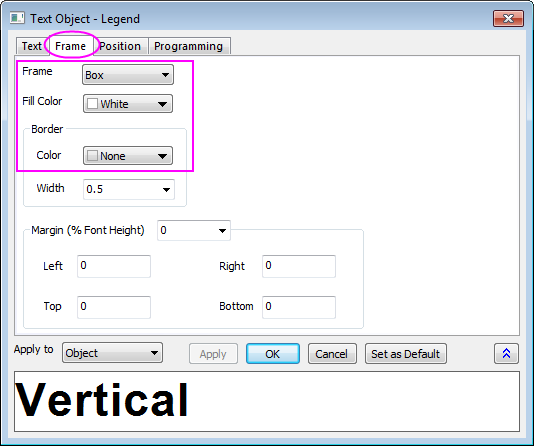

    • Go to the Frame tab, and set as following image. Click the OK button. Move the legend to the correct position.
    Multiple Layers with Linked Axis tutorial 2.png

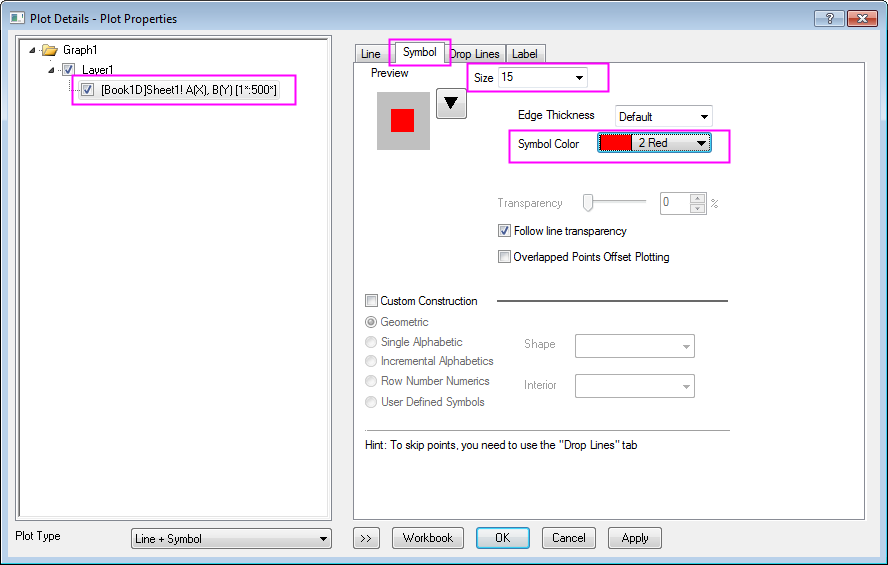

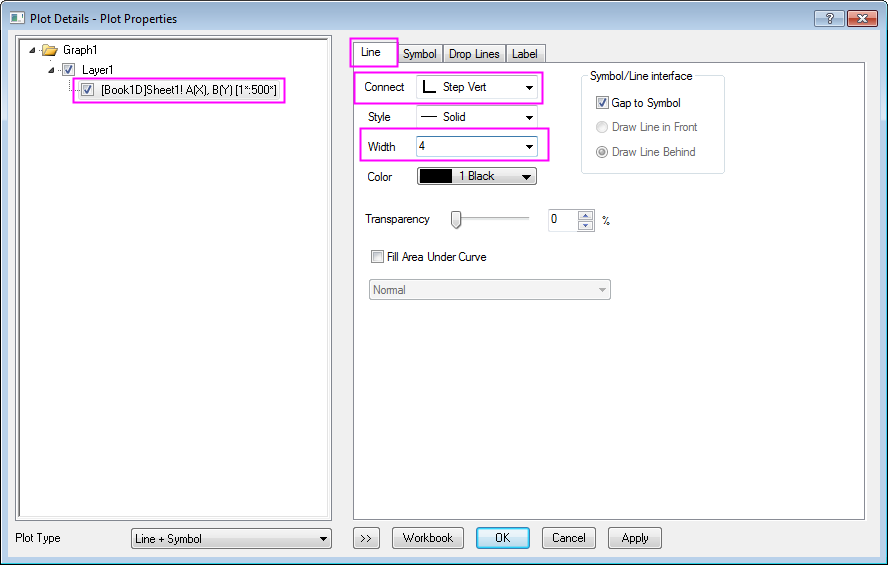

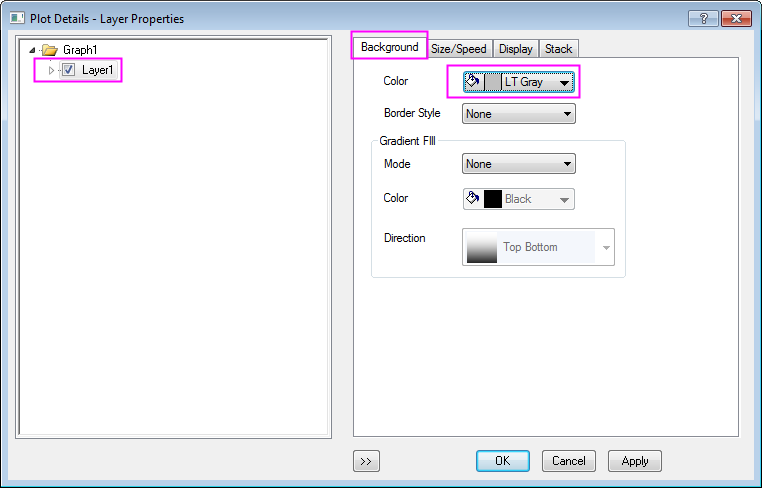

  4. Double click on the open white space in layer of the graph to open the Plot Details dialog. In the left panel, select Layer1. Activate the Background tab in the right panel, choose LT Gray for the Color. Then select the plot in Layer1 from the left panel, under the Symbol tab in the right panel, set Size to 15 and Symbol Color to red. Switch to the Line tab, choose Step Vert from the Connect drop-down list and set Width to 4 and click OK to apply settings.
    Multiple Layers with Linked Axis tutorial 3.png
    Multiple Layers with Linked Axis tutorial 4.png
    Multiple Layers with Linked Axis tutorial 5.png
  5. Now we are going to duplicate similar graphs from the other three columns. Right click on the graph window title bar and select Duplicate (Batch Plotting) from the context menu:
    Multiple Layers with Linked Axis tutorial 17.png

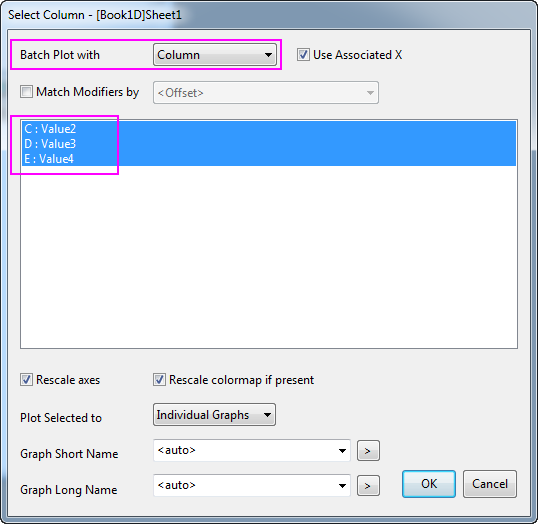

  6. In the dialog that opens, select Column from the Batch Plot with drop-down list, hold Ctrl key and click to select all three columns C, D, E and click OK:
    Multiple Layers with Linked Axis tutorial 18.png
  7. For graph from each column, the legend text and Connect drop-down list will be different, listed below.
    For column Value2: legend text = \b(Vertical Center); Connect = Step V Center
    For column Value3:legend text = \b(Horizontal); Connect = Step Horz
    For column Value4: legend text = \b(Horizontal Center); Connect = Step H Center

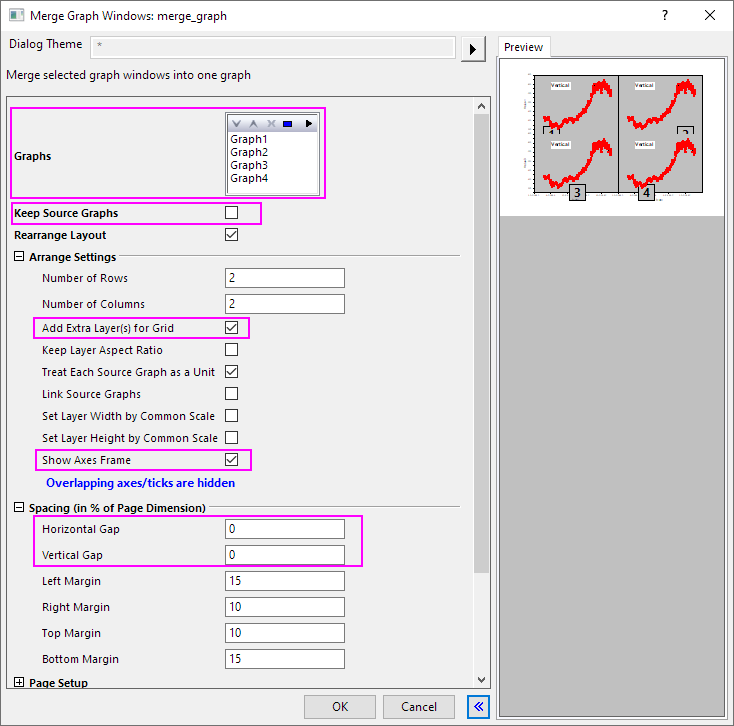

  8. Activate a graph and then select Origin menu Graph: Merge Graph Windows to open the merge_graph dialog. Change the settings as the following image shows. Then click the OK button to merge these graphs.
    Multiple Layers with Linked Axis tutorial 6.png

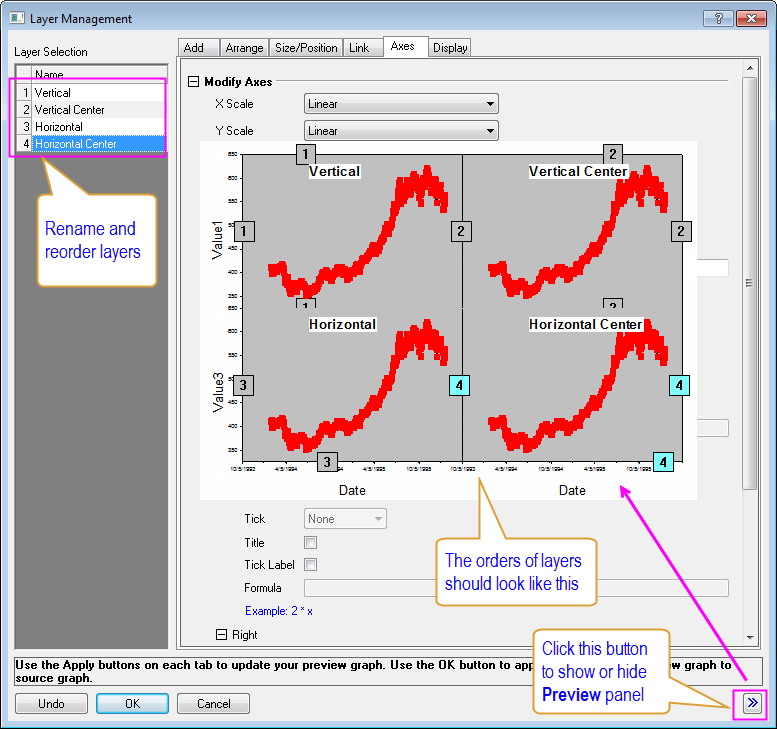

  9. Activate the new merged graph, choose Origin menu Graph: Layer Management to open the Layer Management dialog. In the Layer Selection panel, rename the layers by double clicking on the name and reorder the layers by clicking on the layer index and dragging up and down. Make sure the final layers' names and order are the same as the image shows below (In the Preview panel, the layers' indices and positions can be shown).
    Multiple Layers with Linked Axis tutorial 7.png

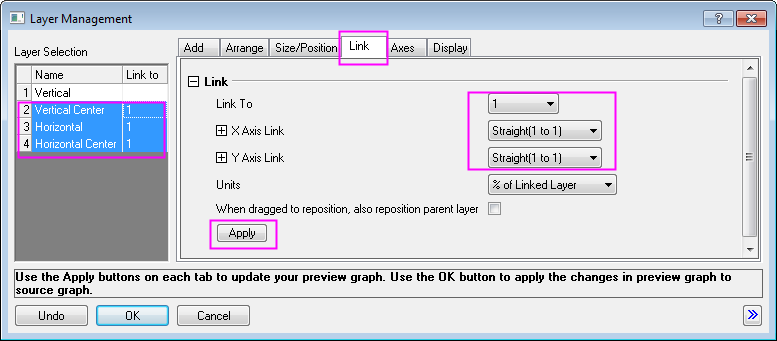

  10. In the Layer Selection panel, press Ctrl key on the keyboard to select the following layers: Vertical Center, Horizontal and Horizontal Center. Go to the Link tab, select 1 from the Link To drop-down list. Then both X Axis Link and Y Axis Link are set to Straight(1 to 1). Then click the Apply button.
    Multiple Layers with Linked Axis tutorial 8.png

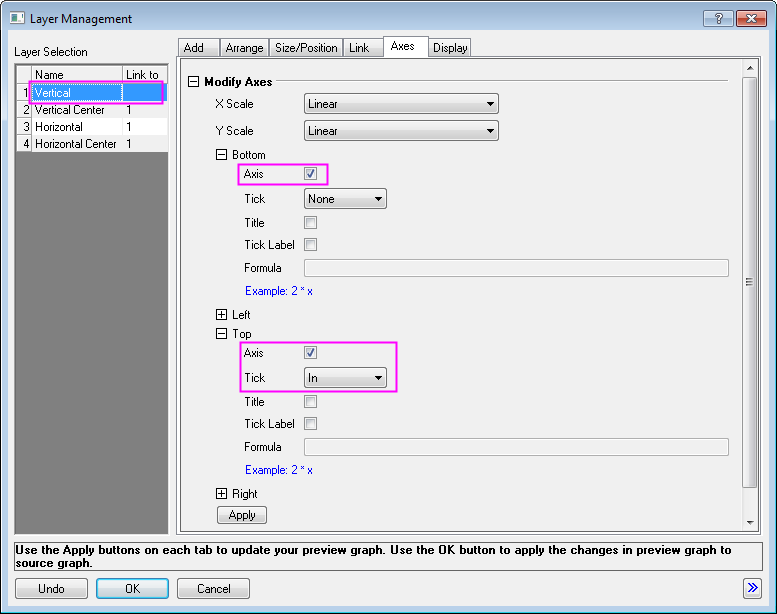

  11. Go to the Axes tab, select Vertical layer from the left panel, then check all Axis check-boxes under Bottom branch, Left branch, Top branch and Right branch. Also, select In for Tick drop-down list under Top branch. Click the Apply button.
    Multiple Layers with Linked Axis tutorial 9.png

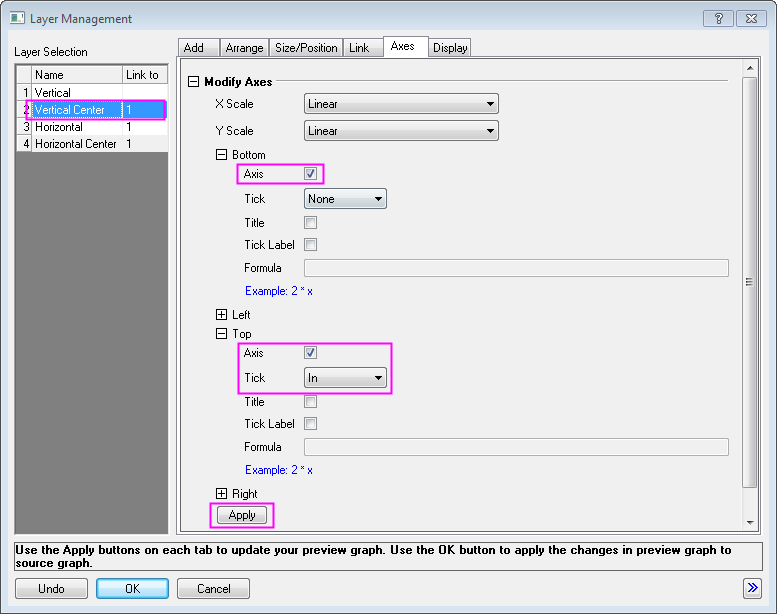

  12. Select Vertical Center layer, in the Axes tab, Bottom branch, Left branch and Right branch share the same settings. And settings for Top branch shows in the image below. Click the Apply button.
    Multiple Layers with Linked Axis tutorial 10.png

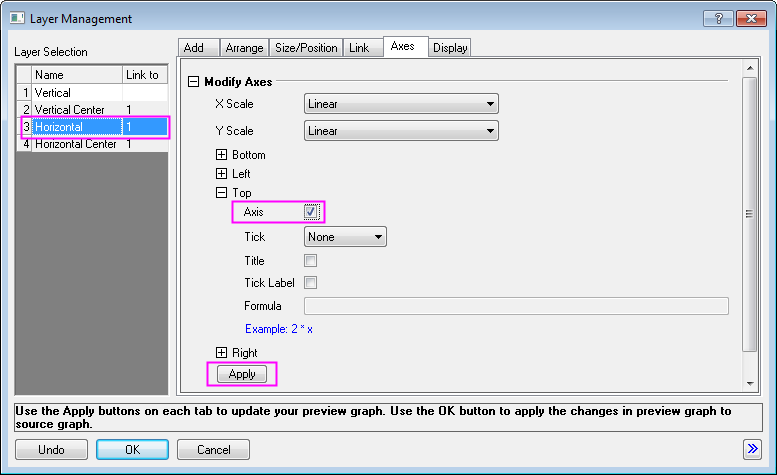

  13. Select Horizontal layer, in the Axes tab, check the Axis check-boxes under both Top branch and Right branch. Click the Apply button.
    Multiple Layers with Linked Axis tutorial 11.png

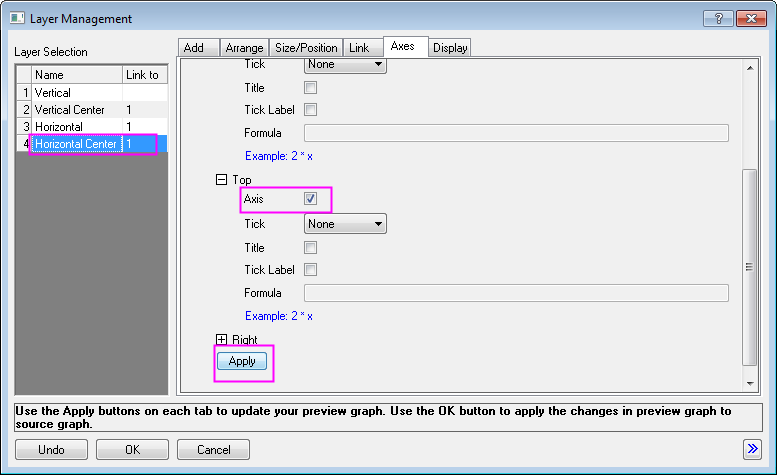

  14. Select Horizontal Center layer, in the Axes tab, check the Axis check-box under Top branch. Click the Apply button.
    Multiple Layers with Linked Axis tutorial 12.png
  15. Click the OK button to close the Layer Management dialog.

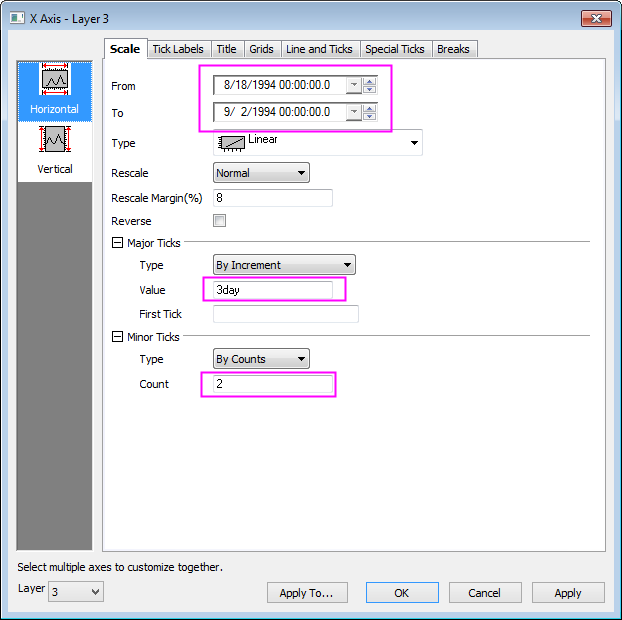

  16. Double click on the X axis of the lower-left layer to open the X Axis dialog. In the Scale tab, change the axis scale as the image below:
    Multiple Layers with Linked Axis tutorial 13.png

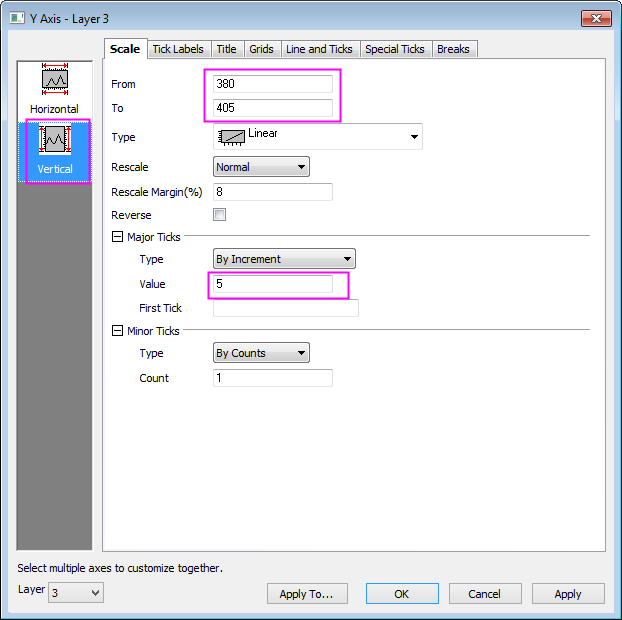

  17. Click the Vertical icon on the left panel to go to Scale tab for Y Axis and change the axis scale:
    Multiple Layers with Linked Axis tutorial 14.png

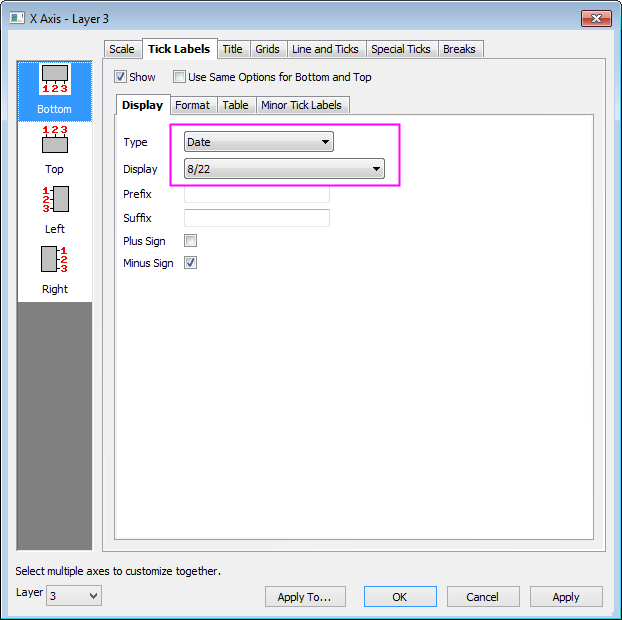

  18. Go to Tick Labels tab and click Bottom icon on the left panel and change the display of X tick labels:
    Multiple Layers with Linked Axis tutorial 15.png

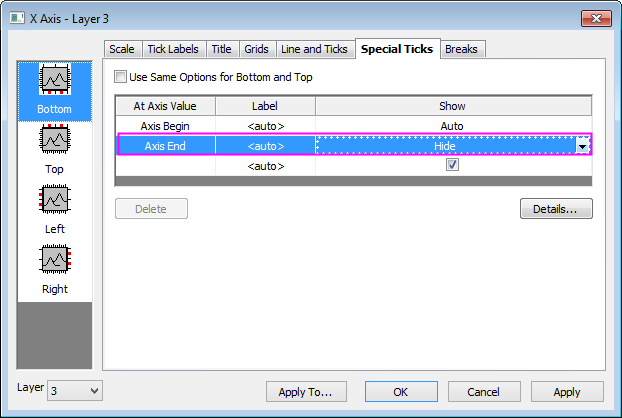

  19. Go to Special Ticks tab and hide the label at axis end by selecting Hide from Show drop-down list for Axis End:
    Multiple Layers with Linked Axis tutorial 16.png
  20. Click on the Left icon on left panel, and hide the label at Y axis end by selecting Hide from Show drop-down list for Axis End.
  21. Select Layer 4 in the left-bottom corner of the Axis dialog. And then repeat step 18.
  22. Go to Tick Labels tab and Format sub-tab, then set the Size to 16 and check Bold box.
  23. Click OK to save the setting and close the dialog.

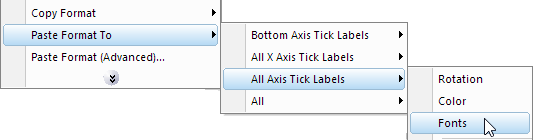

  24. Right-click on the X Axis Tick Label, and select Copy Format. Right-click on the black space of the graph, and select Paste Format to... : All Axis Tick Labels : Font
    Multiple Layers with Linked Axis tutorial 20.png
  25. Click on a Axis Title. In the Mini Toolbar, set font size to 18.
  26. Right-click on edited Axis Title, and select Copy Format: Styles. Right-click on the black space of the graph, and select Paste Format to... : All Axis Titles : Font
  27. Change the both Y titles to Price, and then make Titles to bold.
