25.5.1 The Custom Menu Organizer Dialog Box


The Custom Menu Organizer allows you to create new menus or hide the built-in menus.

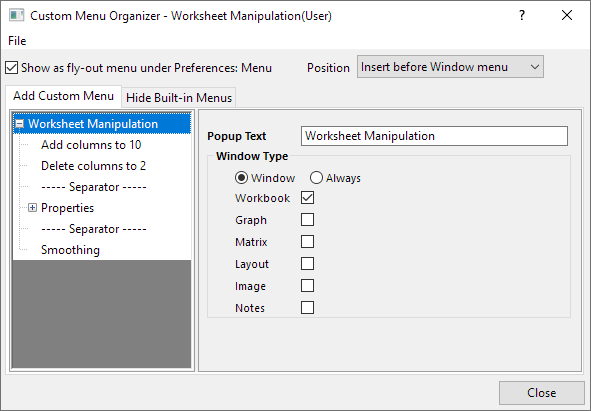

Custom Menu Organizer Dialog.png

The File Menu

The configuration of the customized menus can be saved as an .omc file, which can be easily shared with others. The File menu in the Custom Menu Organizer offers a group of options to operate .omc files.

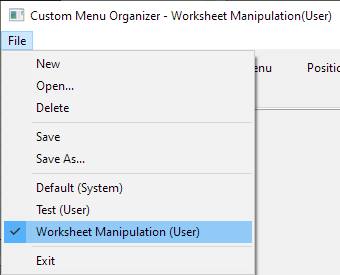

File Menu New.png
New Create a new .omc file.
Open... Open an existing .omc file.
Delete Delete the current .omc file from the disk permanently.
Save Save the current file to disk using the current file name.
Save As... Save the current file using a new file name.
The list of the available .omc file The highlighted part in the above screenshot shows all the .omc files which are found in Origin's System folder, User Files Folder and the Group folder. You can select one of them to edit it.
Exit Exit the Custom Menu Organizer.

Other Controls in this Dialog

Show as fly-out under Preferences: Menu Specify whether to show the name of the current .omc file as a fly-out menu under the Preferences menu.
Position Specify the position of the custom menu.

Option list:

  • Append after Help menu
    Add the custom menu after the Help menu.
  • Insert before Window menu
    Insert the custom menu before the Window menu.
Close Click this button to close the Custom Menu Organizer dialog.

The Add Custom Menu Panel

The left part of this panel lists custom menus in a tree-like structure. You can create up to 3 main popup menus by creating them with the New Main Popup short-cut menu commands (You can right-click on the blank place of the left panel to open the short-cut menu) or by duplicating the existed main popup menu. Each main popup menu may include several popup menus, menu items and separators.

  • Popup menu: contains multi-level menus. The maximum menu level is 5.
  • Menu item: contains scripts that are executed when the menu item is selected.
  • Separator: separate a group of menu options which have a similar function.

The right part of this panel contains different controls to set the properties of the popup menus or menu items. Note that the controls in right panel will be different if the type of the menu option has been changed.

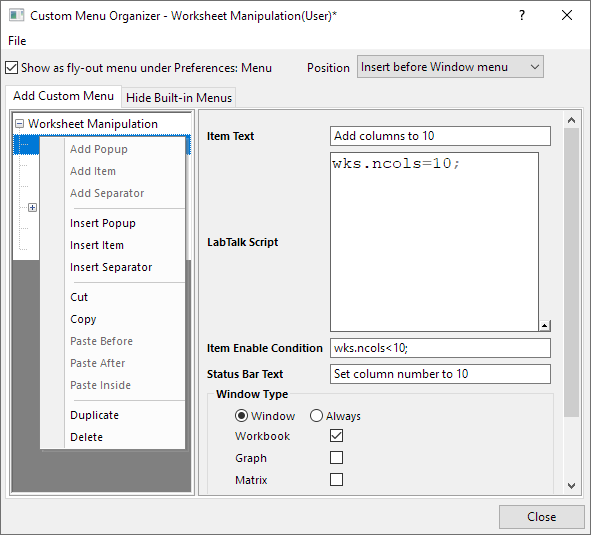

Add Custom Menu Panel New.png

Dialog Box Controls and Context Menu when a Main Popup Menu is selected

Dialog Box Controls

Popup Text Specify the label of the main popup menu.
Window Type Specify the instances when the main popup menu is available.
  • Window
If the checkbox to the right of a window type is not selected, the popup menu and its sub-menus will be unavailable when the active window is of this window type.
  • Always
If this radio button is selected, the popup menu will always be available regardless of the active window type.

Context Menu

Add Popup Add a sub-popup at the end of the menu option list of the current main popup menu.
Add Item Add a menu item at the end of the menu option list of the current main popup menu.
Add Separator Add a separator at the end of the menu option list of the current main popup menu.
Insert Popup It is available only when the number of main popup menus is fewer then 3. Insert a main popup menu before the current main popup menu.
Cut Cut the selected main popup menu.
Copy Copy the selected main popup menu.
Paste Before It is available only when a popup menu has been cut or copied. Paste the popup menu before the current main popup menu.
Paste After It is available only when a popup menu has been cut or copied. Paste the popup menu after the current main popup menu.
Paste Inside It is available only when a menu option has been cut or copied. Paste the menu option inside the current main popup menu.
Duplicate It is available only when the number of main popup menus less than 3.Duplicate the selected main popup menu.
Delete Delete the selected main popup menu.

Dialog Box Controls and Context Menu when a Sub Popup Menu is Selected

Dialog Box Controls

Popup Text Specify the label of the sub popup menu.
Window Type Specify the instances when the sub popup menu is available.
  • Window
If the checkbox to the right of a window type is not selected, the sub popup menu will be unavailable when the active window is of this window type.
  • Always
If this radio button is selected, the sub popup menu will always be available regardless of the active window type.
Merge Tag Specify the merge tag. If two or more sub popup menus have the same tag, they will be merged as one when the menus has been activated.

Context Menu

Add Popup Add a sub popup menu at the end of the menu option list of the selected popup menu.
Add Item Add a menu item at the end of the menu option list of the selected popup menu.
Add Separator Add a Separator at the end of the menu option list of the selected popup menu.
Insert Popup Insert a popup menu before the selected popup menu.
Insert Item Insert a menu item before the selected popup menu.
Insert Separator Insert a separator before the selected popup menu.
Cut Cut the selected popup menu.
Copy Copy the selected popup menu.
Paste Before It is available only when a menu option has been cut or copied. Paste the menu option before the selected popup menu.
Paste After It is available only when a menu option has been cut or copied. Paste the menu option after the selected popup menu.
Paste Inside It is available only when a menu option has been cut or copied. Paste the menu option inside the selected popup menu.
Duplicate Duplicate the selected popup menu.
Delete Delete the selected popup menu.

Dialog Box Controls and Context Menu when a Menu Item is Selected

Dialog Box Controls

Item Text Specify the label of the menu item.
LabTalk Script Enter the LabTalk script that should be associated with the menu item in this edit box. When the menu item is clicked, the script will be executed.
Item Enable Condition Specify the condition when the menu item should be enabled. For example, enter wks.ncols>2 in this edit box. Then the menu item will be enabled only when the active worksheet has more than two columns. Leave this edit box empty if you want the menu item to be always enabled.
Status Bar Text Specify the text that will be shown in the Status Bar when the mouse hovers over the menu item.
Window Type Specify the instances when the sub popup menu is available.
  • Window
If the checkbox to the right of a window type is not selected, the menu item will be unavailable when the active window is of this window type.
  • Always
If this radio button is selected, the menu item will always be available regardless of the active window type.

Context Menu

Insert Popup Insert a popup menu before the selected menu item
Insert Item Insert a menu item before the selected menu item.
Insert Separator Insert a separator before the selected menu item.
Cut Cut the selected menu item.
Copy Copy the selected menu item.
Paste Before It is available only when a menu option has been cut or copied. Paste the menu option before the selected menu item.
Paste After It is available only when a menu option has been cut or copied. Paste the menu option after the selected menu item.
Duplicate Duplicate the selected menu item.
Delete Delete the selected menu item.

The context menu When a Separator is selected

Insert Popup Insert a Popup menu before the selected separator.
Insert Item Insert a menu item before the selected separator.
Insert Separator Insert a separator before the selected separator.
Cut Cut the selected separator.
Copy Copy the selected separator.
Paste Before It is available only when a menu option has been cut or copied. Paste the menu option before the selected separator.
Paste After It is available only when a menu option has been cut or copied. Paste the menu option after the selected separator.
Duplicate Duplicate the selected separator.
Delete Delete the selected separator.

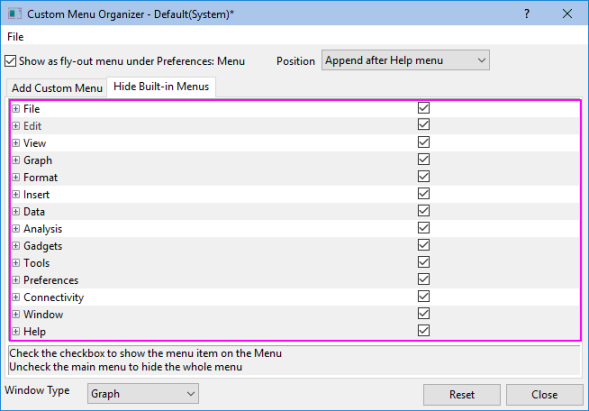

The Hide Built-in Menus Panel

This panel lists all of the built-in menus in tree view. You can use the check box to the right of each popup menu or menu item to specify whether to shown.

Hide Built-in Menu New.png

Dialog Box Controls and Context Menu on this panel

Dialog Box Controls

Window Type Different menus correspond different window types in Origin. A window type is selected in the Window Type drop-down list, the menus listed in the dialog will be automatically updated.
Reset Make all the check boxes selected.

Context menu

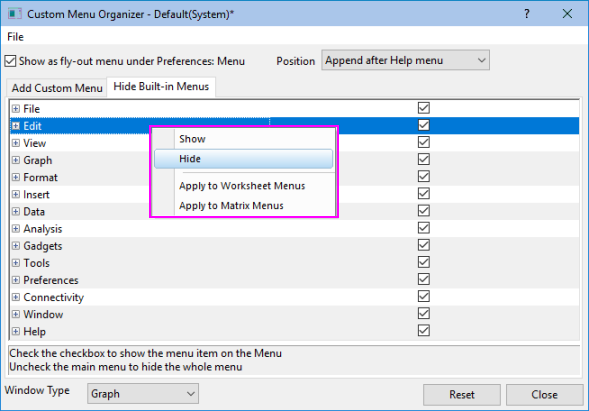

The context menu when a menu has been highlighted.

Custom Menu ContextMenu Hide New.png
Show Show the highlighted menu option. The corresponding check box will be selected accordingly.
Hide Hide the highlighted menu option. The corresponding check box will be unselected accordingly.
Apply to Worksheet Menus It is available only when Graph or Matrix is selected in the Window Type drop-down list. It applies the current setting (Show/Hide) of the highlighted menu option to the same menu when a worksheet is active.
Apply to Graph Menus It is available only when Workbook or Matrix is selected in the Window Type drop-down list. It applies the current setting (Show/Hide) of the highlighted menu option to the same menu when a graph is active.
Apply to Matrix Menus It is available only when Graph or Workbook is selected in the Window Type drop-down list. It applies the current setting (Show/Hide) of the highlighted menu option to the same menu when a matrix is active.

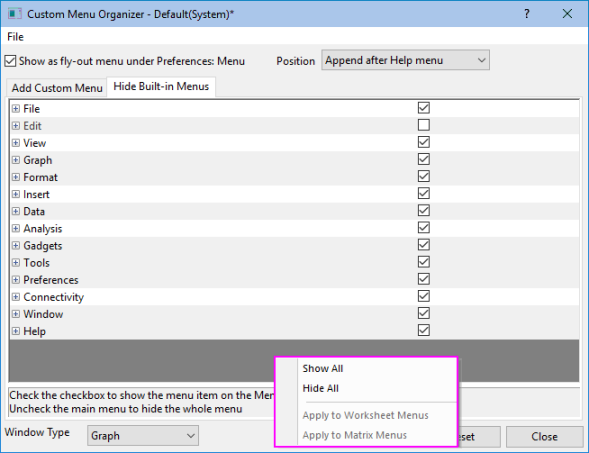

The context menu that shows when you right-click on the gray area of this panel.

Custom Menu ContextMenu Hide2 New.png
Show All Show all the menu options that are currently listed in the panel.
Hide All Hide all the menu options that are currently listed in the panel.
