2.1.10 addtool_rise_time(Pro)

1 Menu Information
2 Brief Information
3 Additional Information
4 Command Line Usage
5 X-Function Execution Options
6 Variables
7 Description
- 7.1 Details for Dialog Settings
8 Examples
9 Algorithm

Menu Information

Gadgets: Rise Time

Brief Information

Calculate rise or fall time of data plot within a region of interest

Additional Information

This feature is for OriginPro only, updated in 8.1 SR1.

Command Line Usage

addtool_rise_time trGUI.rectcolor:=21 trGUI.tool:=1 trGUI.method:=1 trGUI.output_to.reslog:=1 trGUI.display.risetime:=1;

X-Function Execution Options

Please refer to the page for additional option switches when accessing the x-function from script

Variables

Display
Name

Variable
Name

I/O
and
Type

Default
Value

Description

Settings

trGUI

Input

TreeNode

It can be used to customize the computation options.

Please see more details in the Description section.

Description

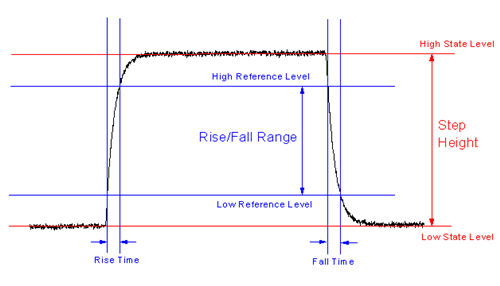

Rise time (or fall time) refers to the time required for a signal to change from a specified low value to a specified high value (or from a specified high value to a specified low value). Typically, these values are 10% and 90% of the step height. This function allows you to select an area on the graph intuitively with a rectangle that is added to the graph and calculate the rise time or fall time within the area.

In a step-like signal, a low state level and a high state level are calculated. Then the step height can be calculated by deducting the low state level from the high state level. Then a low reference level and a high reference level are calculated with two specified percentages of the step height. Finally, we can locate the rise time (or fall time) span and calculate the time required for the signal to rise from the low reference level to the high reference level (or drop from the high reference level to the high reference level). The relationships of these parameters are shown in the picture below.

Details for Dialog Settings

Settings(trGUI)

The trGUI tree specifies all setting options for the addtool_rise_time X-Function.

Syntax: trGUI.Treenode:=<value>

Example: trGUI.rectcolor:=23

Treenode	Label	Type	Default	Description
rectcolor	Color	Input int	21	Specify the color of the rectangle which is attached to the graph. With this rectangle, you can select an area on the graph to apply the rise time/fall time analysis. For the choice of the color, see the list of colors.
tool	Tool	Input int	0	Specify whether rise time or fall time should be computed. Options include: 0:Rise time Rise time analysis is being applied. The tool will calculate the time required for the signal to rise from the low reference level to the high reference level. 1:Fall time Fall time analysis is being applied. The tool will calculate the time required for the signal to drop from the high reference level to the low reference level.
method	Method	Input int	0	Specify the method applied to locate the rise time/fall time span. It is unavailable when both high state level and low state level are specified manually. Options include: 0:Linear Search Use the Linear Search method for the rise or fall time analysis. Please read the details in the Algorithm section below. 1:Histogram Use the Histogram method for the rise or fall time analysis. Please read the details in the Algorithm section below. 2:Largest Triangle Use the Largest Triangle method for the rise or fall time analysis. Please read the details in the Algorithm section below. When this method is selected, the High State Level and Low State Level cannot be specified manually.
input	Rise Range/Fall Range	Input TreeNode	<unassigned>	Specify the high/low state level and the ratio of the high/low reference level to the step high. See more details in the Rise Range/Fall Range Subtree table below.
output	Quantities	Input TreeNode	<unassigned>	Specify the quantities to output. See more details in the Quantities Subtree table below.
output_to	Output To	Input TreeNode	<unassigned>	Specify where to output the results. See more details in the Output To Subtree table below.
display	Display on Graph	Input TreeNode	<unassigned>	Specify the properties of the display of indicators, state levels, rise/fall time and rise/fall range on the graph. See more details in the Display on Graph Subtree table below.
adv	Advanced	Input TreeNode	<unassigned>	Advanced settings about the smoothing operation performed before the analysis and the parameters used in the searching method, noise level unit, and how to control results when graph scale changes. See more details in the Advanced Subtree table below.

Rise Range/Fall Range Subtree

Specify the high/low state level and the reference levels. If Rise time is selected in the Tool drop-down list, this subtree's label is Rise Range; otherwise, the label is Fall Range.

Syntax: trGUI.input.Treenode:=<value>

Example: trGUI.input.from:=20

Treenode	Label	Type	Default	Description
highVolt	High State Level	Input double	<unassigned>	Specify the high state level. If the Auto check box is checked, this value will be calculated by the specified method; otherwise, you can specify a value manually. If the Method is Largest Triangle, this variable is invisible in GUI and the value will be calculated automatically.
lowVolt	Low State Level	Input double	<unassigned>	Specify the low state level. If the Auto check box is checked, this value will be calculated by the specified method; otherwise, you can specify a value manually. If the Method is Largest Triangle, this variable is invisible in GUI and the value will be calculated automatically.
from	From (%) of Step Height	Input double	10	Specify a value n. Then the low reference level is at n% of the step height.
to	To (%) of Step Height	Input double	90	Specify a value m. Then the high reference level is at m% of the step height.

Quantities Subtree

Specify the quantities to output.

Syntax: trGUI.output.Treenode:=<value>

Example: trGUI.output.name:=0

Treenode	Label	Type	Default	Description
name	Dataset Name(name)	Input int	1	Specify whether to output the name of the source dataset. Options include: 0:unchecked Do not output the name of the source dataset. 1:checked Output the name of the source dataset.
VMin	Low State Level(VMin)	Input int	1	Specify whether to output the low state level. Options include: 0:unchecked Do not output the low state level. 1:checked Output the low state level.
VMax	High State Level(VMax)	Input int	1	Specify whether to output the high state level. Options include: 0:unchecked Do not output the high state level. 1:checked Output the high state level.
dV	Step Height(dV)	Input int	0	Specify whether to output the step height. Options include: 0:unchecked Do not output the step height. 1:checked Output the step height.
VrefMin	Low Reference Level(VrefMin)	Input int	1	Specify whether to output the low reference level. Options include: 0:unchecked Do not output the low reference level. 1:checked Output the low reference level.
VrefMax	High Reference Level(VrefMax)	Input int	1	Specify whether to output the high reference level. Options include: 0:unchecked Do not output the high reference level. 1:checked Output the high reference level.
dVref	Rise Range(dVref)/Fall Range(dVref)	Input int	0	Specify whether to output the rise range/fall range. If Rise Time is selected in the Tool drop-down list, the label is Rise Range(dVref); otherwise, the label is Fall Range(dVref). Options include: 0:unchecked Do not output the rise range/fall range. 1:checked Output the rise range/fall range.
T1	Time at Low Reference Level(T1)	Input int	1	Specify whether to output the time at low reference level. Options include: 0:unchecked Do not output the time at low reference level. 1:checked Output the time at low reference level.
T2	Time at High Reference Level(T2)	Inupt int	1	Specify whether to output the time at high reference level. Options include: 0:unchecked Do not output the time at high reference level. 1:checked Output the time at high reference level.
dT	Rise Time(dT)/Fall Time(dT)	Input int	1	Specify whether to output the rise time/fall time. If Rise Time is selected in the Tool drop-down list, the label is Rise Time(dT); otherwise, the label is Fall Time(dT). Options include: 0:unchecked Do not output the rise time/fall time. 1:checked Output the rise time/fall time.
Velocity	Rise/Fall Velocity (Velocity)	Input int	0	Specify whether to output the rise/fall velocity, which is computed by dVref/dT based on the smoothed data. Options include: 0:unchecked Do not output the rise/fall velocity. 1:checked Output the rise/fall velocity.
MaxVelocity	Maximum Rise/Fall Velocity (MaxVelocity)	Input int	0	Specify whether to output the rise/fall maximum velocity, which is maximum derivation value between T1 and T2. The maximum velocity is calculated based on the smoothed data. Options include: 0:unchecked Do not output the rise/fall maximum velocity. 1:checked Output the rise/fall maximum velocity.
e1	Noise Level Low(e1)	Input int	0	Specify whether to output the noise level at low level baseline region. Options include: 0:unchecked Do not output the noise level at low level baseline region. 1:checked Output the noise level at low level baseline region.
e2	Noise Level High(e2)	Input int	0	Specify whether to output the noise level at high level baseline region. Options include: 0:unchecked Do not output the noise level at high level baseline region. 1:checked Output the noise level at high level baseline region.

Output To Subtree

Specify where to output the results.

Syntax: trGUI.output_to.Treenode:=<value>

Example: trGUI.output_to.reslog:=1

Treenode	Label	Type	Default	Description
script	Script Window	Input int	1	Output the results to the Script Window. Options include: 0:unchecked Do not output the results to the Script Window. 1:checked Output the results to the Script Window.
reslog	Results Log	Input int	0	Output the results to the Results Log. Options include: 0:unchecked Do not output the results to the Results Log. 1:checked Output the results to the Results Log.
appendwks	Append to Worksheet	Input int	0	Append the output results to a worksheet. Options include: 0:unchecked Do not append the results to a worksheet. 1:checked Append the results to a worksheet.
wbkName	Result Worksheet Name	Input string	QkRiseTime	This is only available when the Append to Worksheet check box is selected. Use it to specify the name of worksheet to which the results are appended.

Display on Graph Subtree

Syntax: trGUI.display.Treenode:=<value>

Example: trGUI.display.risetime:=1

Treenode	Label	Type	Default	Description
indicator	Indicator	Input TreeNode	<unassigned>	Specify the settings for the indicator. See more details in the Indicator table below.
statelevel	State Level	Input int	1	Specify whether to show two horizontal lines for marking the low and high state level.
risetime	Rise Time/Fall Time	Input int	0	Specify whether to show two vertical lines through two indicators for marking the rise time/fall time. If Rise Time is selected in the Tool drop-down list, the label is Rise Time; otherwise, the label is Fall Time.
riserange	Rise Range/Fall Range	Input int	0	Specify whether to show two horizontal lines through two indicators for marking rise range/fall range. If Rise Time is selected in the Tool drop-down list, the label is Rise Range; otherwise, the label is Fall Range.

Indicator table

Syntax: trGUI.display.indicator.Treenode:=<value>

Example: trGUI.display.indicator.size:=11

Treenode	Label	Type	Default	Description
size	Size	Input int	10	Select the indicator size in points.
shape	Symbol	Input int	0	Select a symbol for the indicator. For more information about symbol, please refer to symbol tab of Plot Details.
edgecolor	Edge Color	Input int	0	Specify the edge color of the indicator which indicates the low/high reference level. For the choice of the color, see the list of colors.
fillcolor	Fill Color	Input int	1	Specify the color to fill the indicator which indicates the low/high reference level. For the choice of the color, see the list of colors.

Advanced Subtree

Advanced setting about smoothing before performing rise or fall time analysis.

Syntax: trGUI.adv.Treenode:=<value>

Example: trGUI.adv.pts:=60

Treenode	Label	Type	Default	Description
lnsearch	Low/High Level Determine	Input int	0	Only available when Method is set to Linear Search. Use it to specify how to find the low/high state level. Options include: 0:Average Consider the average of adjacent average smoothed data as low/high state level. Please read the Linear Search methods in the Algorithm section below. 1:Maximal Mean Consider the minimum/maximum of adjacent average smoothed data as low/high state level. Please read the Linear Search methods in the Algorithm section below.
pts	Smooth Points	Input int	50	Only available when Method is set to Linear Search. Use it to specify the number of points used in the smoothing that is performed to the whole dataset before the rise time/fall time analysis is executed. The value can be any integer between 1 and 200.
pts2	Smooth Points on Rising/Falling Area	Input int	1	Specify the number of points used in the smoothing that is applied on the rising/falling area. The value can be any integer between 1 and 50.
tol	Tolerance(Percentage)	Input double	0.03	Specify the tolerance for level values. Any level below this will be treated as noises. Available when Method is set to Linear Search or Histogram.
bins	Number of Bins	Input int	256	Only available when Method is set to Histogram. Use it to specify the number of bins used in the histogram method.
onrescale	When Graph Scale Changes	Input int	0	Specify the operation that will perform when the graph scale changes. Options include: Update Results When the graph scale changes, update the results. Invalidate Results When the graph scale changes, invalidate the results. You will see a cross on the graph when the results are invalidated.
noiseUnit	Noise Level Unit	Input int	0	Specify the unit of noise level. Options include: Absolute Value The noise level is an absolute value. Relative to Step Size The noise level is relative to the step height.

Examples

The following steps is for calculating the rise time in a step-like signal in a graph.

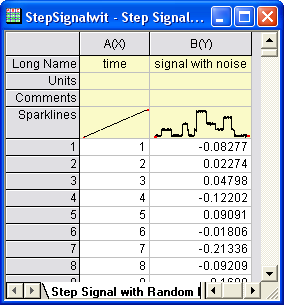

Create a new project and import the file <Origin Directory>\Samples\Signal Processing\Step Signal with Random Noise.dat.

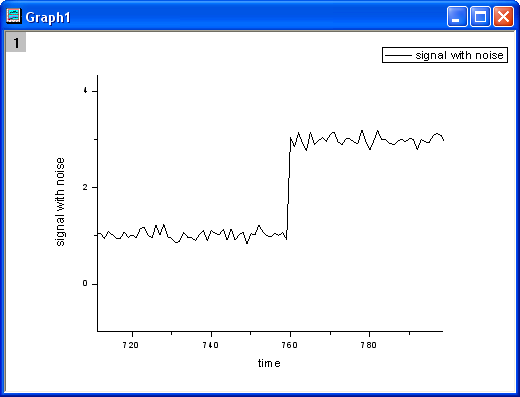

Highlight column B and click the Line button on the 2D Graphs toolbar to create a graph.
Click the Scale In button on the Tools bar, then zoom in the time range between 700 to 800 on the graph.
Select Gadgets: Rise Time... from the Origin menu (or run the script addtool_rise_time -d; in the command window) to open the dialog box of this X-Function.

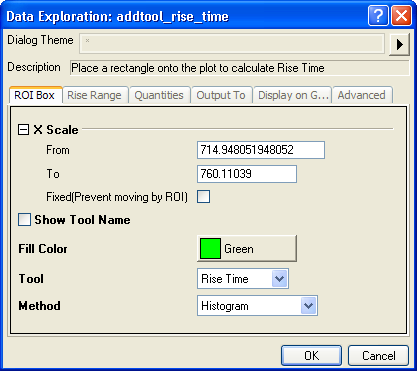

In the ROI Box tab, change the Color to green. Choose Rise Time with the Tool drop-down list, and then select Histogram with the Method drop-down list. Keep the default settings in the Rise Range tab and the Quantities tab as they are. In the Output To tab, make sure that only the Results Log check box is selected. In the Display on Graph tab and the Advanced tab, keep their default values.

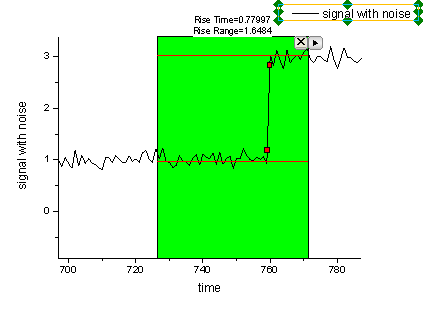

Click the OK button. A green rectangle is added to the graph. Move the rectangle horizontally to make sure that the signal step is inside the rectangle. (Note: You may get different results if the rectangle is not exactly the same as shown in the screenshot below.)

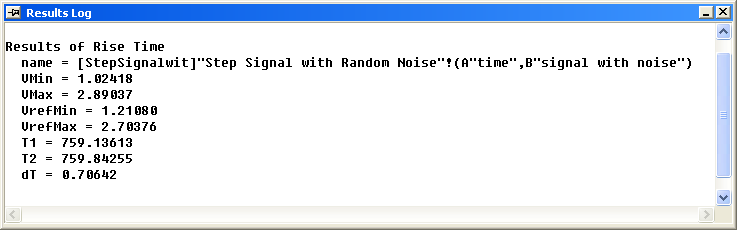

Click the button near the top-right corner of the rectangle to select New Output. The results should be output to the Results Log. (Note again that you may get different results if the rectangle is not exactly the same as shown in the screenshot above.)

Algorithm

This function provides three methods for calculating rise/fall time. They are Linear Search and Histogram.

Linear Search

Take rise time calculation for example. The time that takes for a signal to rise from dTol1% of the step height to dTol2% of the step height (here, 0<dTol1<dTol2<100) should be computed.

Steps:

Smoothing with the adjacent average method is appied to the raw data.
Locate the high state level and the low state level. Two ways to find low/high state levels are provided. The first one is the high state level and the low state level are calculated by the means of the first 1% data points and the last 1% data points, respectively (In the Advanced branch of GUI, Set Low/High Level Determine as Average.). The second one is that after adjacent averaging, the minimum and maximum are considered as low and high state levels respectively (In the Advanced branch of GUI, Set Low/High Level Determine as Maximal Mean.).
Linear search is performed to find two points, t1 and t2, from left to right such that:
$y(t1) > lowerbase + (upperbase-lowerbase)*dTol1\,$

$y(t2) < lowerbase + (upperbase-lowerbase)*dTol2\,$ .

here upperbase is the high state level while the lowerbase is the low state value.

Then the region between t1 and t2 is the rise area and $risetime = t2 - t1\,$ .

Histogram

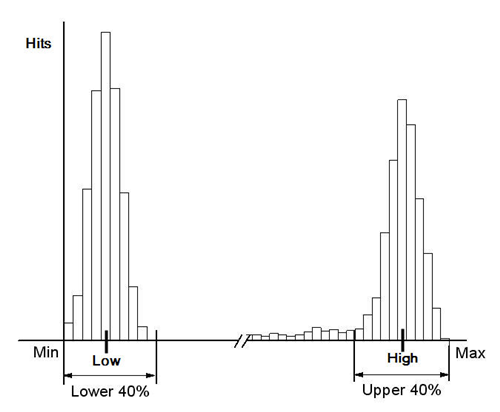

When this method is used, a state level histogram is created from the data. The limits of this histogram are set by the minimum and maximum values in the dataset and the number of bins is 256 by default. Then the number of data samples that fall into each bin is counted. The following picture is an example of the histogram. From this graph, the mean value of a bin ("Low" bin in the graph) with the maximum number of hits in the lower 40% bins is calculated as the low state level. Same calculation to a bin ("High" bin in the graph) in the upper 40% is used to calculate the high state level.

After locating the low state level and high state level by histogram, step 3 in the Linear Search method is used calculate the rise time or fall time.

Largest Triangle

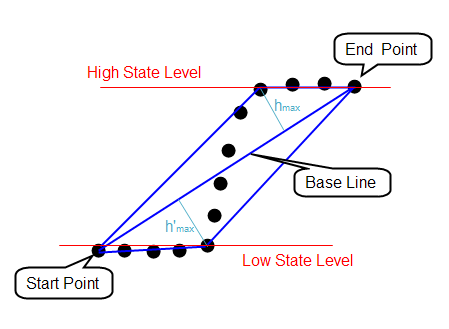

As illustrated in the below picture, a line that passes through start point and end point is constructed. This line is called the base line. Then points which are on the upper-left of the base line are searched. If the triangle constructed by the point and the base line has the largest area, the vertical ordinate of this point will be regarded the value of the high state level. Similar search is performed to the points on the lower-right of the base line to find the value of the low state level.
