- Purpose
This app helps to synchronize signals recorded with different sampling rates using a user-specified sampling frequency.
- Installation

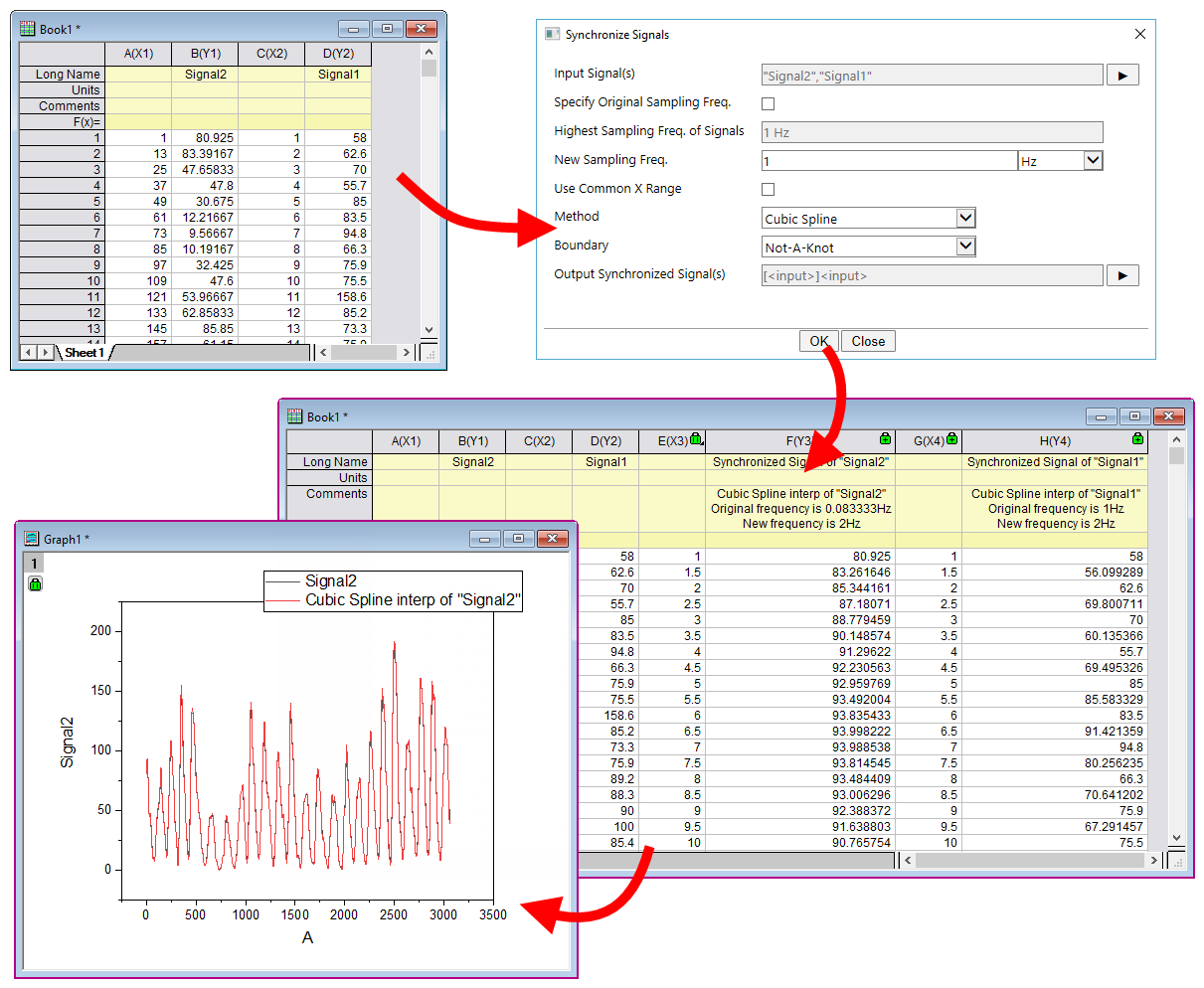

Download the file "Synchronize Signals.opx", and then drag-and-drop onto the Origin workspace. An icon will appear in the Apps gallery window.
- Operation
- Click the app icon from Apps gallery window.
- Select column(s) from worksheets as Input Signal(s).
- You can specify original sampling frequency of the input signal, or use the detected (highest) sampling frequency as original sampling frequency for the input signal.
- Specify new sampling frequency for the output.
- If you want the X range of the output for all signals to be the same, check Use Common X Range checkbox.
- Select the method for interpolation for synchronization.
- Select where to output the result and click OK button to synchronize signals.
- Dialog Settings:
- Input Signal(s): Specify data of signal(s).
- Specify Original Sampling Freq.: If you know the original sampling frequency of the signal, you can check it.
- Original Sampling Freq.: If Specify Original Sampling Freq. is checked, this is shown for typing the original sampling frequency with unit.
- (Highest) Sampling Freq. of Signal(s): If only one input signal, it shows the detected sampling frequency of this signal. If more than one signals, the highest sampling frequency of all signals are shown.
- New Sampling Freq.: Specify the new sampling frequency for synchronization, together by choosing unit.
- Use Common X Range: If checked, use the common X range of the input signals.
- Method: Please refer to Method Option.
- Output Synchronized Signal(s): Where to output the results.
- OK and Close: Click OK to generate the synchronized signal, and Close to close the dialog without doing anything.
