Display
Name
|
Variable
Name
|
I/O
and
Type
|
Default
Value
|
Description
|
| Row Fill
|
rowFill
|
Input
int
|
18
|
Specify the color filled in the rows of table header in the report sheet.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as rowFill:=color(240,208,0)
|
| Font Color
|
rowFontColor
|
Input
int
|
1
|
Specify the color of the font in the rows of table header in the report sheet.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as rowFontColor:=color(240,208,0)
|
| Bold
|
rowBold
|
Input
int
|
0
|
Specify whether set the font to bold in the rows of table header in the report sheet.
Option list:
|
| Column Fill
|
colFill
|
Input
int
|
18
|
Specify the color filled in the columns of table header in the report sheet.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as colFill:=color(240,208,0)
|
| Font Color
|
colFontColor
|
Input
int
|
1
|
Specify the color of the font in the columns of table header in the report sheet.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as colFontColor:=color(240,208,0)
|
| Bold
|
colBold
|
Input
int
|
1
|
Specify whether set the font to bold in the columns of table header in the report sheet.
Option list:
|
| Fill to 1st Cell
|
colFillTo1
|
Input
int
|
1
|
Specify whether fill color to the first cell of table header in the report sheet.
Option list:
|
| Frame
|
tlfFrame
|
Input
int
|
2
|
Control the frame displaying for the table lines.
Option list:
- 0=no: No Frame
- 1=full: Full Frame
- 2=tb: Top&Bottom Frame
- 3=lr: Left&Right Frame
|
| Color
|
tlfColor
|
Input
int
|
24
|
Specify the color of the frame in the report table.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as tlfColor:=color(240,208,0)
|
| Thickness
|
tlfThickness
|
Input
double
|
2
|
Specify the thickness of the frame in the report table.
|
| Grids
|
tlgGrids
|
Input
int
|
2
|
Control the grid line displaying in the report table.
Option list:
- 0=no:No Grid
- 1=all:All Grids
- 2=row:Row Grids Only
- 3=col:Column Grids Only
|
| Color
|
tlgColor
|
Input
int
|
30593746
|
Specify the color of the grid line in the report table.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as tlgColor:=color(240,208,0)
|
| Thickness
|
tlgThickness
|
Input
double
|
<auto>
|
Specify the thickness of the grid line in the report table.
|
| Separator
|
tlsSeparator
|
Input
int
|
2
|
Control the separator line displaying in the report table.
Option list:
- 0=header:Header Separator
- 1=colHeader:Column Header
- 2=rowGroup:Group Separator
|
| Color
|
tlsColor
|
Input
int
|
24
|
Specify the color of the separator line in the report table.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as tlsColor:=color(240,208,0)
|
| Thickness
|
tlsThickness
|
Input
double
|
1
|
Specify the thickness of the separator line in the report table.
|
| Color
|
ttFontColor
|
Input
int
|
24
|
Specify the font color of table titles.
Color may be an index into Origin's Color List : 1 (Black), 2 (Red), up to 24 (Dark Gray) or up to 40 if you have defined the 16 Custom Colors in the Color dialog. Additionally, you can use the color function to assign any RGB color, as ttFontColor:=color(240,208,0)
|
| Bold
|
ttBold
|
Input
int
|
1
|
Specify whether set the font of table titles to bold..
Option list:
|
| Italic
|
ttItalic
|
Input
int
|
0
|
Specify whether set the font of table titles to italic..
Option list:
|
| Graph Width
|
graphWidth
|
Input
int
|
300
|
Specify the graph width size in the report sheet.
|
| Keep Aspect Ratio
|
graphKeepRatio
|
Input
int
|
0
|
Specify the graph in the report sheet whether keep aspect ratio
Option list:
|
| Gap Between Branches
|
gapBetBranch
|
Input
int
|
100
|
Specify the gap size between each branch. For example, gap size between table and the graph.
|
| Grids for Report Branches
|
reportGrids
|
Input
int
|
0
|
Grids for Report Branches
Specify whether to show the grid lines for the report branches.
Option list:
|

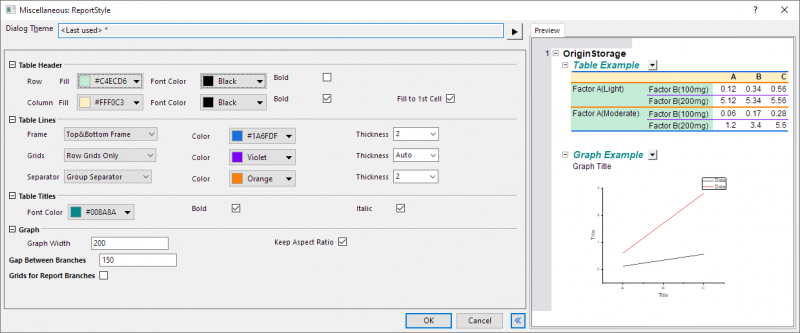

This X-Function is used to customize the report sheet style. You also can control it by the dialog and preview the style in the Preview window.
