9.6.2 The (Plot Details) Data Tab
The Data tab is available when:
- The source plot is a Box chart displaying the binned data. (In the Box tab, select Data, Box + Data Overlap, Box(Right) + Data(Left),Box(Left) + Data(Right), Bar + Data Overlap, Bar(Right) + Data(Left), Bar(Left) + Data(Right), Half Box(Right) + Data(Left) or Half Box(Left + Data(Right) under the Type drop-down List.)
- The source plot is a Histogram, a Column Scatter plot, a Violin plot or a Beeswarm plot.
Data tab for Box Chart, Column Scatter, Violin Plot or Beeswarm Plot
This group of settings is only available when the source plot is a box chart displaying the binned data, a column scatter plot or a beeswarm plot.
Select Dots, Bin Bars, or Dots + Bin Bars from the Type drop-down list.
- The Dots option shows the individual binned data points.
- The Bin Bars shows the data in histogram-like style, with bars as the specified bin size.
When Type is Dots, these six options are available: Random, Jitter, Swarm, Center, Hex and Square.
When Type is Dots+Bin Bars, these three options are available: Random, Jitter and Swarm .
The random offset in X direction is determined according to a normal distribution.
Select Jitter to add random noise in X direction to scatter out the data point series. This produces the random jitter, while in the Bins Alignment group, you could produce and customize the regular jitter.
Select Swarm is similar as Jitter, it only ignores Bin settings.
Single Block Barplot
When Type = Bin Bars or Dots + Bin Bars, Single Block Barplot option is available. Select the Single Block Barplot check box can remove the lines between bins.
(Bins are shown here left-aligned.)

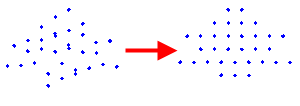

Snap Points to Bin
Select the Snap Points to Bin check box to align the binned data points horizontally in the bins. Note, if Type is Dots, only when Random is set as Arrange Points, this option will be available.
Extend Data Points
When shows the data point or quartile lines, it will extend these data sticks or short lines within distribution curves or the percentage of box width.
When Curve Type is not None and Show Symmetric Distribution Curve is selected in Distribution tab, <Auto> means extend data points within distribution curve. Otherwise, <Auto> means 100% of box width.
And when Curve Type is not None and Show Symmetric Distribution Curve is selected in Distribution tab, <Auto> will only apply the rule width distribution curve, and only apply to elements on the same side of distribution curve. Elements on the other side will not extend.
Available for Histogram only:
- Count: Y axis displays bin counts.
- Relative Frequency: Y axis displays individual bin counts divided by total count.
- Density: Y axis displays relative frequency (no. of observations in a given bin) divided by bin width.
To modify axis scale, see The Axis Dialog Scale Tab controls.
Binning Scale Type
With the Type drop-down list, you can select one of three scale types to calculate and divide the bins: Linear, Log10, Log2 and Ln.
If you selected Log10/Log2/Ln to divide the bins, the X axis scale of histogram will be set to log10/log2/ln.
Edit the bin limits by clearing the Automatic Binning check box and editing the associated text boxes, Bin Size, Number of Bins, Beginning, and End.
Number of Bins = (Beginnning-End) / Bin Size
The radio box under the Automatic Binning check box is used to specify how to divide the bins. When you select By Increment, you can enter a fixed size for bins in the Bin Size text box. When you select By Intervals, the Number of Bins text box will be editable.
Bin Height (0-100)
Set the height of each bin. This text box is only available when the source plot is a box chart displaying the binned data. Since the bins are displayed on their sides, this value corresponds to the width of the data point display.
This group of settings is only available when the source plot is a box chart displaying the binned data.
Data Width (%)
Selected or typed a factor to control the data width in the combo box. This is a percent and only values from 0 to 100 are acceptable.
- <auto> means following Box Width in the Box tab.
- 0 means data points align in a line.
- This control group can be also used for regular jitter (i.e. evenly distribute points in X direction) when Jitter Points is unchecked. To adjust the data width for random jitter, you have to make sure the Jitter Points box is checked in the Type group.
Select Add Distribution Curves to add the distribution curves data to the bin worksheet. When you click the Go button, a Bin workbook containing the computed quantities of bins will be created, and the Plot Details dialog will be closed.
